Sloan ESD-200 Installaton - Manual (Page 4)

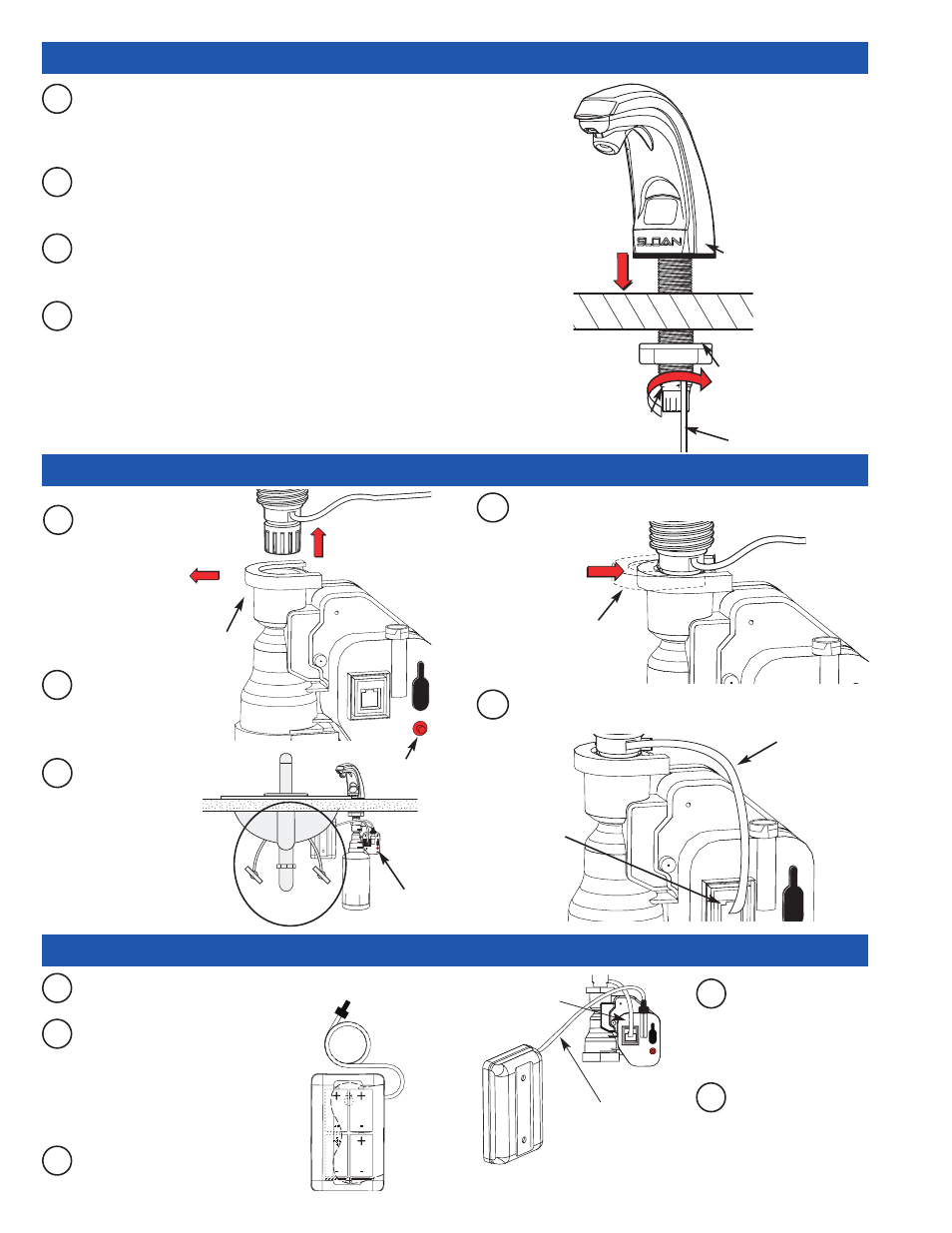

1 - Install Spout
2 - Attach Motor Assembly
A Slide Rubber Gasket onto Brass Shank making certain that
hole in Gasket is positioned over Spring Pin in Base of Spout
(where applicable).
3 - Attach Battery Pack (Models ESD-250 & ESD-350 Only)
A Slide C-clip to open position.
D Guide Sensor Cord through Flange Nut. Screw Flange Nut onto
Brass Shank and tighten.
C Position Spout to direct soap into sink.
B Guide Brass Shank and Sensor Cord through hole in counter.
RUBBER
GASKET
BRASS
SHANK
FLANGE NUT
SENSOR CORD
MOTOR
ASSEMBLY
C-CLIP
B Place motor assembly at
bottom of shank.
C Rotate motor
housing to avoid
lavatory bottom and
existing plumbing.
Position motor
housing so red reset
button is accessible.
D Push the motor assembly up into place and secure by pushing the
C-clip closed.
E Plug sensor connector into motor assembly and slide rubber seal
into place.
SENSOR
CORD
MOTOR
ASSEMBLY
C-CLIP
BATTERY PACK
(CUTAWAY VIEW)
BATTERY PACK CORD
A Place battery pack in a convenient
location ensuring easy access.
B Secure to wall with screws and anchors.
Note: The battery pack may be
mounted using one screw and anchor
with the top slot facilitating easy
removal for battery replacement. A
foam gasket is applied to the back to
seal screw holes.
C Install 4 alkaline D-size batteries.
D Connect the power cord
from the battery pack by
inserting then screwing
clockwise into inlet on
top of motor assembly.
4
RESET
BUTTON
RESET
BUTTON
E Wall clip set may be
used to hold the power
cord against the wall.
SENSOR
CONNECTOR
MOTOR
ASSEMBLY
CORD
