INSTALLATION
17

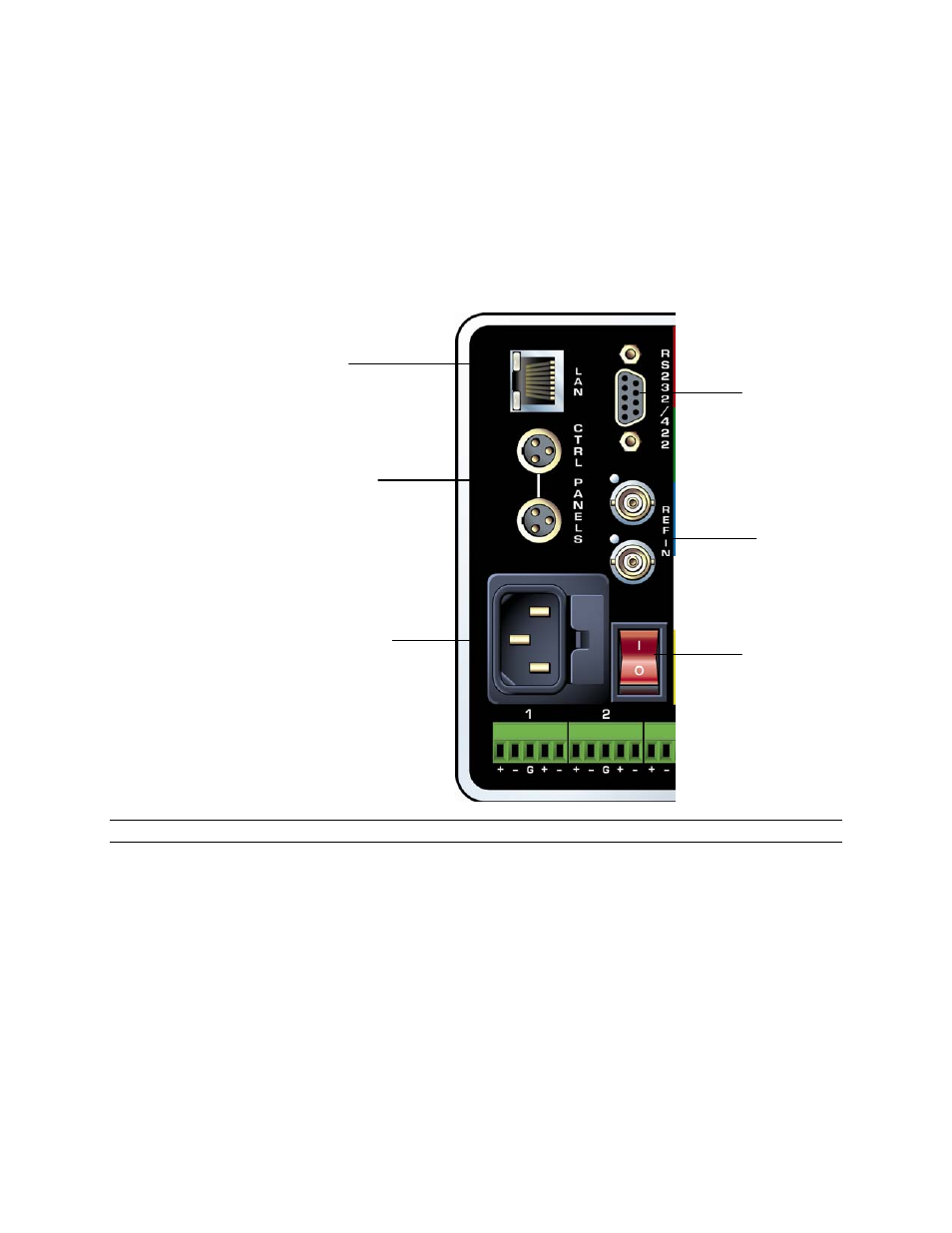

Connecting Peripherals
Control panels, sync inputs, and power are all connected to the rear of the frame. The peripherals
area may vary depending on the model size and type.
Sierra PRO routing switchers offer redundant power supplies but must be specified prior to order.
Note:
Rear Panels vary according to model. See back panel for precise detail.
Video Sync
Referencing
Inputs
RS-232 and RS-
422 control
connector
Control Panel
Connectors
Power Switch
Male Power
Connection
And Fuses
Ethernet
Connector
