System Examples
The Eclipse system can be installed on a bin or
dispenser. The CP unit can be installed on either a
single circuit condenser, a two circuit condenser or
onto a coil in a separate rack condenser.
Separate coils must be:
·
Scotsman approved
·
The correct size and capacity
·
New or not have been part of a system that
used mineral oil.
Eclipse
ä 600, 800, 1000
April 2002
Page 9

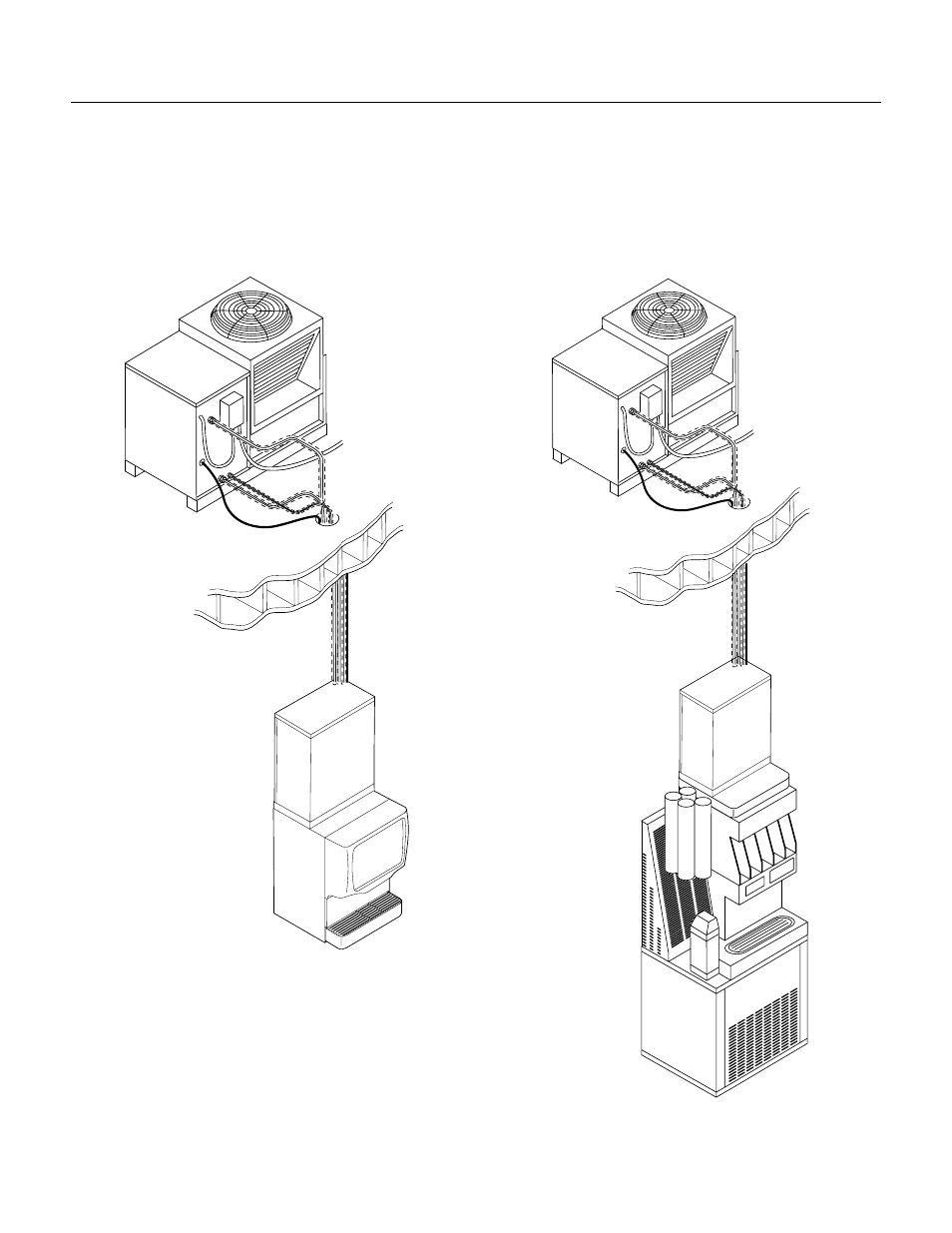

Single Circuit System on ABS Dispenser
Single Circuit System
