Tight Installation Access
Some installations will have very small access to
the sides and top of the ice making section. In
those cases, alternative methods are available for
front access to certain components.
Top Panel
Removing the top panel allows access over the top
of the freezing compartment wall through the notch
at the top. The water distributors may be accessed
through this area.
Inspection Cover
Removing the inspection cover at the lower end of
the freezing compartment allows access to the
cascading shield, water trough (when used), ice
sensors and cube deflector.
To remove:
Remove the front panel.
Remove the two thumb screws and the cover.
Remove the single thumb screw holding the
cascading shield to the cabinet.
The cascading shield may be moved out of the
way to inspect/adjust/clean the water trough and
ice sensors.
Eclipse
ä 600, 800, 1000
April 2002
Page 37

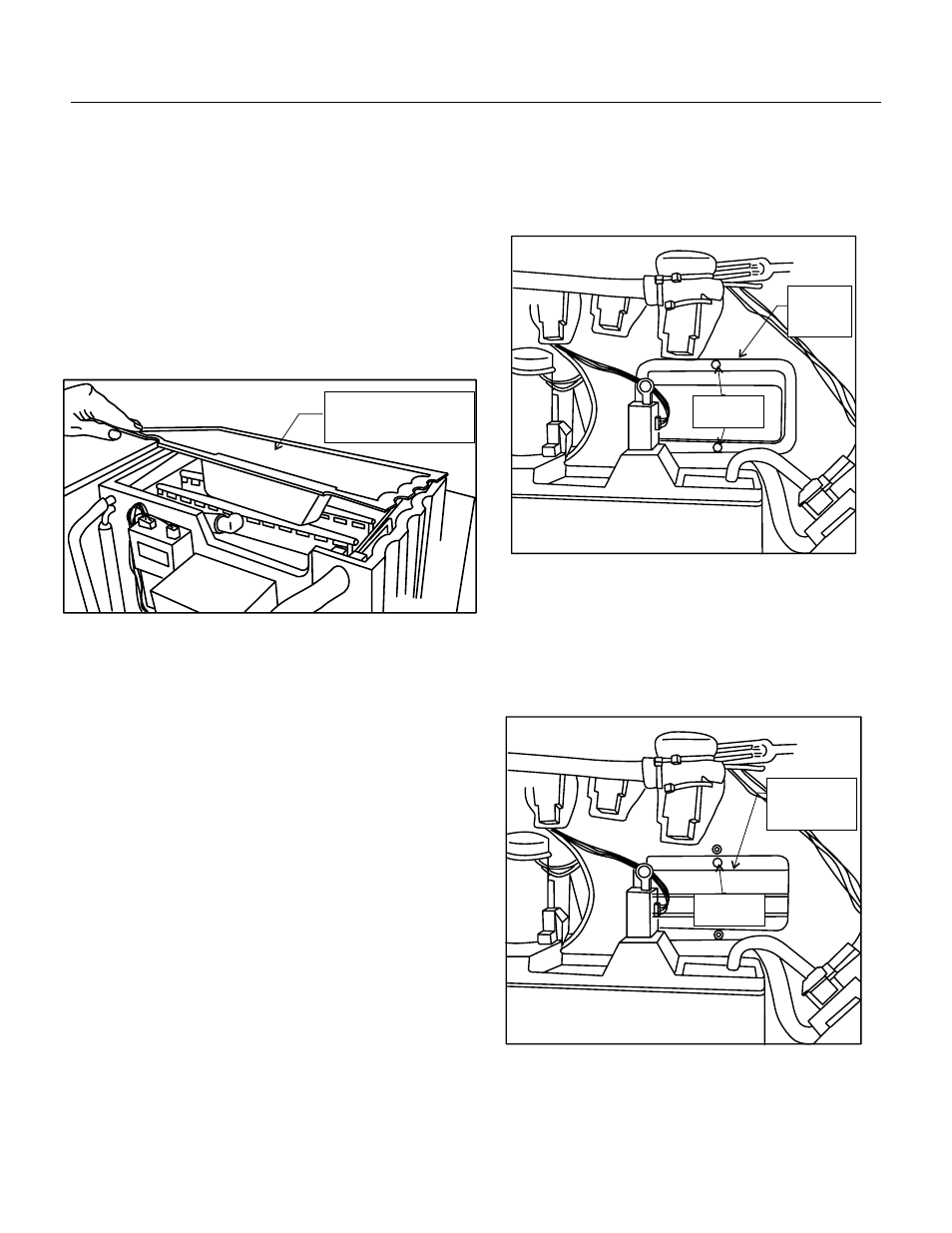

Remove Top Panel
and Lift Cover Remove
Access
Cover
Cascading
Shield
Remove
