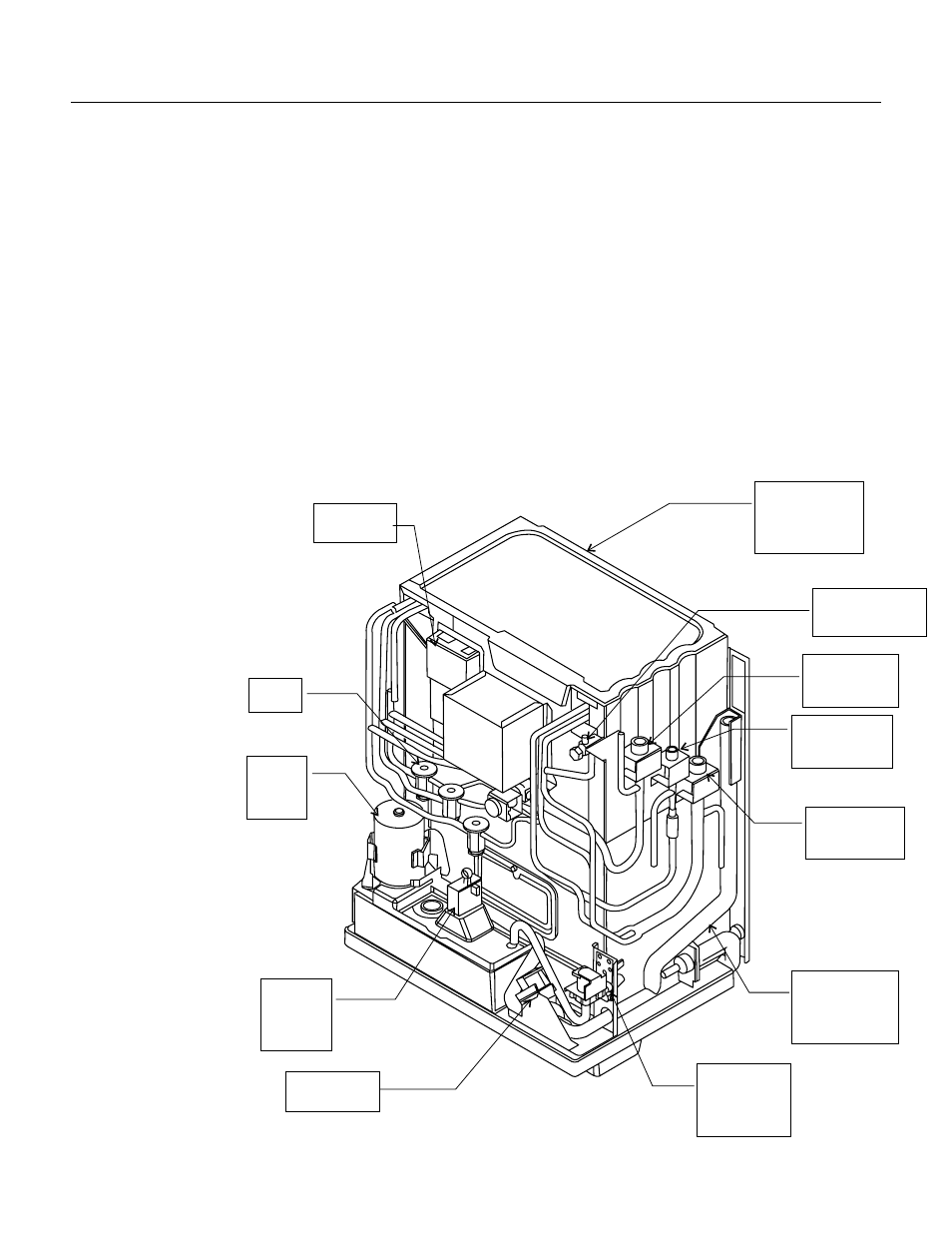

Ice Making Section
The CME686 and CME810 are similar in layout.
They differ in controller, float stem and vapor inlet
valve. Both have three plates and three
thermostatic expansion valves.
Major Components:
TXVs - one per plate, same for all
Water Pump - same for both models
Water Level Sensor - signals water level to the
controller
Controller - operates both the ice machine section
and the compressor unit.
Drain Valve - opens to allow pump to drain
reservoir
Water Inlet Valve - 1.25 GPM solenoid valve that
opens to fill the reservoir
Low Side Access Valve - allows connection for
diagnosis of ice machine
section refrigeration
operation. Not for recovery.
Liquid, Vapor and Suction
Connections - where the
pre-charged tubing kits
connect to.
Drain Tube - internal vent
eliminates need for
external vent
Eclipse
ä 600, 800, 1000
April 2002
Page 14
Water
Pump
Water
Level
Sensor
Drain Valve
Water Inlet
Solenoid
Valve
Freezing
Compartment
Cover
Low Side
Access Valve
Vapor
Connection
Liquid
Connection
Suction
Connection
Drain Tube
with Internal
Vent
TXVs
Controller
