Symptom: Ice jams up
Likely Cause: End Defl ector Out of Position
The End Defl ector
must be in place as
shown here. The End
Defl ector routes the
ice towards the cube
chute outlet AND holds
the cube defl ector so it
does not move.
If the thumb screw is
missing the End De-
fl ector can be out of
place or it can be put
on wrong.
End
Defl ector

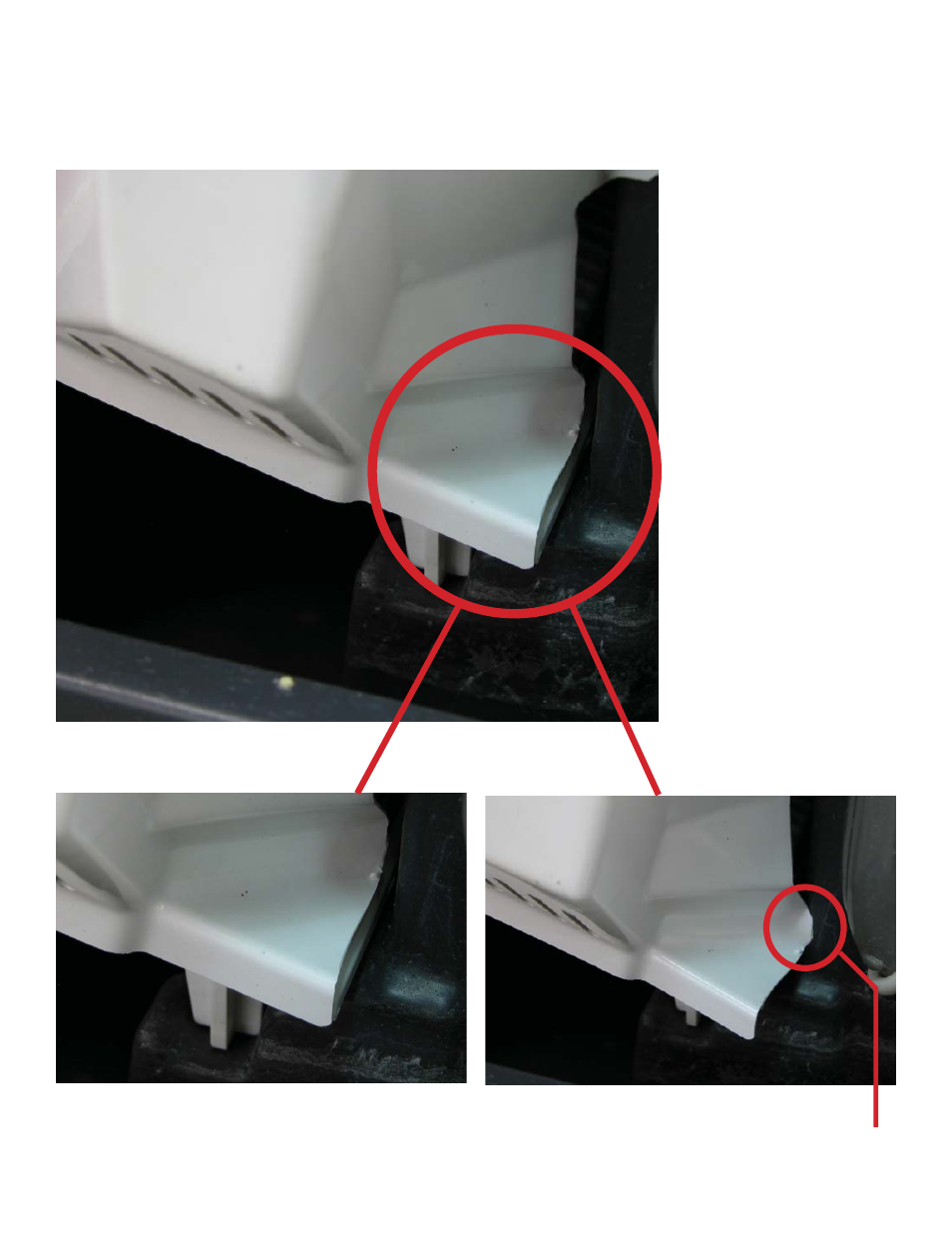

Correct, End Defl ector positioned to route ice to
chute and to hold cube defl ector in place. Incorrect
Edge of End Defl ector
caught on sump wall
