Water and Drain
The ice making section requires an adequate
potable water supply and a gravity drain.
Determine how the water supply and drain will be
connected to the ice making section.
·
If access is available behind the unit, route the
drain and water supply in from the back.
·
If the unit is to be flush mounted to the back of
the dispenser and tight against the wall, the
water supply must be routed from the top right
corner and the drain out either the left or right
back corners.
In some tight situations it will be necessary to
assemble the ice making section to the dispenser
or bin and install the water and drain connections
before placing the system in its installed position. A
loop of water supply tubing will allow movement of
the system.
In other tight situations the unit should have its
water and drain tubing connected and stubbed out
before placing on the dispenser or bin.
The drain fitting is adaptable to drain connections
to the left, right and back.
The unit is shipped ready to drain left. The drain
hose to drain right is in a bag packed near the
water pump.
Eclipse
ä 600, 800, 1000
April 2002
Page 20

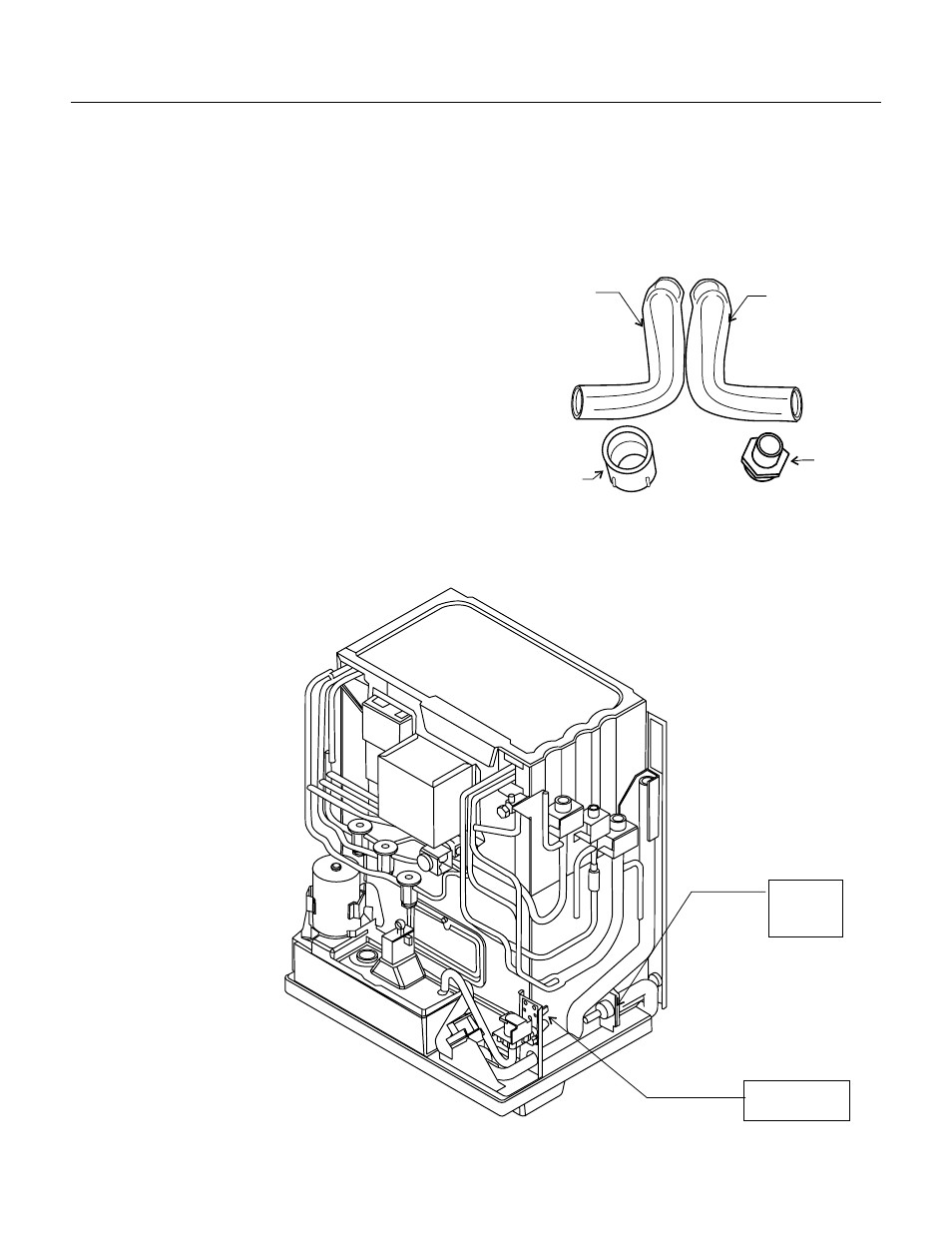

Included Drain Fittings
Hose to Drain
Right
Hose to Drain
Left
PVC Adapter
Barbed
Adapter
Drain
Fitting
Water Inlet
