8

CAST IRON STOVE AND BURNER SYSTEM

105501

CDVBN(A) AND CDVBP(A)

LOCATION OF VENT
TERMINATION

When locating vent termination, it is impor-
tant to observe the minimum clearances
shown in Figure 18, page 9.

*Check with local codes or with the current
CAN/CGA B149[.1 or .2] Installation Codes
for Canada or the USA Installations follow
the current National Fuel Gas Code, ANS
Z223.1
, also known as NFPA 54.

These models are approved for use with
Simpson Dura-Vent 6

5

/

8

" direct-vent pipe

components and terminations as well as
both flex and rigid Comfort Glow vent com-
ponents.

Your stove with burner system is approved
to be vented either through the side wall, or
vertically using the following guidelines:

• Only use Comfort Glow or Simpson Dura-

Vent GS venting components or kits spe-
cifically approved for this stove and
burner system.

• Minimum clearance between vent pipes

and combustible materials is 1" (25 mm),
except where stated otherwise.

GENERAL VENTING

INSTALLING REAR COVER

1.

Lift rear panel over vent pipe connec-
tion on burner system. Rear cover will
rest on the bottom ledge of the stove
body.

2.

Using screws provided, attach rear
cover to back of stove body. See Fig-
ure 17.

IMPORTANT:

This rear cover must be

securely in place before venting pipes
are installed.

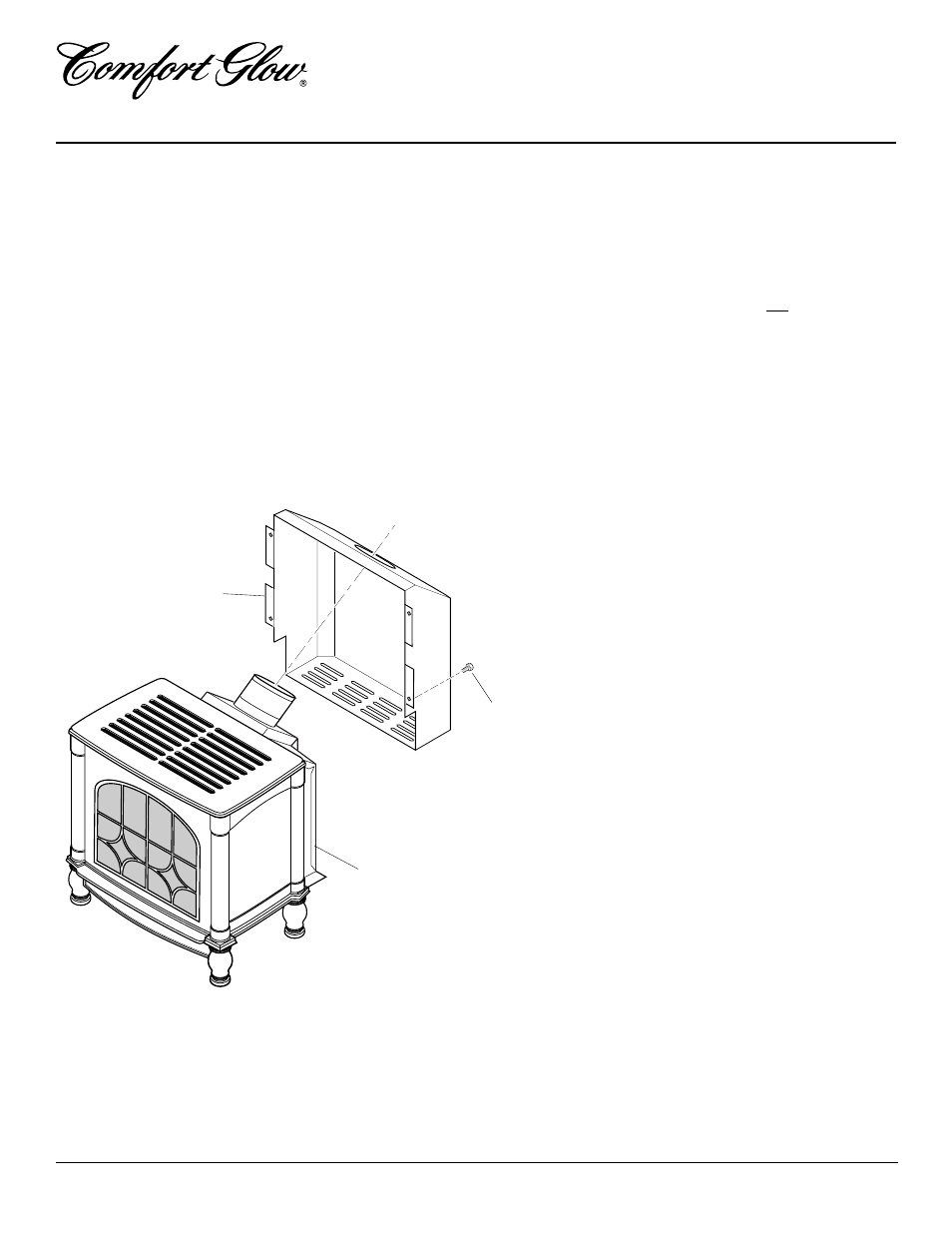

Figure 17 - Installing Rear Cover

CAST IRON STOVE
AND DIRECT-VENT
BURNER SYSTEM
ASSEMBLY

Continued

Rear
Cover

Firebox
Installed In Cast
Iron Stove Body

Screw

• Do not recess venting terminals into a

wall or siding.

• Install horizontal venting with a 1/4" rise for

every 12" of run toward the termination.

• You may paint the vent terminal with

450ºF (232ºC) heat-resistant paint to co-
ordinate with the exterior finish.

• There must not be any obstruction such

as bushes, garden sheds, fences, decks,
or utility buildings within 24" from the
front of the termination cap.

• Do not locate termination cap where ex-

cessive snow or ice build up may occur.
Be sure to clear vent termination area af-
ter snow falls to prevent accidental block-
age of venting system. When using snow
blowers, do not direct snow towards vent
termination area.

• You must maintain minimum wall and

ceiling clearances shown in Figures 3 and
4, pages 4 and 5.
