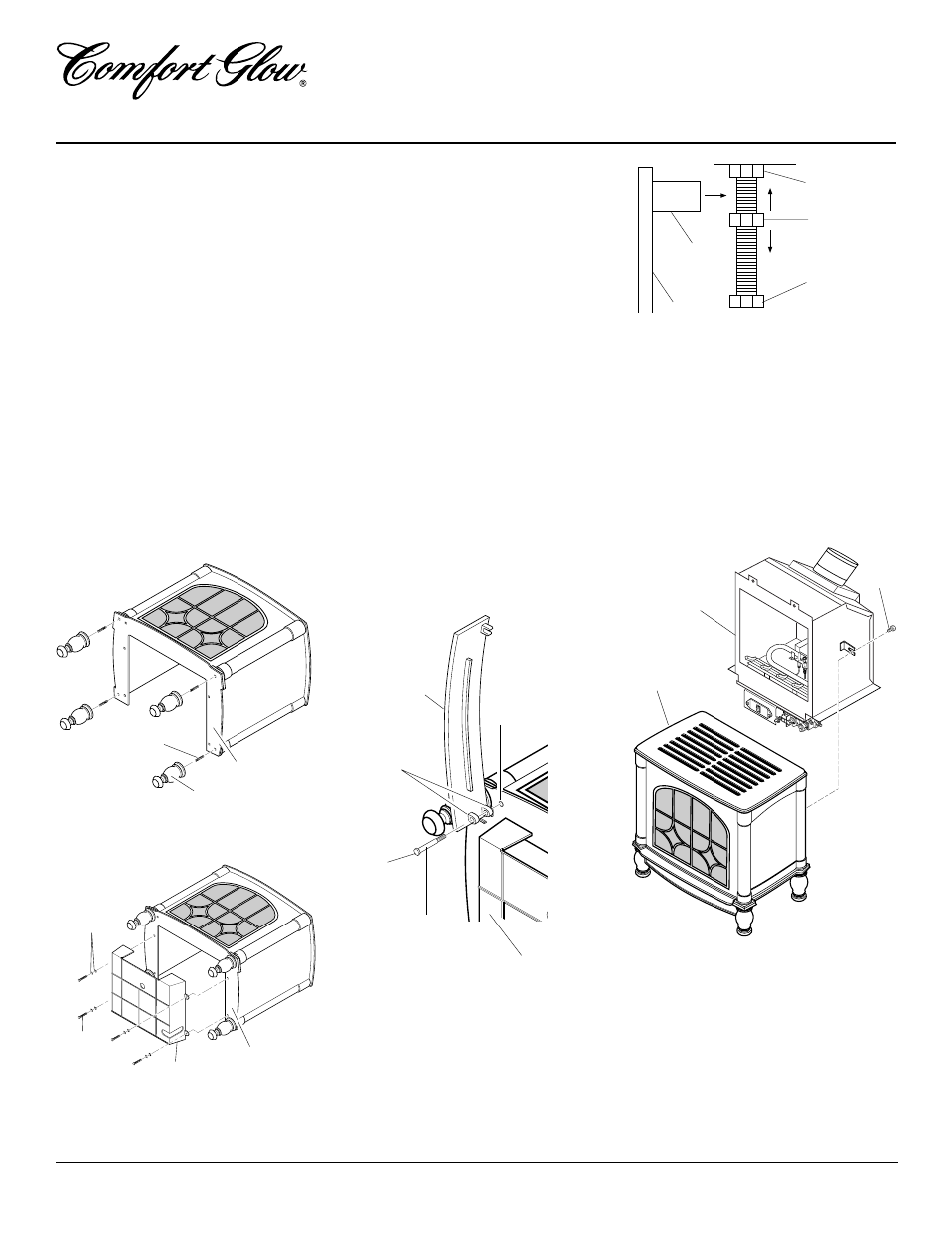

Figure 12 - Attaching Stove Door
Step
Bolt
Door
Hinge
Threaded
Hole
Stove
Door
Stove Bottom
Bolt
Shoulder
Adjusting Nut
Bolt Stop
Catch Bolt
Door Claw
Door
Figure 13 - Catch Bolt and Door Claw
Orientation
10. Attach stove door by inserting step bolt
through door hinge pivot hole and into
threaded hole in stove body (see Figure
9, page 5 and Figure 10). Use an adjust-
able wrench or a 12mm socket to fasten
step bolt. Tighten step bolt until snug.
Make sure door moves freely.
11. Install door catch bolt (M8 x 1.25-
55mm with two M8 hex nuts) into
threaded hole on stove body (see Fig-
ure 9, page 5). Use an adjustable
wrench or a 12mm socket. The catch
bolt has two hex nuts attached to it
(see Figure 13). The top nut is a bolt
stop and the bottom nut is for door
leveling adjustment.
12. Check general catch bolt alignment
with door claw. Make final adjustment
and door leveling after stove is in nor-
mal standing position.
13. Carefully lift stove back up on its four
attached legs.
14. Set top grate into stove top.
INSTALLING DIRECT-VENT
BURNER SYSTEM INTO
STOVE BODY
1. Carefully lift burner system and place
into stove body from the rear of stove.
2. Using screws provided, attach burner
system to back of stove.
Figure 14 - Installing Burner System Into
Cast Iron Stove Body
LO H I P IL O T OFF ON
Cast Iron
Stove Body
Screw
Burner
System
8. Fasten each leg to stove with four (4)
M8 x 1.25 - 20mm bolts. Use a flat
washer and lock washer with each bolt.
Tighten bolts into threaded holes on
stove body (see Figure 9, page 5 and
Figure 10). Use an adjustable wrench
or a 12mm socket.
9. Fasten stove bottom to stove with four
(4) M6 x 1 - 25mm bolts. Use a flat
washer and lock washer with each bolt.
Tighten bolts into threaded holes on
stove body (see Figure 9, page 5 and
Figure 10). Use an adjustable wrench
or a 10mm socket.
Figure 10 - Attaching Stove Legs
Bottom Of
Stove Unit
Leg
Bolt
Figure 11 - Attaching Stove Bottom
Bottom Of
Stove Unit
Bolt
Washers
Stove Bottom
