17 105501
OWNER’S MANUAL

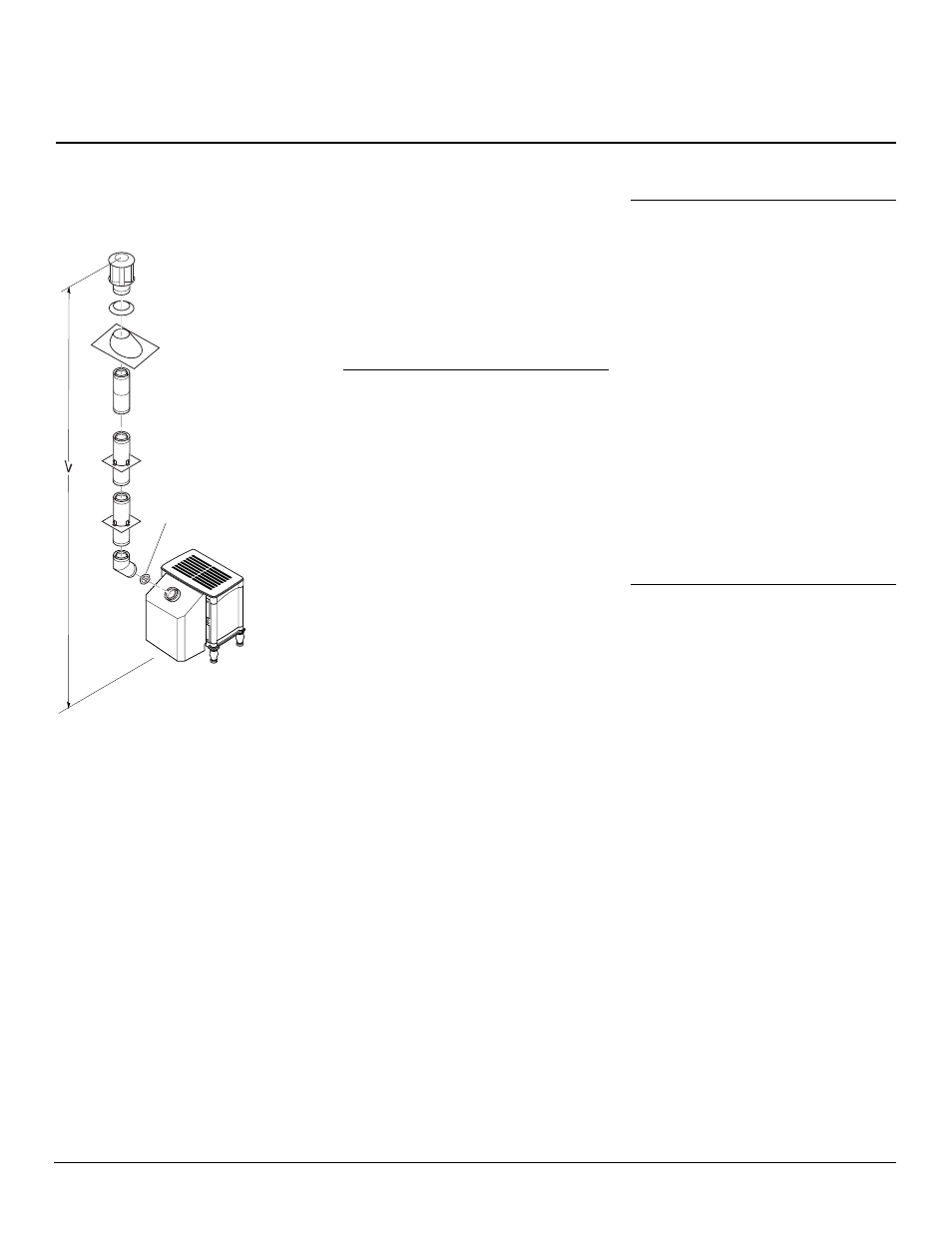

Figure 37 - Vertical Rigid Venting
Configuration With No Horizontal Run
VENTING
INSTALLATION
Continued
Vertical Venting
V = 40' max.
RVKBK Kit Shown
Note: Install
restrictor into 4"
collar of burner
system as shown.
HIGH ALTITUDE
INSTALLATION
Your Comfort Glow cast iron stove and
direct-vent burner system has been AGA
tested and approved for elevations from
0-2000 feet and CGA certified for eleva-
tions from 0-4500 feet.
When installing this stove at an elevation
above 2000 feet (in the USA), you may need
to decrease the input rating by changing the
existing burner orifice to a smaller size.
Reduce input 4% for each 1000 feet above
sea level. Check with your local gas com-
pany for proper orifice size identification.
When installing this stove at an elevation
above 4500 feet (in Canada), check with
local authorities.
PARTS LISTS FOR VENTING
KITS AND COMPONENTS
Comfort Glow Rigid Venting
Number Description
CGFVKBK Ground Floor Rigid Vent Kit
Includes: 7" x 60
°
Elbow, Ex-
tended 7" Adjustable Pipe (7-
12"), Horizontal Termination,
Wall Thimble and 14 Screws
CBVKBK Basement Rigid Vent Kit
Includes: 7" x 30
°
Elbow, 7" x 4'
Pipe, 7" x 90
°
Elbow, 7" Adjust-
able Pipe (7-12"), Wall Thimble,
Horizontal Termination, RTV
Silicone and 20 Screws
CSVKBK Snorkel Rigid Vent Kit
Includes: 7" x 30
°
Elbow, 7" x 4'
Pipe, 7" x 90
°
Elbow, 7" Adjust-
able Pipe (7-12"), Wall Thimble,
36" Snorkel Termination, RTV
Silicone and 28 Screws
CRVKBK Roof Rigid Vent Kit
Includes: Flue Restrictor, Storm
Collar, 7" x 30
°
Elbow, 7" x 4'
Pipe, 7" x 2' Pipe, 7" Adjust-
able Pipe (7-12"), Firestop Sup-
port, Roof Flashing, RTV Sili-
cone, Vertical Termination, and
26 screws
CD1000BK 7" x 12" Black Coaxial Pipe
(1 pk)
CD1010BK 7" x 24" Black Coaxial Pipe
(1 pk)
CD1020BK 7" x 48" Black Coaxial Pipe
(1 pk)
CD1030BK 7" Adjustable (7-12")Black
Coaxial Pipe (1 pk)
CD1050BK 7" x 6" Black Coaxial Pipe
(1 pk)
CD2000BK 7" X 90
°
Elbow (1 pk)
CD2010BK 7" x 45
°
Elbow (1 pk)
CD2020BK 7" x 30
°
Elbow
CD2030BK 7" x 60
°
Elbow
Number Description
CD3000 Wall Strap/Offset Support
(1 pk)
CD3010 Storm Collar (1 pk)
CD3020 Wall Thimble (1 pk)
CD3040 Vertical Termination Cap (1 pk)
CD3050 Vertical Restrictor (1 pk)
CD3060 Ceiling Firestop/Support
(1 pk)
CD3070 Rectangular Horizontal Rigid
Vent Termination Cap
CD3090 Cathedral Ceiling Support
Box
CD4000 Roof Flashing 6/12-9/12
CD4010 Roof Flashing 9/12-12/12
CD5000 Wood/Vinyl Siding Standoff
(1 pk)
Comfort Glow Rigid Venting (Cont.) Consult your local gas company to help de-
termine the proper orifice for your location.
For assistance with any high altitude instal-
lation contact DESA International’s Tech-
nical Service Department at 1-800-DESA-
LOG (1-800-337-2564).
SIMPSON DURA-VENT
GS 4" x 6
5 /
8
" (Black Pipe)
Number Description
Available from DESA International:
SD2040B Simpson Dura-Vent GS
30
°
Elbow (6 pcs.)
SD2050B Simpson Dura-Vent GS
60
°
Elbow (6 pcs.)
Available from Simpson Dura-Vent only:
902B 7" x 48" Pipe
903B 7" x 36" Pipe
904B 7" x 24" Pipe
906B 7" x 12" Pipe
907B 7" x 9" Pipe
908B 7" x 6" Pipe
911B 7" Adjustable (11"-14 5 /
8
") Pipe
940 Wall Thimble
941 Cathedral Ceiling Support Box
943 Roof Flashing 0/12-6/12
943S Roof Flashing 7/12-12/12
945B 7" x 45
°
Elbow
950 Vinyl Siding Standoff
953 Storm Collar
963 Ceiling Firestop
981 36" Snorkel Termination
984 Horizontal Termination Vent Cap
988 Wall Strap
990B 7" x 90
°
Elbow
991 Vertical High Wind Termination
