CAST IRON STOVE AND BURNER SYSTEM
105501
CDVBN(A) AND CDVBP(A)
1. After lighting, let pilot flame burn for
about one minute. Turn gas control
knob on the control valve to ON posi-
tion. Turn variable control knob any-
where between HI and LO. Slide the
selector switch to the REMOTE posi-
tion.
Note: The burners may light if
hand-held remote ON button was on
when selector switch was last turned
off. You can now turn the burners on
and off with either optional hand-held
remote control unit.
IMPORTANT: Do not leave the se-
lector switch in the REMOTE posi-
tion when the pilot is not lit. This will
drain the battery.
IMPORTANT: Be sure to press the
ON/OFF buttons on the hand-held
remote control unit for up to 3 sec-
onds to assure proper operation.
OPTIONAL REMOTE
OPERATION
Note: All remote control accessories must
be purchased separately (See Accessories
on page 31). Follow instructions included
with the remote control.
Thermostat Control Operation
(Optional CGHRCT Only) The thermo-
stat control setting on the remote control
unit can be set to any comfort level be-
tween HI and LO. The burners will turn
on and off automatically to maintain the
comfort level you select. The ideal comfort
setting will vary by household depending
upon the amount of space to be heated, the
output of the central heating system, etc.
NOTICE: You must light the pilot
before using the hand-held re-
mote control unit. See
Lighting
Instructions, page 23.
OPERATING STOVE
WITH BURNER
SYSTEM
Continued
CGHRC Series Operation:
2a. Press the ON/OFF button to turn the
burners on and off. When turning
burners off, the pilot will remain lit.
CGHRCT Series Operation:
2b. Select the MAN (manual) or AUTO
button on the hand-held remote con-
trol unit (see Figure 58).
• In manual mode, turn burners on
or off by pressing the ON or OFF
buttons on the hand-held remote
control unit.
• In auto mode, the room tempera-
ture is controlled by the thermo-
stat in the hand-held remote con-
trol unit. To increase the room
temperature, press the top arrow
of the TEMP button. To lower the
room temperature, press the bot-
tom arrow of the TEMP button.
At higher settings the burner sys-
tem will run more.

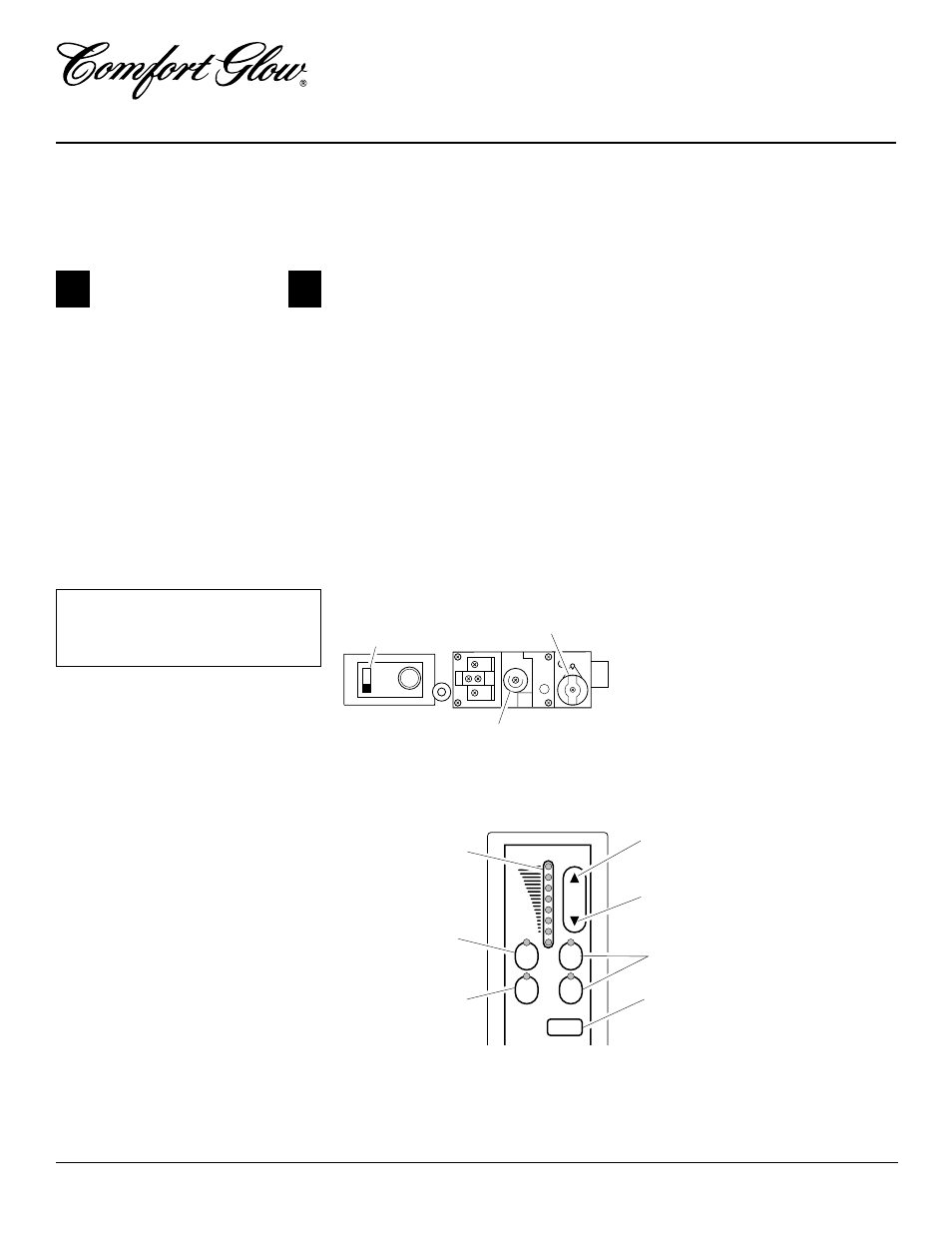

Figure 57 - Setting the Selector Switch,
Gas Control Knob, and Variable Control
Knob for Remote Operation
TEMP
STATUS
HI
LO MAN ON
AUTO OFF
Figure 58 - Hand-Held Thermostat Remote Control Unit Selections
(CGHRCT Only)
Shows Temperature
Setting
Allows Burners to be
Turned On and Off
with the Hand-Held
Remote Unit
The Burner System
will Automatically
Cycle between Pilot
and the Heat Setting
that has been
Selected
Increases Room
Temperature
Decreases Room
Temperature
Turns Burners On
and Off
Shows Current
Operation Mode
IMPORTANT: This remote control
has been specially engineered to take
an air temperature sample every 5.5
minutes in auto mode. It will not re-
spond immediately to the tempera-
ture setting being turned up or down.
IMPORTANT: The hand-held remote
control unit must be near the stove
but not extremely close to it. The
thermostat on the hand-held remote
control unit will heat up too quickly
and turn the burner system off.
3. Use the STATUS button on the hand-
held remote control unit to see the
operation mode being used and the
temperature setting selected. A red
light will come on beside the opera-
tion mode being used.
4. To turn the burners off when oper-
ating in the manual mode, press the
OFF button. If operating in the auto
mode, press the MAN button, then
press the OFF button. The pilot will
remain lit.
IMPORTANT: To turn the
pilot off, manually turn the gas con-
trol knob on the burner system to the
OFF position.
ON
OFF
REMOTE LO HI
OFF
ON
PI LO
T
Selector Switch in
Remote Position
(Optional Remote
Control)
Variable Control Knob
Gas Control Knob
in On Position
