5 105501
OWNER’S MANUAL
Pallet
Wood
Bolted to
Bottom of
Stove
Body
STOVE BODY ASSEMBLY
1. Lift off corrugated box enclosing stove
body crating.
2. Remove all screws fastening the wood
frame enclosure. Spread wood frame open
and lift away from plastic-bagged stove
body. The bottom pieces of pallet wood
will remain bolted to the stove body.
3. Remove plastic bag from stove body.
4. Remove back panel from stove (see
Figure 6). Use an adjustable wrench or
a 10 mm socket. Remove six (6) bolts
and washers. Keep bolts and washers
to reattach back panel later.
5. Remove all contents from inside stove
cavity. Contents include:
(1) - Stove bottom
(4) - Legs with leg leveler bolts
(1) - Bottom door
(1) - Top grate
(1) - Hardware kit bag with fasteners

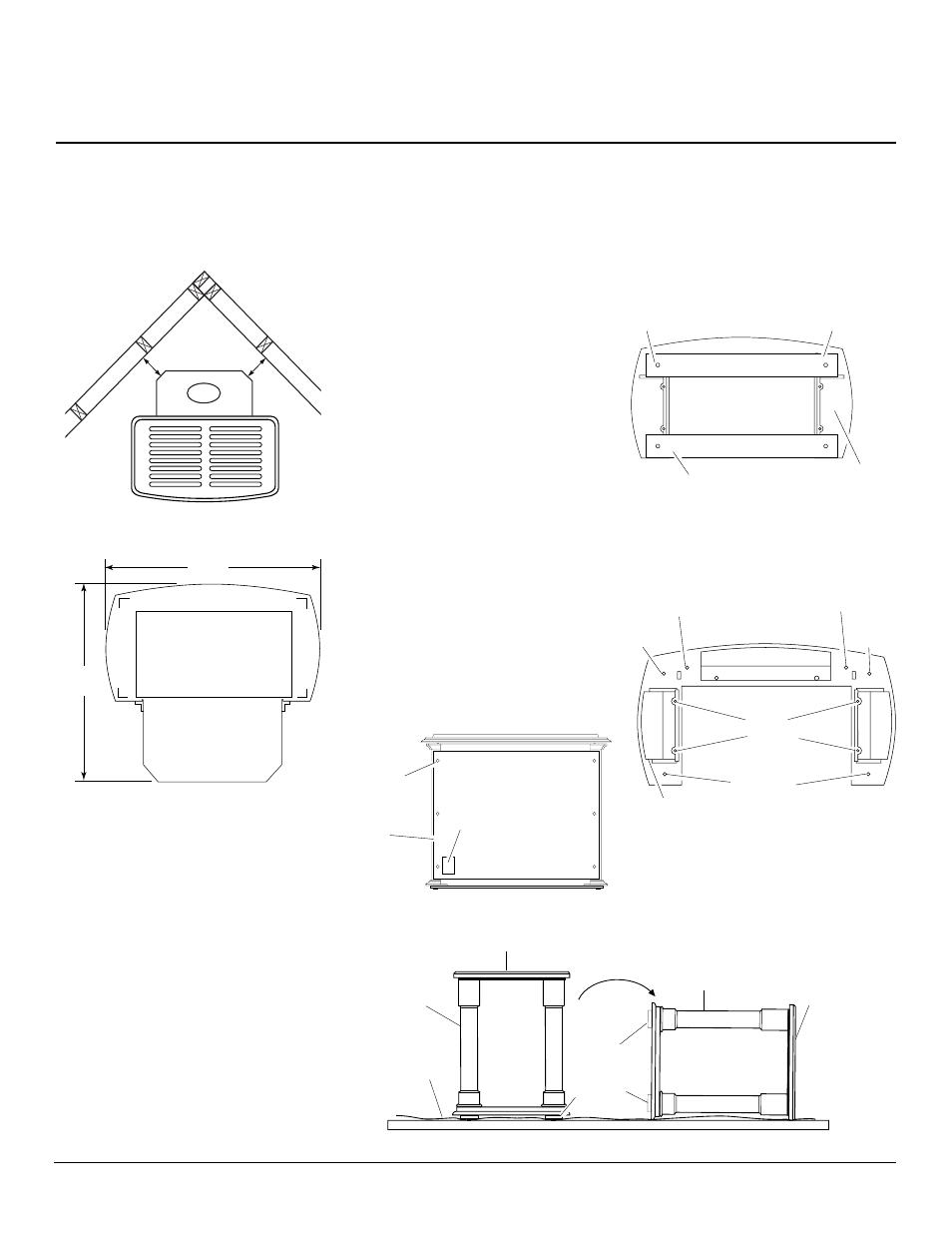

Figure 7 - Laying Stove On Side
Figure 8 - Removing Pallet Wood from the
Bottom of the Stove
Figure 9 - Locating Threaded Holes for
Stove Bottom, Legs, and Door Attachment
Figure 6 - Removing Back Panel
Bolt
Product
Identification
Label
Back
Stove
Panel
Pallet Wood
Bolt
Pallet
Wood
Bottom Of
Stove Unit
Front
Door Hinge Step
Bolt Hole
Door Catch Bolt
With Adjustable
Hex Nuts Hole
Leg
Hole
Leg Hole
Leg
Hole
Stove
Bottom
Hole
Front
Bottom Of
Stove Unit
Front of
Stove
Unit
Top of Stove Unit
Front of
Stove Unit
Top of
Stove
Unit
Drop
Cloth/
Blanket
CAST IRON STOVE
AND DIRECT-VENT
BURNER SYSTEM
ASSEMBLY
4"
4"
Figure 4 - Clearance for Corner Installation
Figure 5 - Stove with Burner System
Bottom Dimensions
25"
25 5 /
8
"
Front
6. Carefully lay stove body on back to attach
bottom components to stove body (see
Figure 7). Rest stove on drop cloth or blan-
ket to avoid scratching stove edges.
7. Remove remaining pallet wood at-
tached to bottom of stove body (see
Figure 8). Use an adjustable wrench to
remove bolts.
PRE-INSTALLATION
PREPARATION
Continued
Continued
