OWNER’S MANUAL
Pressure Testing Gas Supply
Piping System
Test Pressures In Excess Of 1/2 PSIG
(3.5 kPa)
1. Disconnect burner system and its
individual manual shutoff valve from
gas supply piping system. Pressures in
excess of 1/2 psig (3.5 kPa) will
damage burner system gas regulator.
2. Cap off open end of gas pipe where
manual shutoff valve was connected.
3. Pressurize supply piping system by ei-
ther opening propane/LP supply tank
valve for propane/LP gas burner sys-
tem or opening main gas valve located
on or near gas meter for natural gas
burner system, or using compressed air.
4. Check all joints of gas supply piping
system. Apply commercial leak test so-
lution to all gas joints. Bubbles forming
show a leak. Correct all leaks at once.
5. Reconnect burner system and manual
shutoff valve to gas supply. Check re-
connected fittings for leaks.
CHECKING GAS
CONNECTIONS
WARNING: Test all gas pip-
ing and connections for leaks
after installing or servicing. Cor-
rect all leaks at once.
WARNING: Never use an open
flame to check for a leak. Apply
commercial leak test solution to
all gas joints. Bubbles forming
show a leak. Correct all leaks at
once.
CONNECTING STOVE/
BURNER SYSTEM TO GAS
SUPPLY
Installation Items Needed
• 5/16" hex socket wrench or nut-driver
• sealant (resistant to propane/LP gas, not
provided)
1. Open lower door panel.
2. Route flexible gas line (provided by
installer) from manual shutoff valve to
burner system. Route flexible gas sup-
ply line through slot in stove bottom
and attach to valve.
3. Check all gas connections for leaks. See
Checking Gas Connections.
STOVE AND
DIRECT-VENT
BURNER SYSTEM
INSTALLATION
Continued
To Flare Fitting on
Control Valve
Flexible Gas Line from
Manual Shutoff Valve
Provided by Installer
Manual Shutoff Valve
To Gas Supply
(Natural)
To External
Regulator
(Propane/LP)

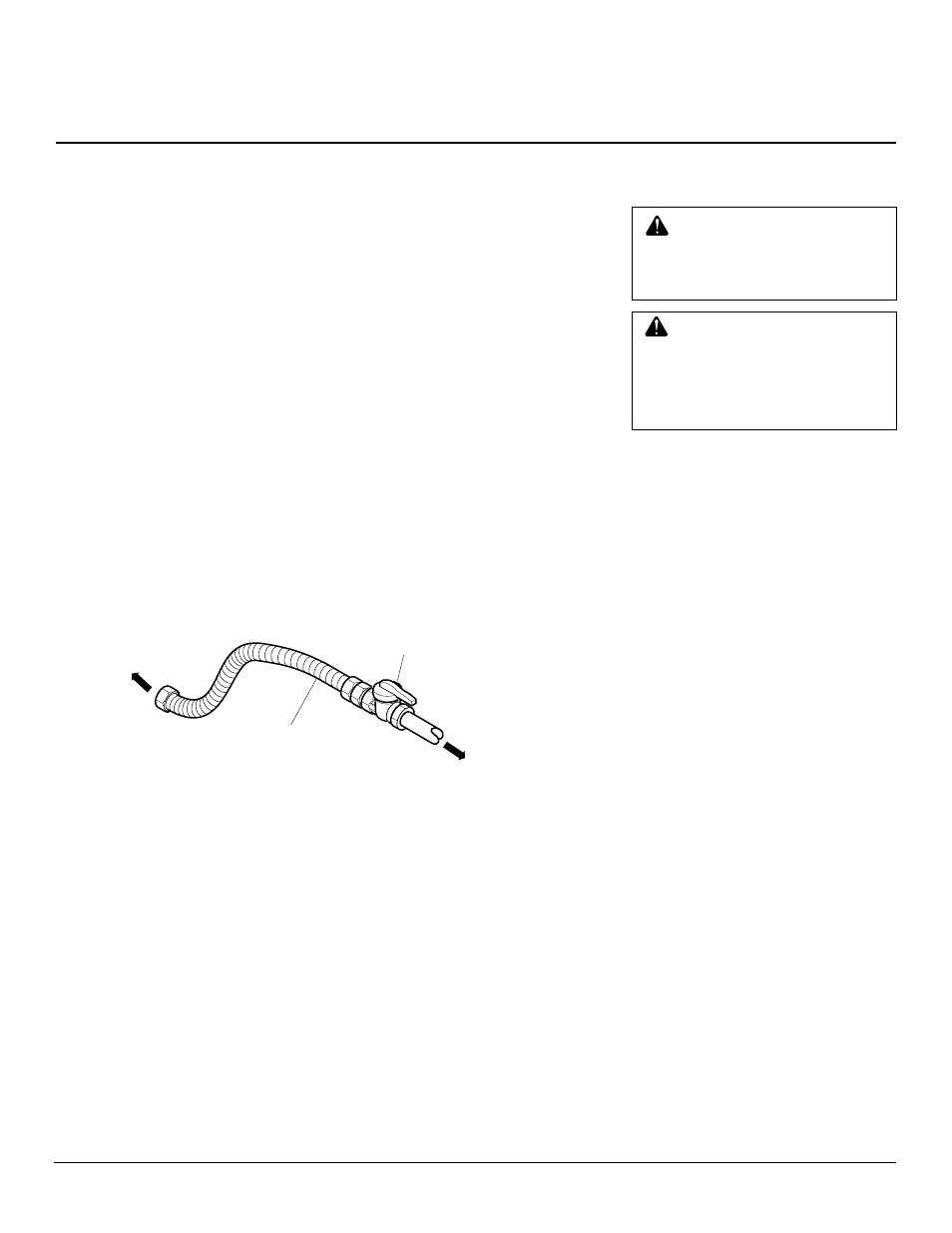

Figure 40 - Flexible Gas Line
Continued
