Montigo H38DF PFC - Manual (Page 33)

Page 33
H*38DF PFC Peninsula Gas Fireplace
XG0816 - 150204.1

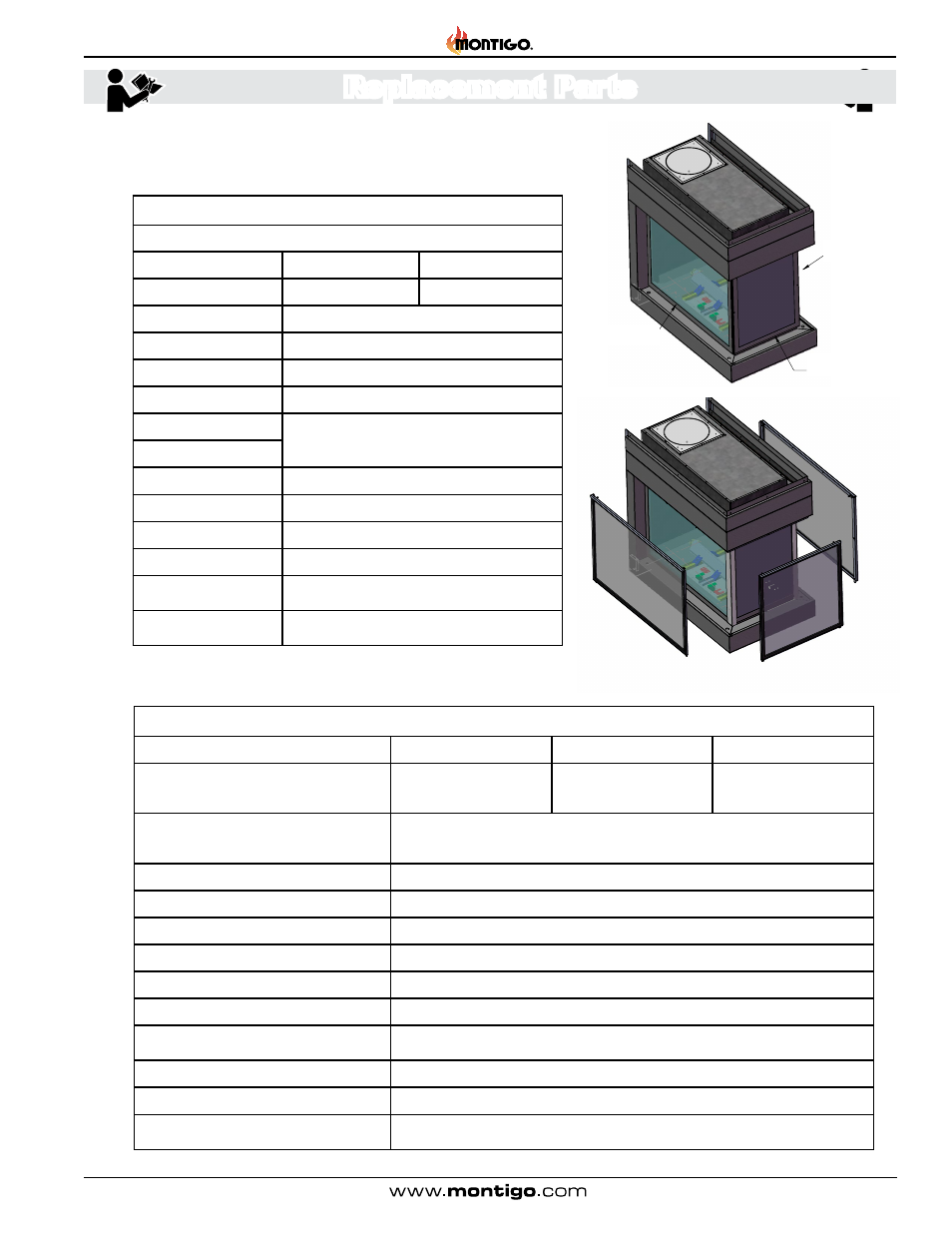

Maintenance Replacement Parts
Standing Pilot - Replacement Parts List
H38PFC HL38PFC
Log Set RLGS47 N/A
NG Gas Valve RGC1006
LP Gas Valve RGC1005
NG Pilot RPA020
LP Pilot RPA021
NG Burner
Contact Local Montigo Dealer
LP Burner
Thermocouple
RTC182
Thermopile
RPG001
Piezo Ignitor PIEZO
Pilot Tubing RPTA03
Door RDTH38PF01, RDTH38PF02, RDTH38PF03
Replacement Screen RSCH38PFC1, RSCH38PFC2, RSCH38PFC3
Replacement Parts:
SIT IPI Proflame 2 - Replacement Parts List
HP38PFC H38PFC HL38PFC
Log Set LGSH38STCRPF RLGS47 N/A
NG Gas Valve (with stepper motor) RGC3033
LP Gas Valve (with stepper motor) RGC3034
NG Pilot Assembly RPA035
LP Pilot Assembly RPA036
Ignitor Probe Assembly RGC3075
Flame sensor rod assembly RGC3076
Pilot Tubing RPTA03
Door RDTH38PF01, RDTH38PF02, RDTH38PF03
Control Module
RGC3061
Proflame Transmitter
RGC3063
Replacement Screen
RSCH38PFC1, RSCH38PFC2, RSCH38PFC3
RDTH38PF03
RDTH38PF02
RDTH38PF01
1:8
DWG. NO.
SHEET 1 OF 2 WEIGHT:
H38PFC-NO SCREENS
Finish
MATERIAL
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL 1/32"
TWO PLACE DECIMAL .015"
THREE PLACE DECIMAL .005"
ALL BENDS ARE ASSUMED
TO BE 90 UNLESS NOTED
OTHERWISE.
Revision / Date
Drawn by
DATE NAME
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF CANADIAN HEATING PRODUCTS. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF CANADIAN HEATING PRODUCTS IS PROHIBITED.
PROPRIETARY AND CONFIDENTIAL Y:\Products\Residential Products\H38DF-PFC\H38DF-PFC
November-27-14 11:01:20 AM
SCALE
PC
Description
H38PFC-NO SCREENS
Revision
A
11/27/2014
RDTH38PF02
RDTH38PF03
RDTH38PF01
DWG. NO.
MATERIAL
DIMENSIONS ARE IN INCHES
FRACTIONAL
TWO PLACE DECIMAL
THREE PLACE DECIMAL
ALL BENDS ARE ASSUMED
UNLESS NOTED
OTHERWISE.
DATE NAME
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF CANADIAN HEATING PRODUCTS. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF CANADIAN HEATING PRODUCTS IS PROHIBITED.
PROPRIETARY AND CONFIDENTIAL Y:\Products\Residential Products\H38DF-PFC\H38DF-PFC
November-27-14 10:40:05 AM
SCALE
PC
A
11/25/2014
RSCH38PFC1
RSCH38PFC2
RSCH38PFC3
