B-Series DV-2 Gas Fireplace

Part No. XG0160 -141231

Installation

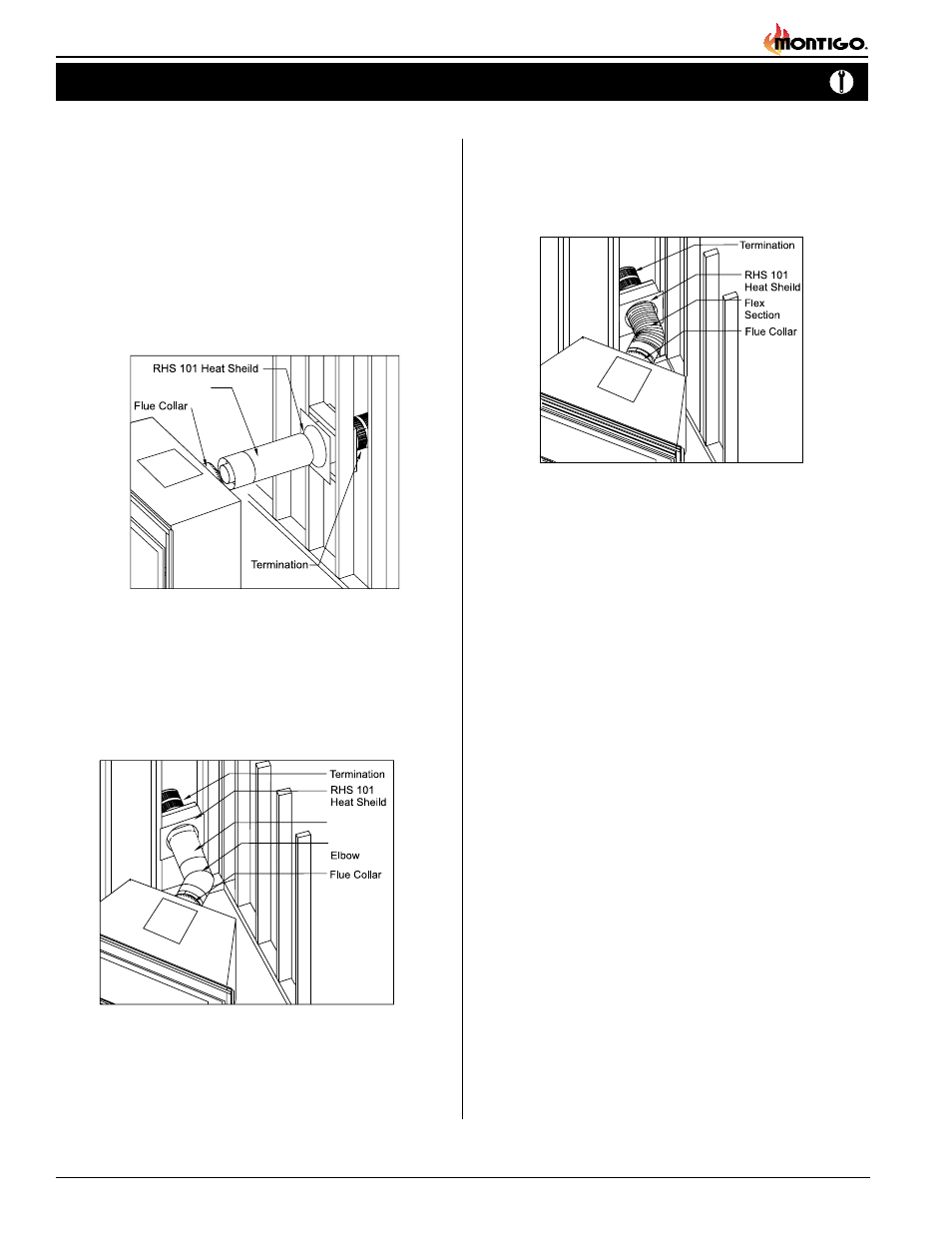

Figure 18. Corner installation.

Figure 19. Flex installation.

2. 45° Corner Installation.
Attach an EEL-45 (45° elbow) directly onto the flue collar. Cut the

EXT-18 to suit, and attach it to the EEL-45. Slide the fireplace into

position and attach to the termination. Maximum horizontal run

must not exceed 18"

3. Corner Installation — 45° or less.
Use an MTO-4 or MTO-4F termination, an MFL-1 or MFL-2(12" or 24"

compressed length) and a frame, if appropriate. Flex may be turned

to obtain desired degree of angle required but must not exceed 45°.

Figure 17. Extended installation.

Rear Vent Venting Runs

The B-Series DV-2 Rear Vent has three possible installations which

do not require vertical lift.

1. Straight Installation.
The

B-Series DV-2 rear vent versions are supplied with and 18"

extension pipe (EXT-18) with female/female connections. For shorter

installations, cut the EXT-18 to the desired length. Refer to page 4

for measurements from the hearth to the center of the termination.

Note:

For Rear Vent models, maximum horizontal run with no

vertical lift must never exceed 18".

EXT-18

EEL-45

EXT-18
