Delfield 406-CA User Manual
Page 2
980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858
Phone: 800-733-8948 or 989-773-7981
Fax: 800-669-0619
www.delfield.com
40
6
&
40
7
U
nd
er
co
un
te
r S
er
ie
s
Printed in the U.S.A.
DS406_407(CA)
06/08
Specifications
Model
Voltage
Amps
Storage
Capacity
Shelf
Capacity
H.P.
Ship Weight
NEMA Plug Energy
(KWH)
406
115
7.0
5.7ft
3
7.2ft
2
1/5
176lbs (80kg)
5-15P
1.88
407
115
5.8
5.7ft
3
7.2ft
2
1/5
176lbs (80kg)
5-15P
3.22
406-CA
115
7.0
5.7ft
3
7.2ft
2
1/5
168lbs (76kg)
5-15P
1.88
407-CA
115
5.8
5.7ft
3
7.2ft
2
1/5
168lbs (76kg)
5-15P
3.22
INSTALLATION NOTE ALL MODELS:
Refrigeration system is designed so that air will flow
under the unit, through the compressor area, and
out the top rear of the unit. Any restriction to this air
flow path will void the warranties.

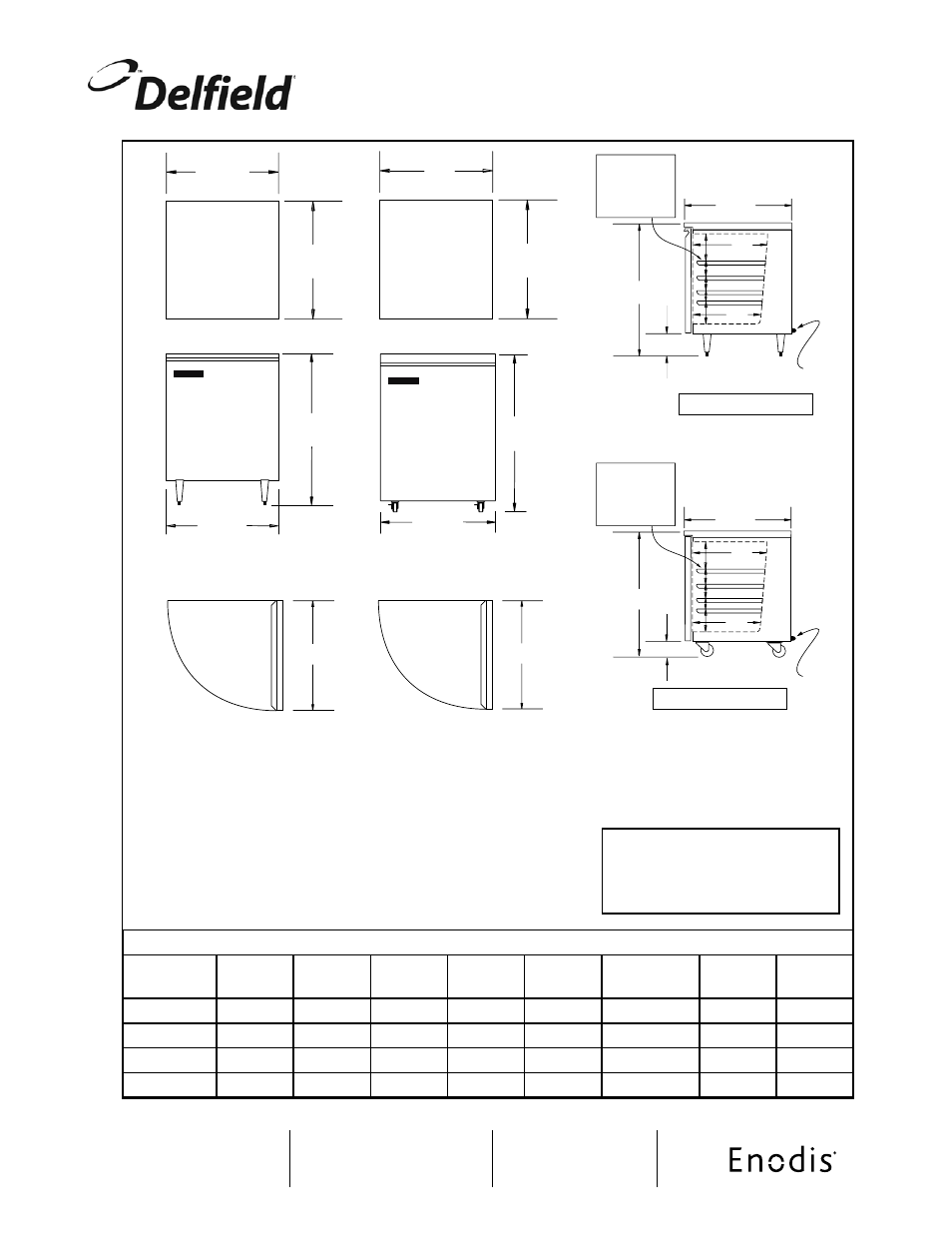

RIGHT END VIEW 406/407
RIGHT END VIEW
406-CA/407-CA
27.75"
70.5. cm
33.25"
84.5 cm
3.75"
9.5 cm
19.50"
49.5 cm
17.00"
43.2 cm
1.00"/2.5 cm
RUBBER
BUMPER
INTERIOR CLEAR DIMENSION,
LEFT TO RIGHT: 21.25"/54.0 cm
A
B
C
D
E
SHELF SUPPORT
SPACING
A = 7.50"/19.1 cm
B = 4.00"/10.2 cm
C = 3.75"/9.5 cm
D = 2.75"/7.0 cm
E = 6.00"/15.2 cm
28.50"
72.4 cm
35.50"
90.2 cm
6.00"
15.2 cm
19.50"
49.5 cm
17.00"
43.2 cm
BULLET FEET CAN
ADJUST UPWARDS ONLY,
UP TO +1.00"/2.5 cm
1.00"/2.5 cm
RUBBER
BUMPER
INTERIOR CLEAR DIMENSION,
LEFT TO RIGHT: 21.25"/54.0 cm
A
B
C
D
E
SHELF SUPPORT
SPACING
A = 7.50"/19.1 cm
B = 4.00"/10.2 cm
C = 3.75"/9.5 cm
D = 2.75"/7.0 cm
E = 6.00"/15.2 cm
PLAN VIEW 406/407
ELEVATION VIEW 406/407
DOOR CLEARANCE DETAIL
406/407
PLAN VIEW 406-CA/407-CA
ELEVATION VIEW
406-CA/407-CA
DOOR CLEARANCE DETAIL 406-CA/407-CA
27.25"
69.2 cm
28.50"
72.4 cm
REF’G
27.25"
69.2 cm
35.50"
90.2 cm
27.25"
69.2 cm
33.25"
84.5 cm
FRZR.
27.25"
69.2 cm
33.25"
84.5 cm
24.75"
62.9 cm
STANDARD DOOR HINGING IS ON RIGHT
HINGING MAY BE REVERSED AT INSTALLATION
24.75"
62.9 cm
STANDARD DOOR HINGING IS ON RIGHT
HINGING MAY BE REVERSED AT INSTALLATION
27.25"
69.2 cm
27.75"
90.2 cm
Delfield reserves the right to make changes to the design or specifications without prior notice.
