Radial Winch
35.2 ST
Installation and Maintenance Manual

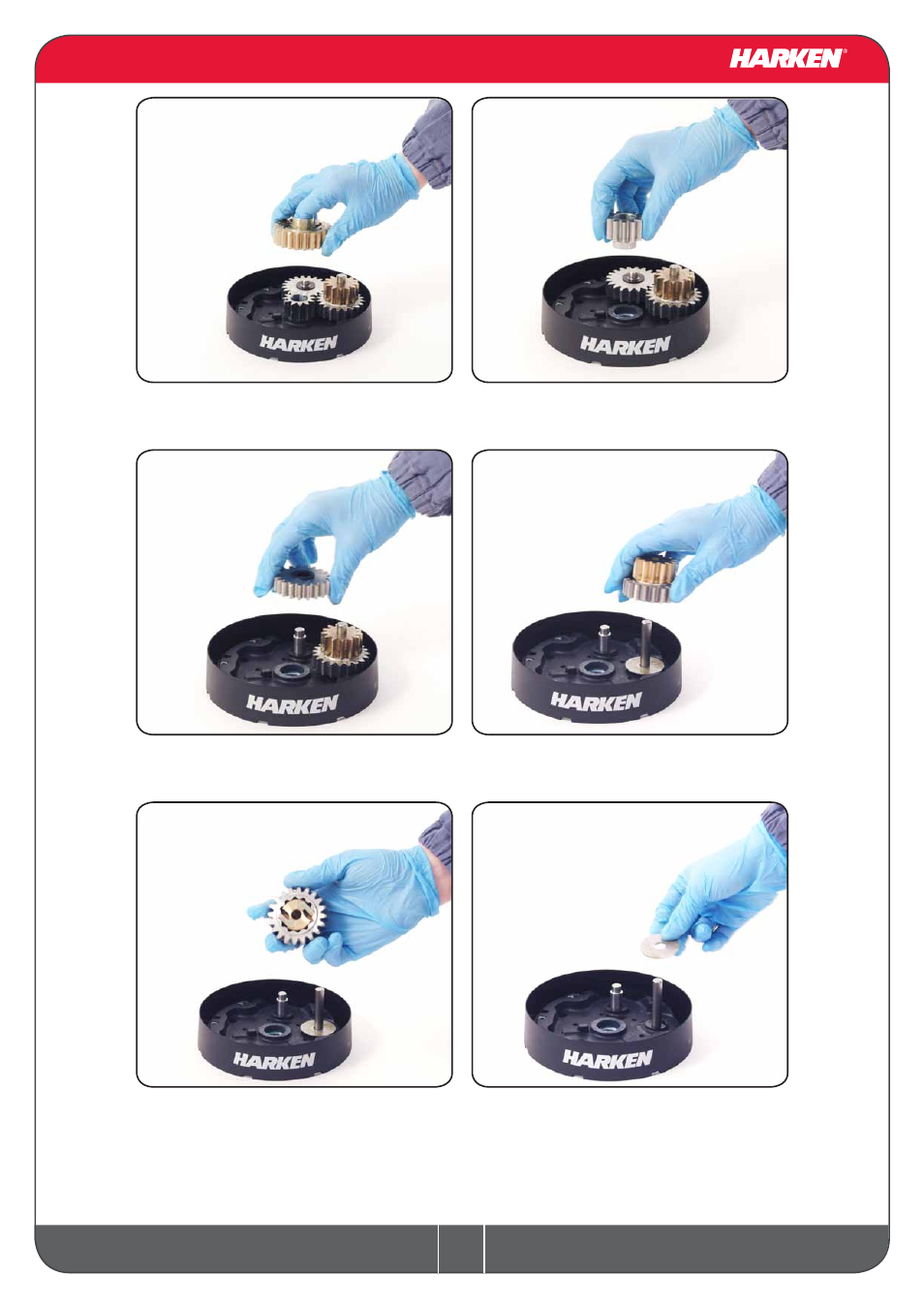

12. Remove the gearing n°7 and remove the
pawls n°5. To facilitate the operation press
the spring against the pawl with a blade.
14. Slide off gear n°14
16. Remove the pawls n°5. To facilitate the
operation press the spring against the pawl
with a blade.
13. Slide off gear n°3
15. Slide off gear n°10
17. Remove washer n°9
