2 st – Harken 35.2ST Winche User Manual
Page 10
10
Radial Winch
35.2 ST
Installation and Maintenance Manual

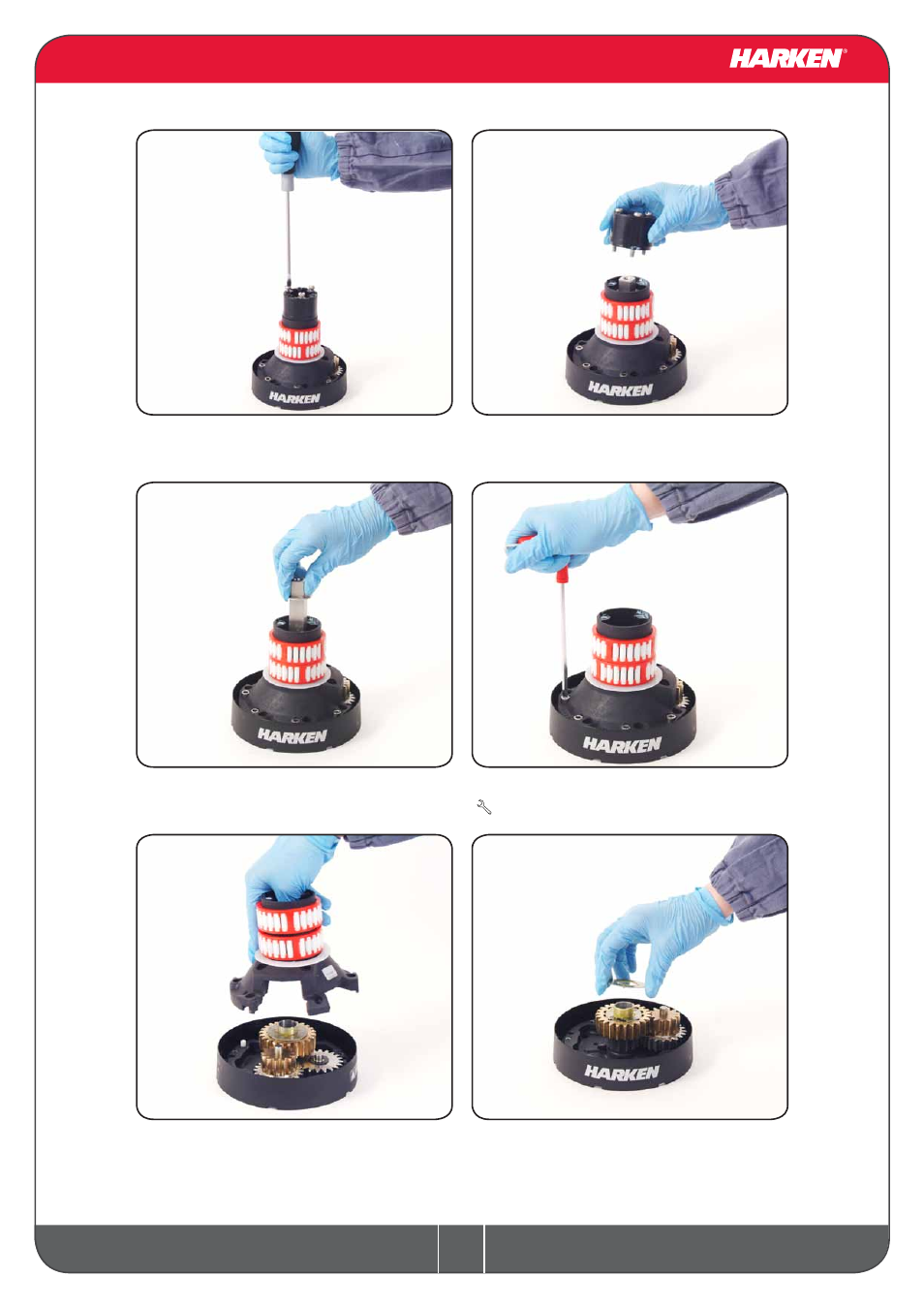

Carry out
Procedure1 as shown in the paragraph on winch installation and then do the following:
6. Completely unscrew the three screws n°27
8. Slide out the central shaft n°19
10. Remove the drum support n°15
Important: washer n°12 may remain inside the
drum support!
7. Remove the self-tailing arm support n°21
and slide out the bushing
9. Unscrew the 6 hex screws n°16
( 8Nm/71 in-lb)
11. Remove the washer n°12
