Harken 35.2PT Winche User Manual
Page 6
6
Radial Winch
35.2 PT
Installation and Maintenance Manual
Procedure 2

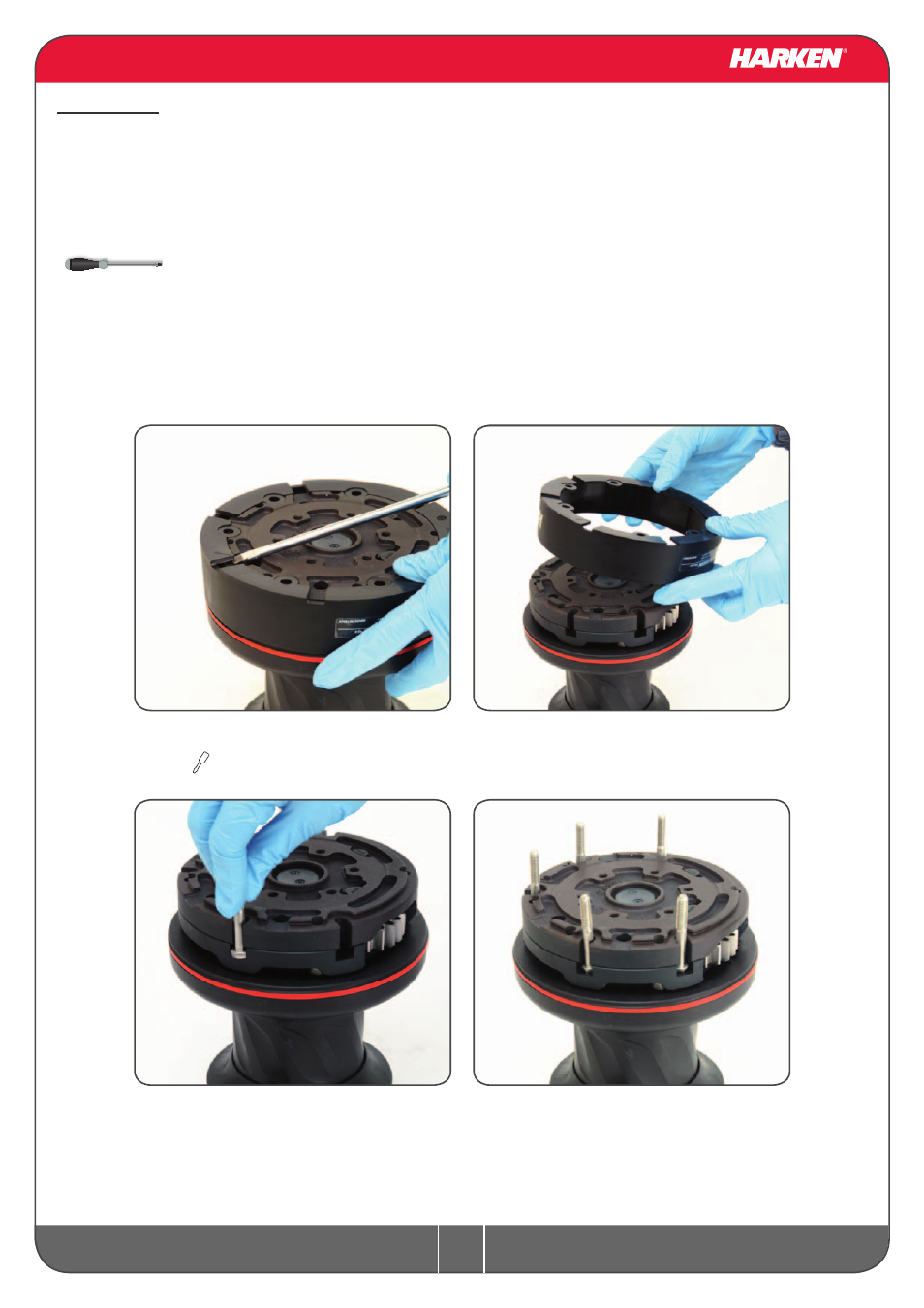

To install, you must remove the winch skirt and use hexagonal headed bolts.
Tools needed
One medium flat-bladed screwdriver
To identify the various parts, refer to the exploded view at the end of this Manual.
1. Remove the skirt n°2 with the help of
the screwdriver placed as shown by the
symbol
2. Take off the skirt n°2
3. Position the 5 M6 hexagonal headed
bolts in their holes
