Radial Winch
35.2 PT
Installation and Maintenance Manual

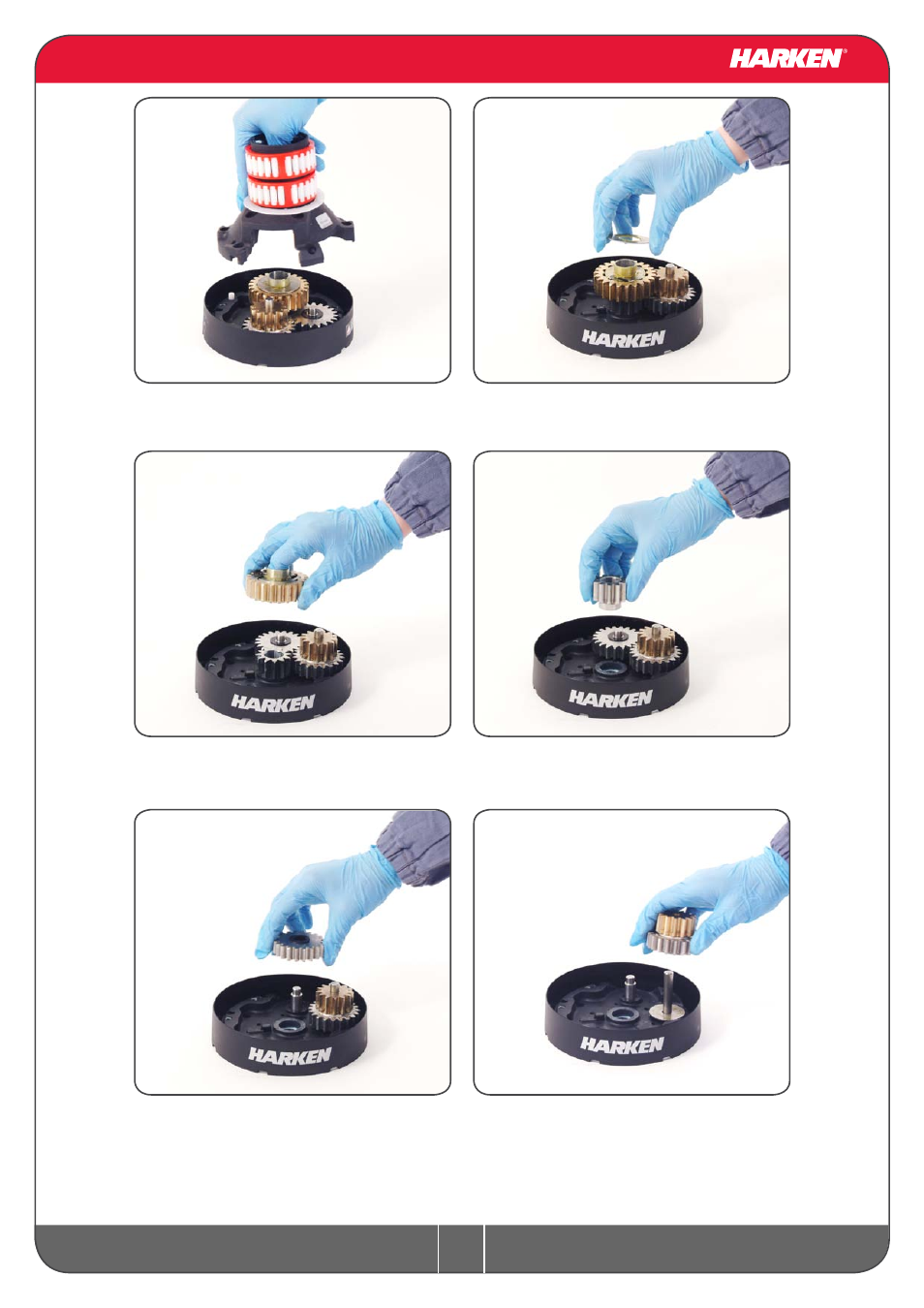

8. Remove the drum support n°15
Important: washer n°12 may remain
inside the drum support!
10. Remove the gearing n°7 and remove the
pawls n°4. To facilitate the operation press
the spring against the pawl with a blade.
12. Slide off gear n°14
9. Remove the washer n°12
11. Slide off gear n°3
13. Slide off gear n°10
