The mounting and wiring instructions for Models 293-700, 293AL-700 and 294AL-702 are as follows:
1. Remove the four tamper-resistant screws from
the front panel.
2. Position the enclosure on the mounting
surface. The enclosure provides four
0.28-inch mounting holes. Secure it with the
four ¼-inch diameter bolts of the appropriate
length for the mounting surface.
N
OTE : When using the GAI-Tronics Model
231-001 Pole Mounting Kit, follow the
mounting instructions provided in the kit.
3. For Model 293-700 only: Create an access
hole using a Greenlee-type punch that is
equivalent in size to the conduit diameter.
Bottom entry is strongly recommended. Insert
a conduit fitting in the access hole. Refer to
conduit installation details on page 5.
N
OTE : Use silicone sealant or equivalent
around and inside all conduit entries.
4. Pull the cable through the conduit. Install the cable as shown in the Field Wire Installation section on
page 11.
5. Make hardware configuration changes, if necessary. Refer to page 14 for more information.
6. Perform the initial programming of the phone. Refer to the Programming section on page 16. Verify
that the phone is operating properly by calling to and from another phone.
7. Adjust the speaker levels if necessary. Refer to the Speaker Level section on page 15.
8. Complete the installation by attaching the front panel assembly to the rear enclosure using the four
tamper-resistant screws.

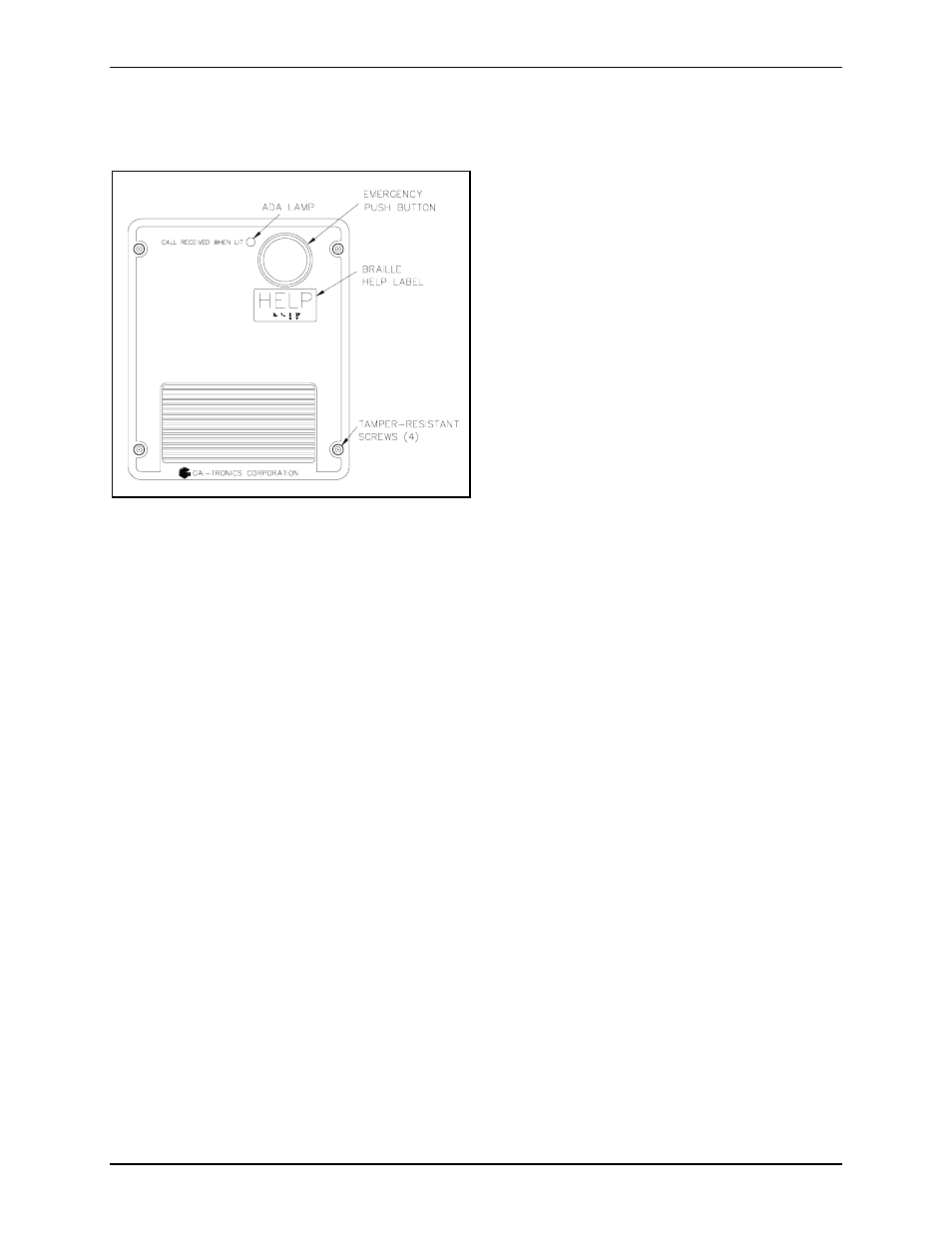

Figure 5. Model 293-700 VoIP Phone in a Non-
metallic Enclosure
