Connecting a Beacon
Each phone includes two solid state relays. Contact 1 on P1 of the VoIP Carrier PCBA provides the
connections for a beacon output. Refer to Figure 17 for the connection details.
Contact 1 allows peripheral equipment, such as beacons, video cameras, and alarm generators, to be
activated when the E
MERGENCY
push button is pressed. The relay remains energized for the duration of
the emergency call.
In many applications, the output is used to operate a GAI-Tronics Model 530-001/531A Beacon (sold
separately). For connection details, please refer to the Model 530-001/531A installation instructions
included with the beacon. Information is also available at
www.gai-tronics.com
.

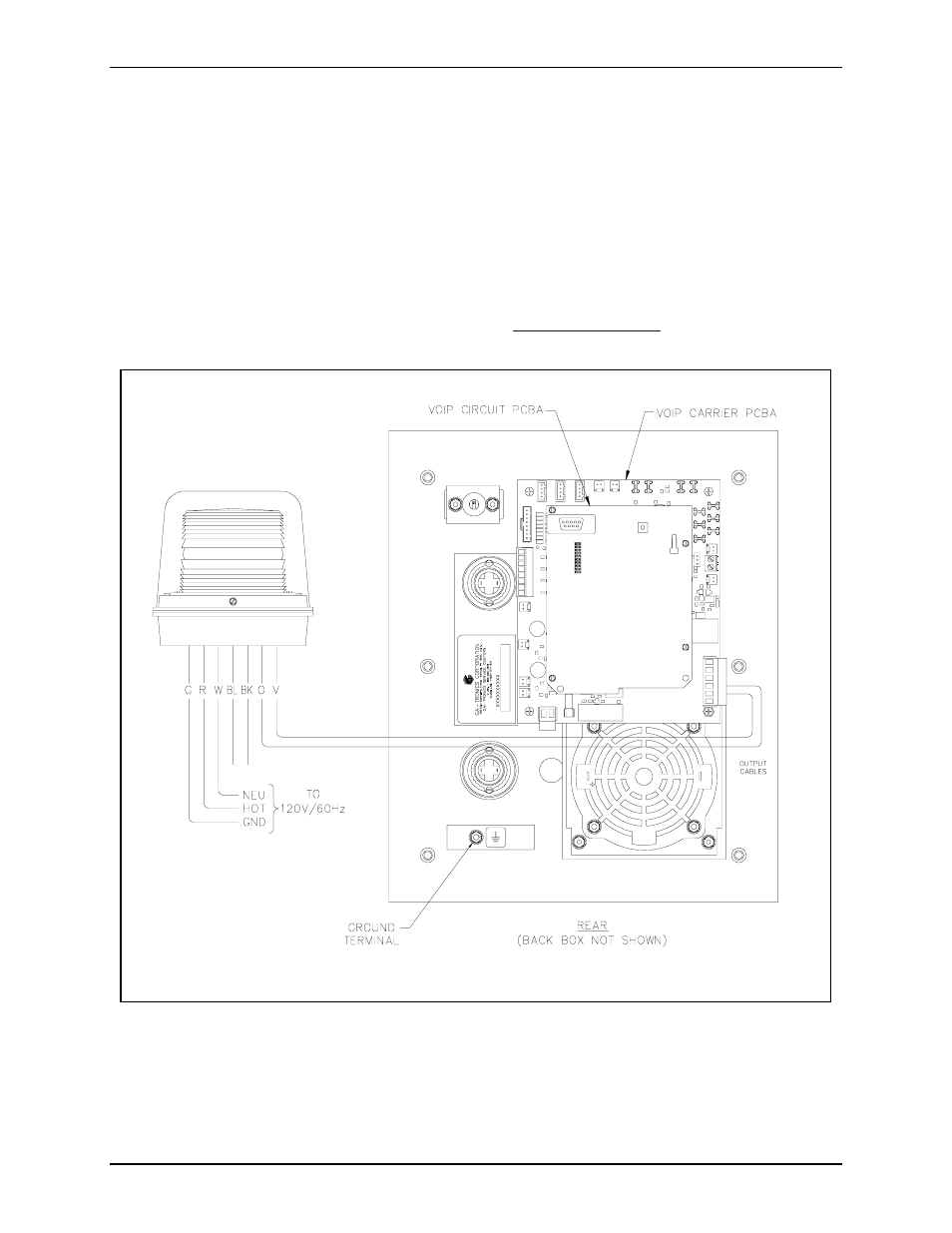

Figure 17. Model 297-700 and 298-701 - Component Locations
(shown with connection to optional GAI-Tronics 530-001/531A Beacon)
