Audio Connector : CD_IN
CD_IN is a Sony standard audio connector, it can be
connected to a CD/DVD-ROM drive through a CD/DVD
audio cable.
USb Connectors : f_USb1/2/3
In addition to the six USB ports on the rear panel, this
product also provides three 10-pin USB headers on its
motherboard. By connecting through USB cables with
them, user can quickly expand another six USB ports
on the front panel.
Fan Connectors : CPU_FAN, SYS_FAN,
fAN1/2/3
There are five main fan headers on this motherboard.
The fan speed can be controlled and monitored in
“Green System Mode” section of the BIOS Setup.
These fans can be automatically turned off after the
system enters S3, S4 and S5 sleeping states.
Chassis Intruder Connector : INTR
The connector can be connected to a security switch
on the chassis. The system can detect the chassis
intrusion through the function of this connector. If
eventually the chassis is closed, the system will send
a message out.

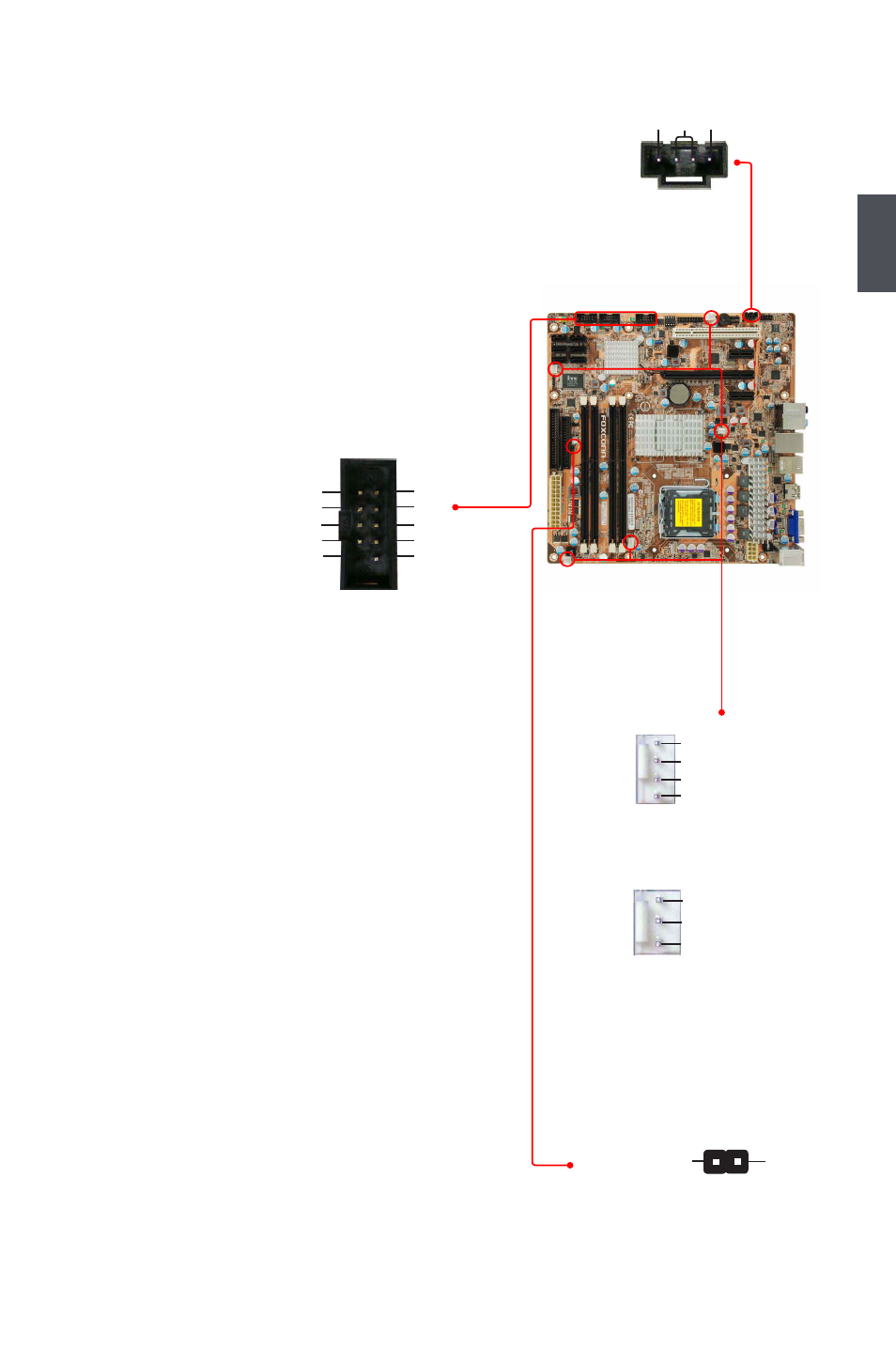

F_USB 1/2/3
NC
GND
VCC
D+
D-
D+
GND
D-
VCC
EMPTY
1 2
10 9
CD_IN
CD_L GND CD_R
1
CPU_FAN/SYS_FAN
GND
POWER
SENSE
CONTROL
1
1
FAN1/FAN2/FAN3
GND
+12V
SENSE
INTR
GND INTRUDERJ
1
