5
1
5
1.PS/2 Keyboard Port
Use the port (purple) to connect a PS/2 keyboard.
2. VGA Port
To connect with external display devices, such as monitor or LCD display.
3. HDMI Port
The HDMI (High-Definition Multimedia Interface) provides an all-digital audio/video interface to
transmit the uncompressed audio/video signals and is HDCP compliant. Connect the HDMI au-
dio/video to this port. The HDMI Technology can support a maximum resolution of 1920x1080p,
but the actual resolutions supported depend on the monitor being used.
4. USb Ports
The USB port supports the USB 2.0/1.1 specification. Use this port for USB devices such as an
USB keyboard/mouse, USB printer, USB flash drive and etc.
5. Audio Ports
For the definition of each audio port, please refer to the table below :

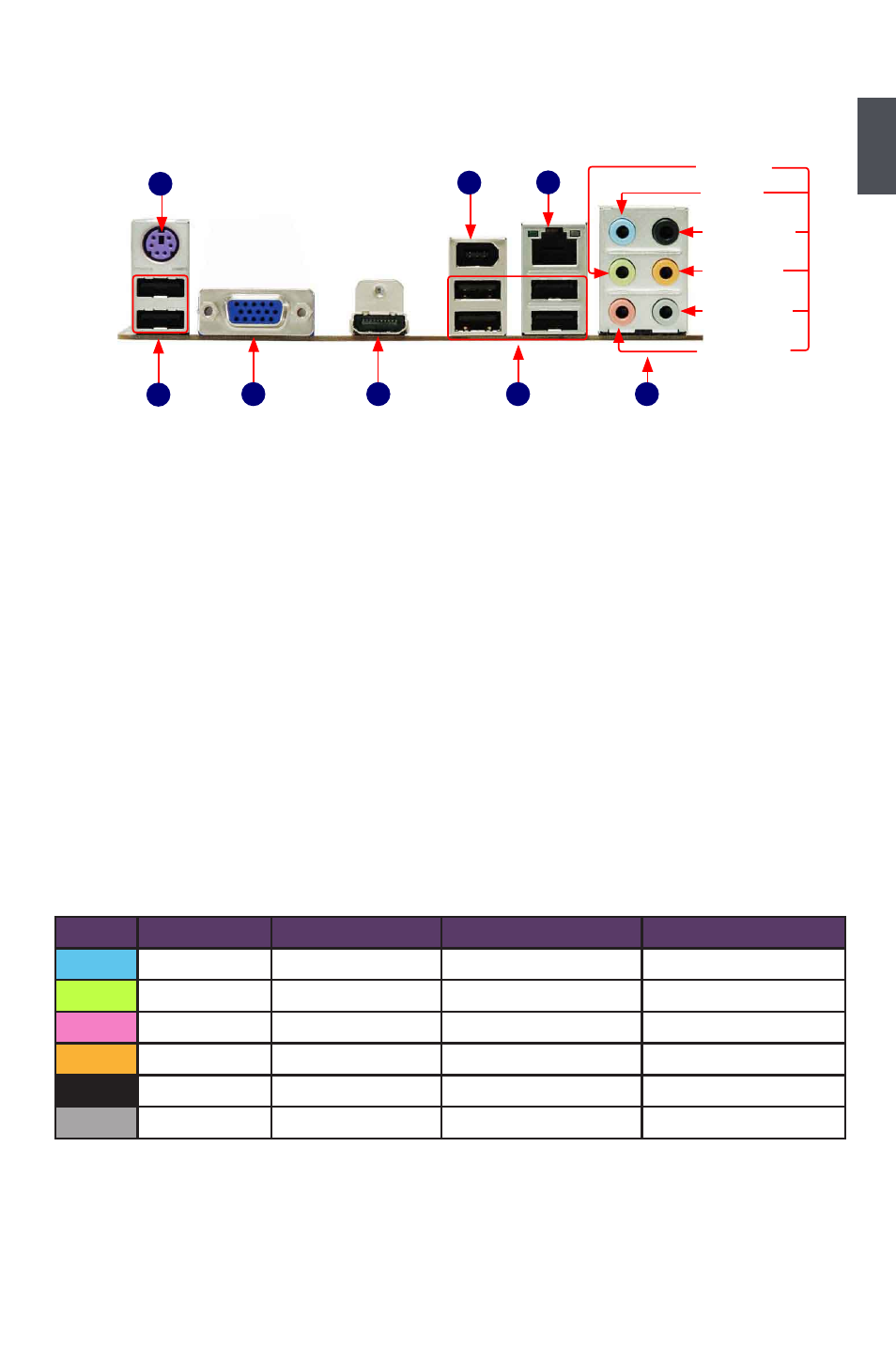

1-3 back Panel Connectors
VGA Port
LAN Port PS/2 Keyboard Port
Audio Ports
Line Out
Microphone In
Subwoofer
Rear Speaker
Side Speaker
Line In
6
3
USB Ports
4 5
1
2
USB Ports
4
7
1394a Port
HDMI Port
Port 2-channel 4-channel 5.1-channel 7.1-channel
Blue Line In Line In Line In Line In
Green Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink Microphone In Microphone In Microphone In Microphone In
Orange - - Center/Subwoofer Out Center/Subwoofer Out
Black - Rear Speaker Out Rear Speaker Out Rear Speaker Out
Grey - - - Side Speaker Out
