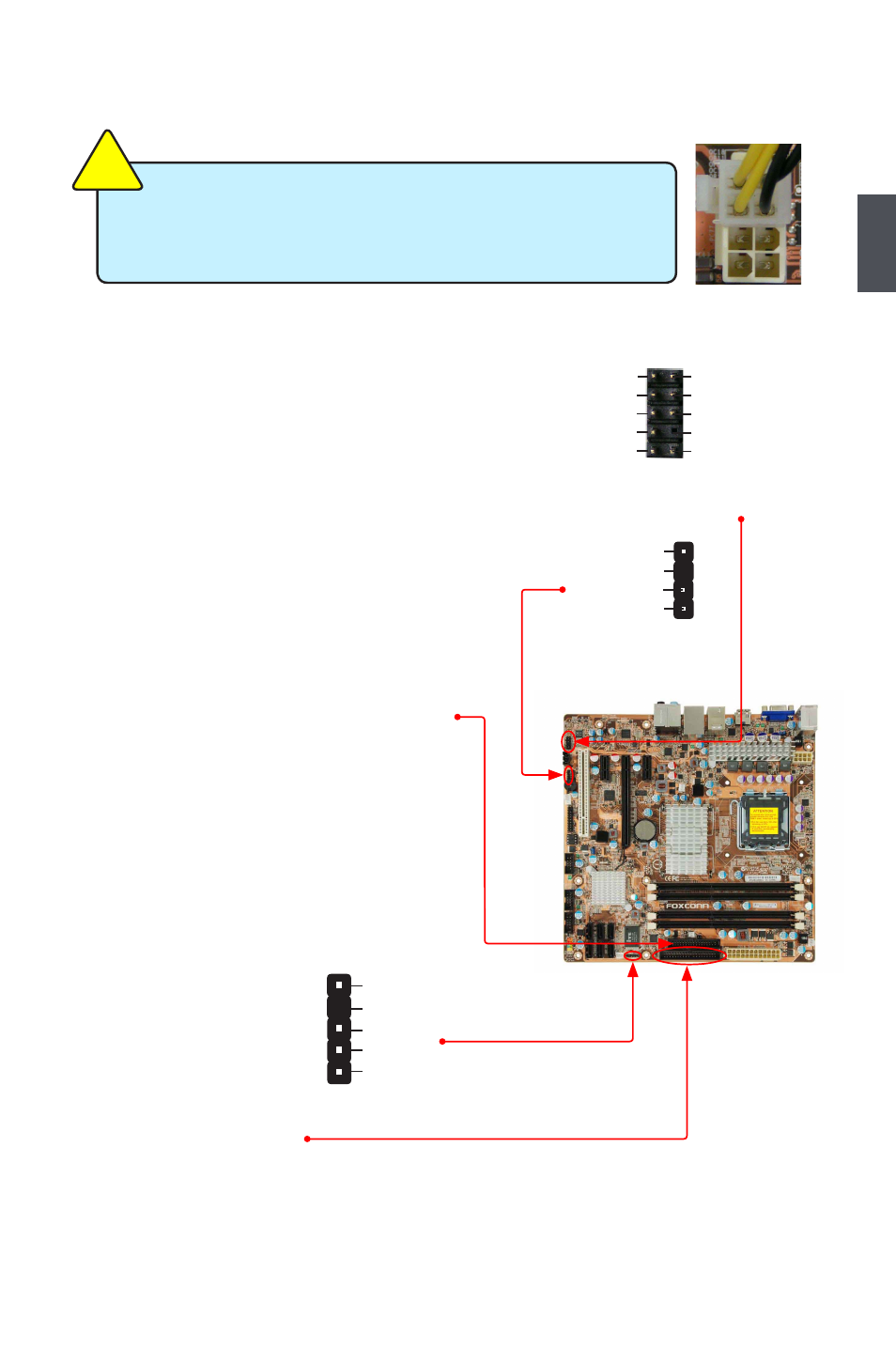

Audio Connector : f_AUDIo

The audio connector supports HD Audio standard. It
provides the Front Audio output choice.

S/PDIf oUT Connector : SPDIf_oUT

The connector is used for S/PDIF output.

Floppy Disk Drive Connector : FLOPPY

This motherboard includes a standard floppy disk
drive (FDD) connector, supporting 360KB, 720KB,
1.2MB, 1.44MB, and 2.88MB FDDs.

IrDA Connector : IR

This connector supports infrared wireless trans-
mitting and receiving device.

IDe Connector : PIDe

With the provided Ultra DMA IDE ribbon cable, you
can connect to any IDE type of hard disk and CD/
DVD ROM/RW drive.

SPDIF_OUT

+5V

EMPTY

SPDIF_OUT

GND

1
2
3
4

PORT1_L

PORT1_R

PORT2_L

SENSE_SEND

SENSE1_RETURN

PRESENCEJ

EMPTY

SENSE2_RETURN

AUD_GND

1 2

10

9

F_AUDIO

PORT2_R

1
2
3
4
5

+5V
EMPTY
IRRX

GND

IRTX

IR

Connect a 4-pin
power plug

We recommend you using an 8-pin ATX 12V power supply. If
you are using a 4-pin power supply, you need to align the ATX
power connector according to the picture on the right.
