Making connections DX-19L200A12
Using composite video (good)
To connect a DVD or Blu-ray player using composite
video:
1 Make sure that your TV’s power cord is unplugged
and the DVD or Blu-ray player is turned off.
2 Connect a composite cable (not provided) to the
VIDEO and L(MONO) AUDIO and R audio jacks on
the back of your TV and to the AV OUT jacks on the
DVD or Blu-ray player.
To play from a DVD or Blu-ray player using composite
video:
1 Turn on your TV, then press INPUT to open the
INPUT SELECT
list.
2 Press or to select Video, then press ENTER.
3 Turn on the DVD or Blu-ray player, then set it to the
output mode. See the documentation that came
with the device for more information.
Connecting a VCR
To connect a VCR:
1 Make sure that your TV’s power cord is unplugged
and the VCR is turned off.
2 Connect a composite cable (not provided) to the
VIDEO and L(MONO) AUDIO and R audio jacks on
the back of your TV and to the AV OUT jacks on the
VCR.
To play from the VCR:
1 Turn on your TV, then press INPUT to open the
INPUT SELECT list.
2 Press or to select Video, then press ENTER.
3 Turn on the VCR, then set it to the output mode. See
the documentation that came with the VCR for more
information.
Note
When you connect the audio using the L(MONO)
AUDIO and R audio jacks, the audio output is analog.

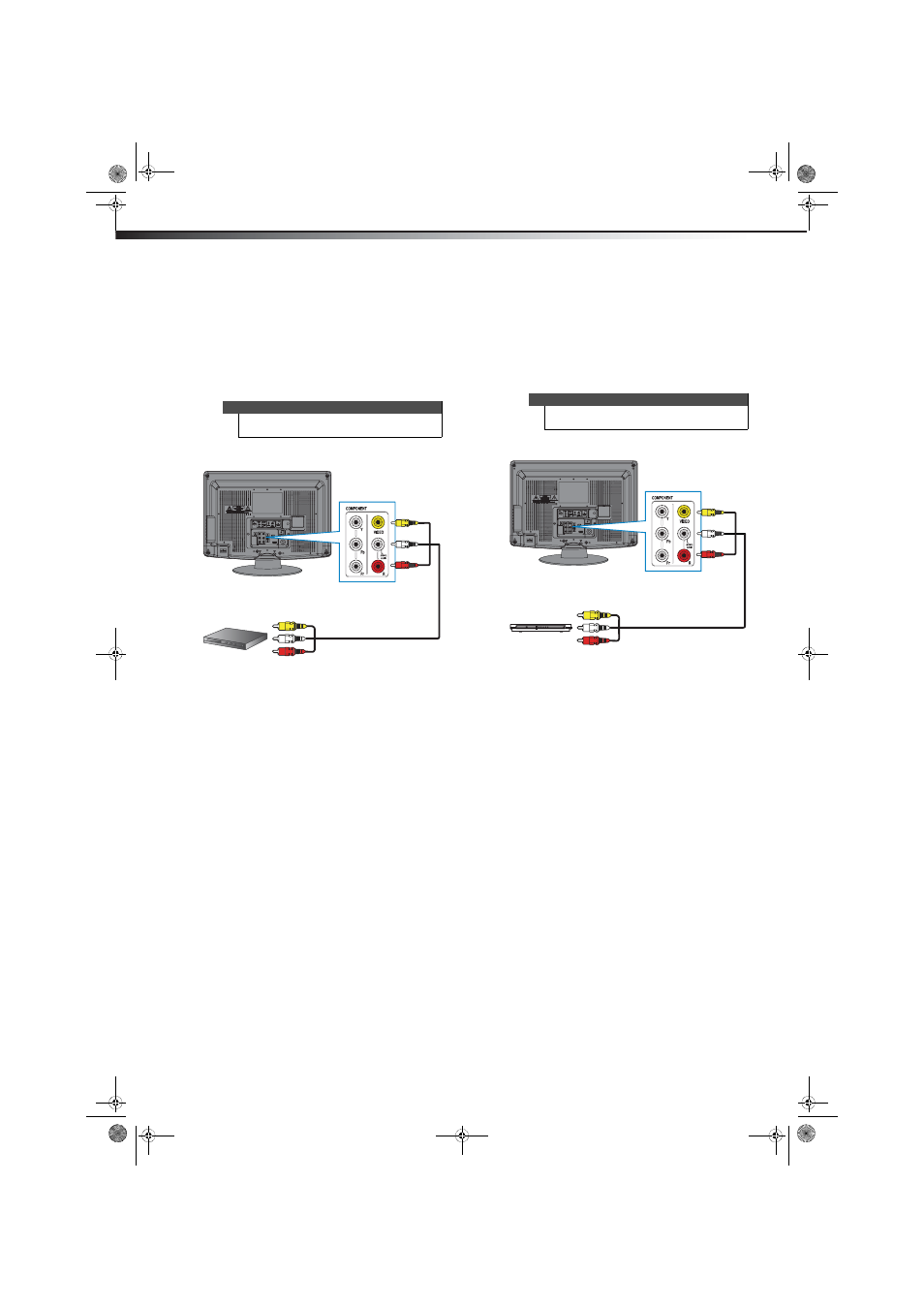

VIDEO IN
Back of TV
DVD or Blu-ray player
Cables are often color-coded to match color-coded jacks.
Connect yellow to yellow, red to red, and white to white.
Composite cable
Note
When you connect the audio using the L(MONO)
AUDIO and R audio jacks, the audio output is analog.
VIDEO IN
Back of TV
VCR
Cables are often color-coded to match color-coded jacks.
Connect yellow to yellow, red to red, and white to white.
Composite cable
