Making connections
11
DX-19L200A12
Using DVI device (same as HDMI but requires a sound
connection)
To connect a DVD or Blu-ray player using DVI:
1 Make sure that your TV’s power cord is unplugged
and the DVD or Blu-ray player is turned off.
2 Connect an HDMI-to-DVI cable (not provided) to the
HDMI IN jack on the back of your TV and to the DVI
OUT jack on the DVD or Blu-ray player.
3 Connect an audio cable with stereo mini plug (not
provided) to the PC/DVI AUDIO IN jack on the back
of your TV and to the AUDIO OUT jack on the DVD or
Blu-ray player.
To play from a DVD or Blu-ray player using DVI:
1 Turn on your TV, then press INPUT to open the
INPUT SELECT list.
2 Press or to select HDMI, then press ENTER.
3 Turn on the DVD or Blu-ray player, then set it to the
output mode. See the documentation that came
with the device for more information.
Using component video (better)
To connect a DVD or Blu-ray player using component
video:
1 Make sure that your TV’s power cord is unplugged
and the DVD or Blu-ray player is turned off.
2 Connect a component video cable (not provided) to
the COMPONENT IN/Y, P
B , P R jacks on the back of
your TV and to the COMPONENT OUT jacks on the
DVD or Blu-ray player.
3 Connect an audio cable (not provided) to the L
(MONO) AUDIO
and R audio jacks on the back of
your TV and to the L/R AUDIO OUT jacks on the
component video device.
To play from DVD or Blu-ray player using component
video:
1 Turn on your TV, then press INPUT to open the
INPUT SELECT
list.
2 Press or to select Component, then press
ENTER.
3 Turn on the DVD or Blu-ray player, then set it to the
output mode. See the documentation that came
with the device for more information.
Note
When you connect the audio using the PC/DVI
AUDIO IN jack, the audio output is analog.

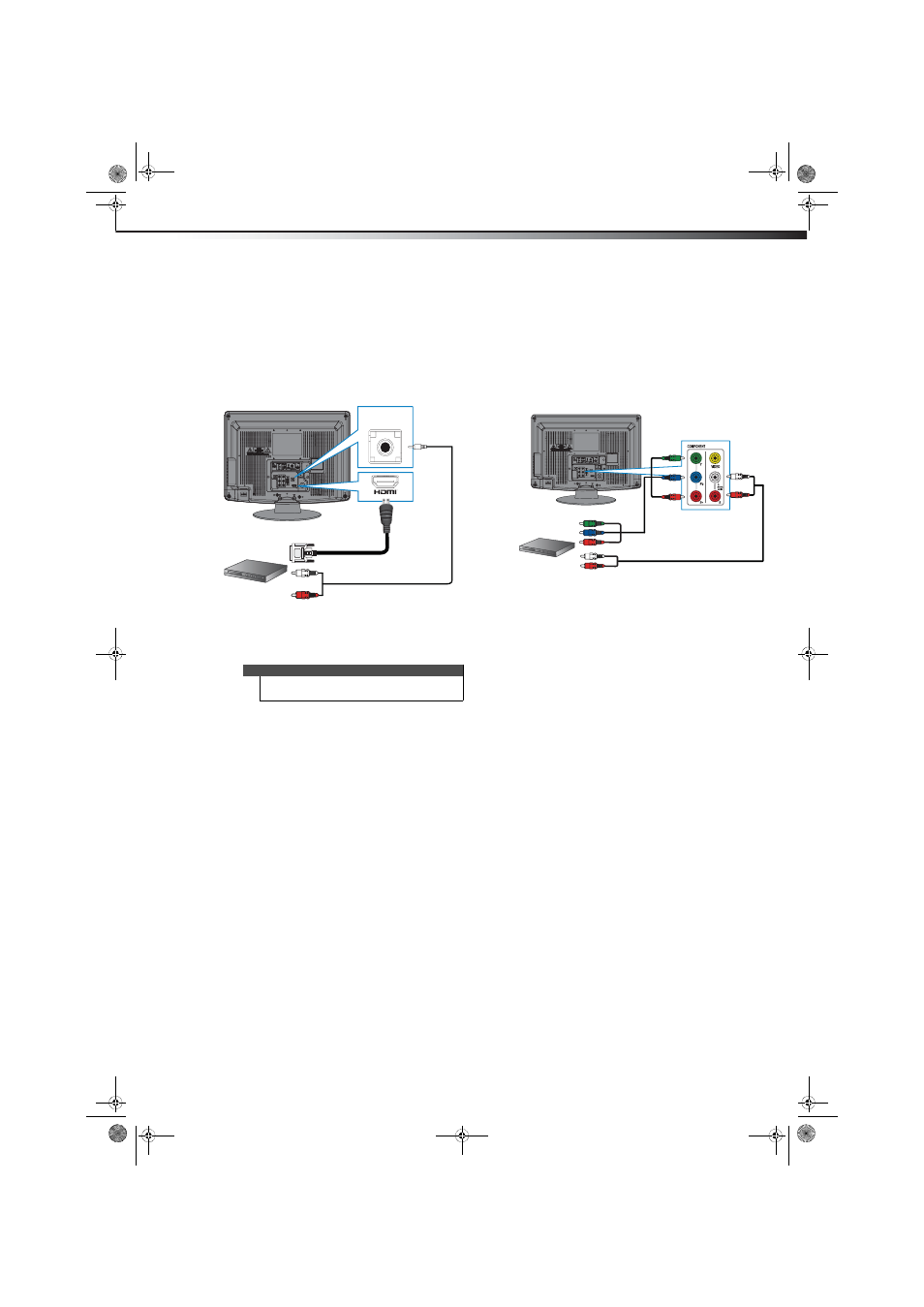

PC/DVI
AUDIO IN
Back of TV
DVD or Blu-ray player
HDM-to-DVI cable
Audio cable
VIDEO IN
Back of TV
DVD or Blu-ray player
Component video cable
Audio cable
Cables are often color-coded to match
color-coded jacks.
