Making connections
9
DX-19L200A12

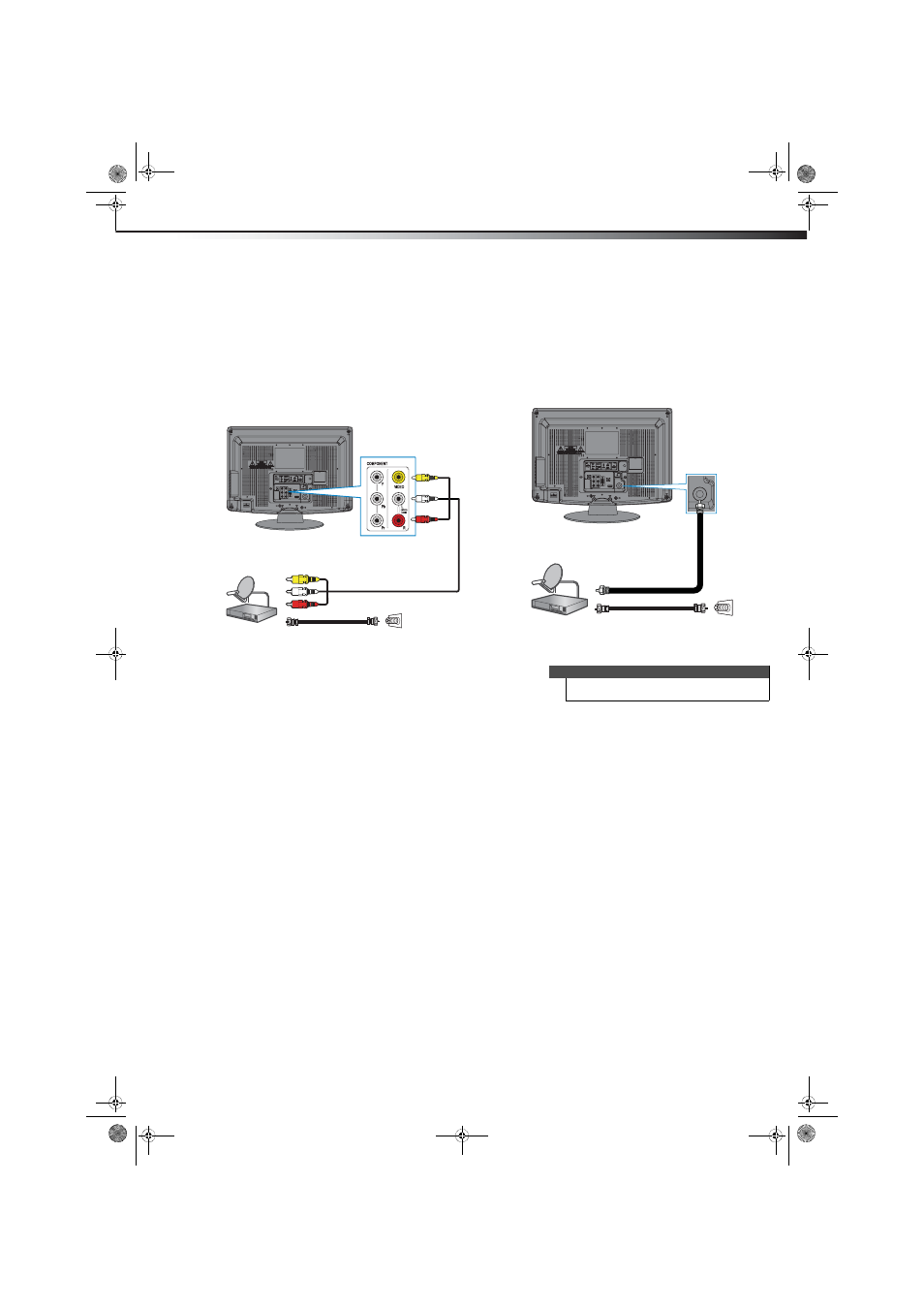

Using composite video (good)
To connect a cable or satellite box using composite
video:
1 Turn off your TV and all connected equipment.
2 Connect the incoming cable from the cable wall jack
to the cable-in jack on the cable or satellite box.
3 Connect a composite cable (not provided) to the
VIDEO, L(MONO) AUDIO ,
and R jacks on the back
of your TV and to the composite video and audio out
jacks on the cable or satellite box.
4 Turn on your TV, then turn on the cable or satellite
box.
5 Go through the setup wizard on page 15.
Using coaxial (good)
To connect a cable or satellite box using coaxial:
1 Turn off your TV and all connected equipment.
2 Connect the incoming cable from the cable wall jack
to the cable-in jack on the cable or satellite box.
3 Connect a coaxial cable (not provided) to the ANT.
IN jack on the back of your TV and to the coaxial out
jack on the cable or satellite box.
4 Turn on your TV, then turn on the cable or satellite
box.
5 Go through the setup wizard on page 15.
VIDEO IN
Back of TV
Cable or satellite box
Composite cable
Cables are often color-coded to
match color-coded jacks.
Cable TV wall
outlet 75 ohm cable
Notes
• Do not tie the coaxial cable together with the
power cord or other cables.
Cable or satellite box
Back of TV
Coaxial cable
Cable TV
wall outlet Coaxial cable
