910Ub Owner’s Manual

7

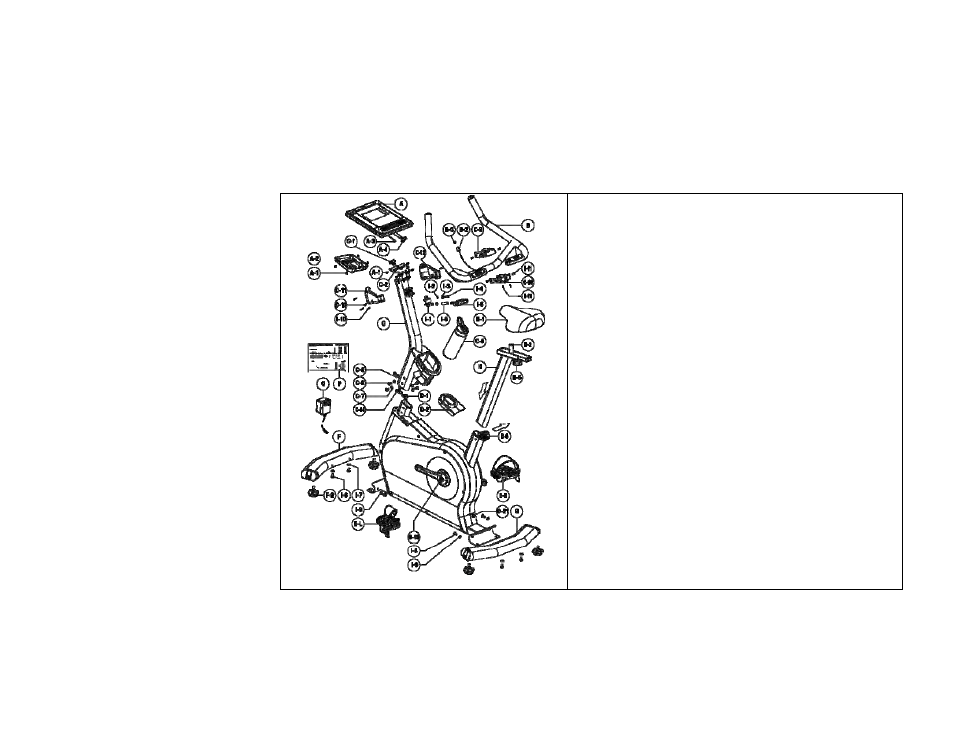

CARTON CONTENTS

Parts List

Item

Description

Quantity

A

Console Assembly

1

A‐1

Console Mounting Screw

6

A‐2

Console Hinge Cover

1

A‐3

Pulse Wire Harness Connector – Console

1

A‐4

Main Wire Harness Connector – Console

1

B

Handlebar Assembly

1

B‐2

Pulse Wire Harness Connector – Handlebar

1

B‐3

Pulse Wire Grommet

1

C

Console Mast Assembly

1

C‐1

Main Wire Harness Connector – Upper Mast

1

C‐2

Console Hinge Mount

1

C‐5

Water Bottle

1

C‐6

Allen Bolt

5

C‐7

Flat Washer

4

C‐8

Curved Washer

1

C‐9

Handlebar Pivot Cover – Upper

1

C‐10

Handlebar Pivot Cover – Lower

1

C‐11

Upper Console Mast Cover – Left

1

C‐12

Upper Console Mast Cover – Right

1

C‐13

Phillips Screw

2

C‐14

Main Wire Harness Connector – Lower Mast

1

D‐1

Main Wire Harness Connector – Frame

1

D‐2

Lower Console Mast Cover

1

D‐6

Seat Mast Height Adjustment Knob

1

D‐16

Crank Fixing Bolt

1

D‐21

Power Input Jack

1

E‐L/R

Pedal & Strap Set

1

F

Front Stabilizer Assembly

1

F‐2

Stabilizer Foot

4

G

Rear Stabilizer Assembly

1

H

Seat Mast / Seat Slide Assembly

1

H‐1

Seat

1

H‐2

Seat Slide Assembly

1

H‐5

Seat Slide Adjustment Knob

1

I‐1

Handlebar Clamp

1

I‐2

Flat Washer

2

I‐3

Lock Washer

2

I‐4

Allen Bolt

1

I‐5

Spacer – Plastic

1

I‐6

Handlebar Adjustment T‐Handle

1

I‐7

Flat Washer

4

I‐8

Stabilizer Fixing Bolt

8

I‐9

Curved Washer

4

I‐10

Phillips Screw

5

I‐11

Phillips Screw

4

O

Power Supply/Adaptor

1

P

Assembly Hardware Kit

1
