RJ45 Fast-Ethernet Port

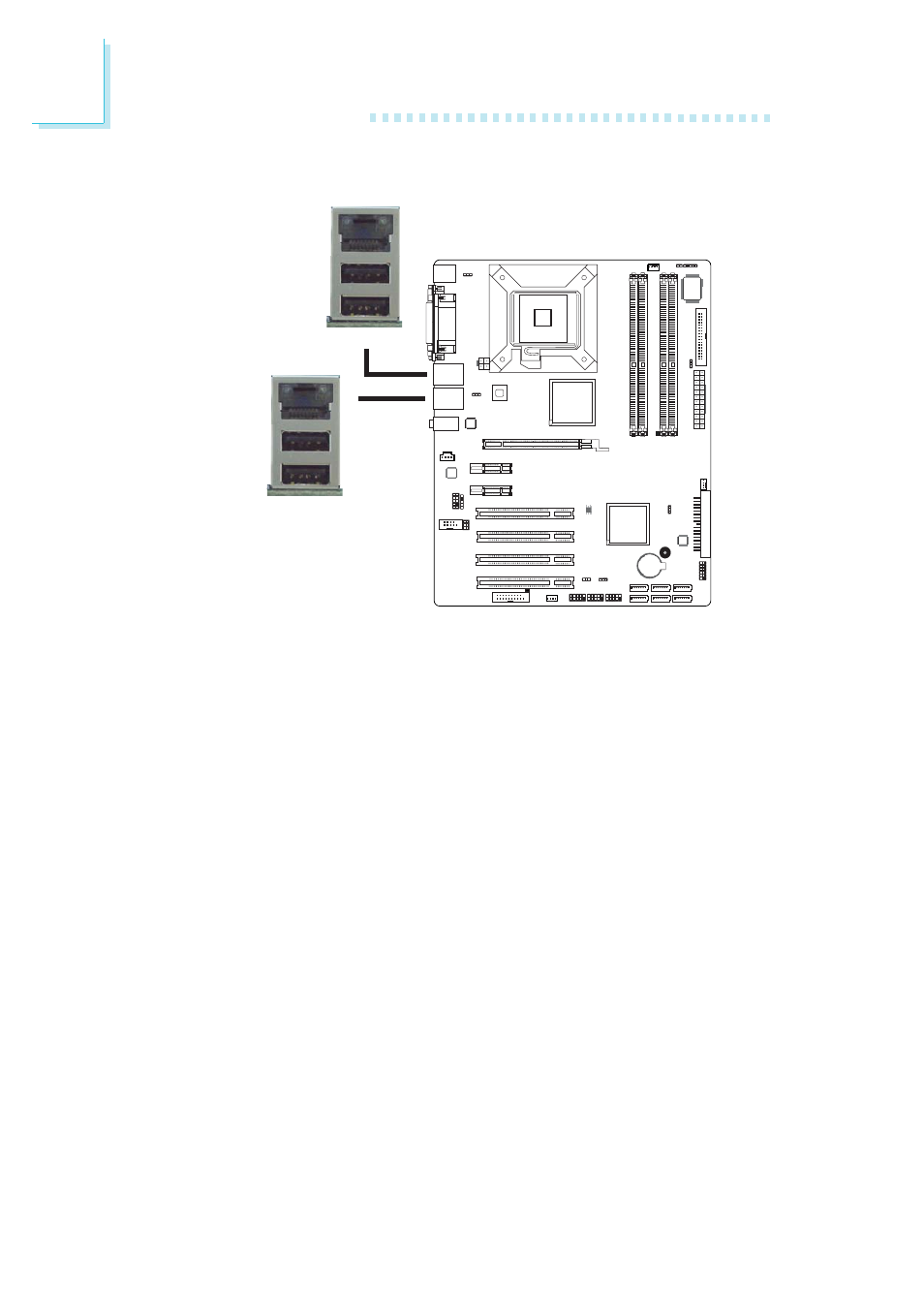

The dual LAN ports allow the G7B630-N/NR system board to
connect to a local area network by means of a network hub. The
Intel 82566DM PCIE Gigabit chip controls LAN 2 and the Marvell
88E8056 PCIE Gigabit chip controls LAN 1.
G7B630-B is only equipped with the LAN 1 port.
BIOS Setting
Configure the onboard LAN in the Integrated Peripherals submenu
(“Onboard Device” section) of the BIOS. Refer to chapter 3 for
more information.
Driver Installation
Install the LAN drivers. Refer to chapter 4 for more information.
W
LAN 2
LAN 1
W
(G7B630-N/NR only)
