39
2
Hardware Installation

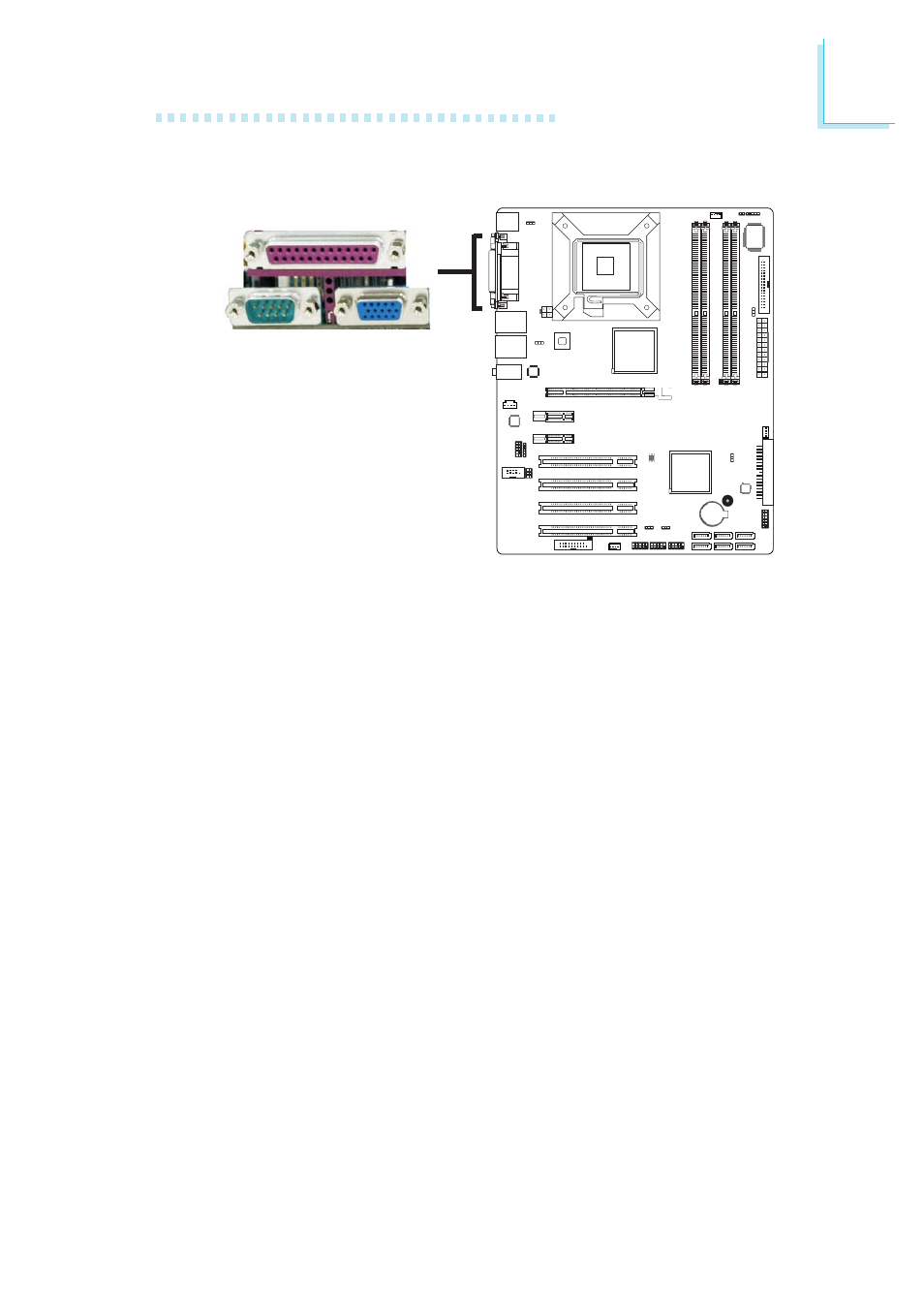

VGA Port
The VGA port is used for connecting a VGA monitor. Connect the
monitor’s 15-pin D-shell cable connector to the VGA port (Blue) at
location CN2. After you plug the monitor’s cable connector into the
VGA port, gently tighten the cable screws to hold the connector in
place.
BIOS Setting
Configure the onboard VGA in the Advanced Chipset Features
submenu of the BIOS. Refer to chapter 3 for more information.
Driver Installation
Install the graphics driver. Refer to chapter 4 for more information.
VGA
W
