Page 31
31
2
Hardware Installation
JP2, JP3 and JP4 are used to select the power of the USB ports.
Selecting 5V_standby will allow you to use the USB keyboard or
USB mouse to wake up the system.
BIOS Setting
“USB KB Wake-Up From S3” in the Power Management Setup
submenu of the BIOS must be set to Enabled. Refer to chapter 3
for more information.
Important:
If you are using the Wake-On-USB Keyboard/Mouse function for
2 USB ports, the 5V_standby power source of your power sup-
ply must support
≥1.5A. For 3 or more USB ports, the
5V_standby power source of your power supply must support
≥2A.

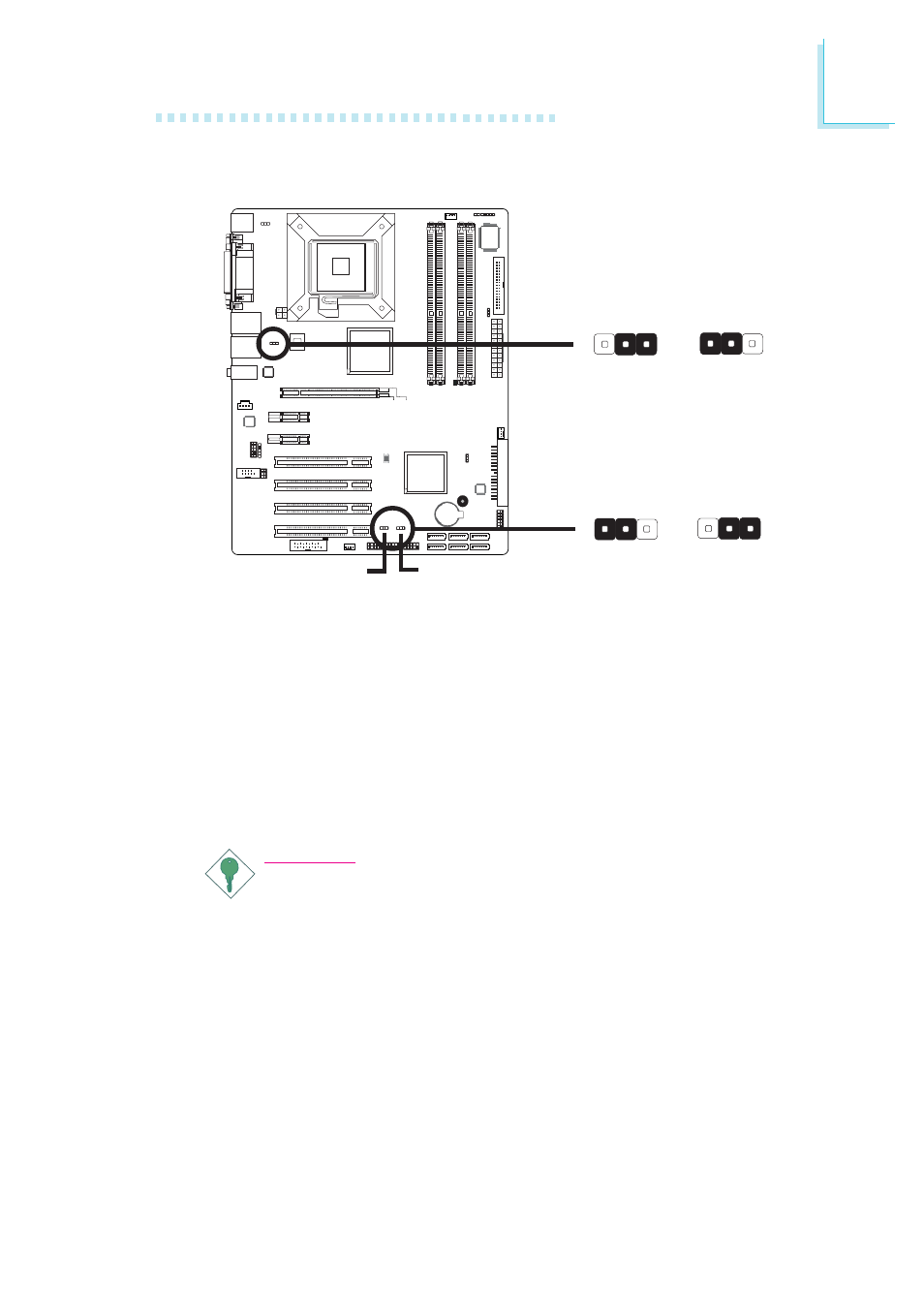

USB Power Select
X
USB 0-3
(JP2)
2-3 On:
5V_standby
1-2 On: 5V
(default)
2-3 On:
5V_standby
1-2 On: 5V
(default)
X
USB 8-9 (JP4)
1
3
2
1
3
2
USB 4-7 (JP3)
1
3
2
1
3
2
