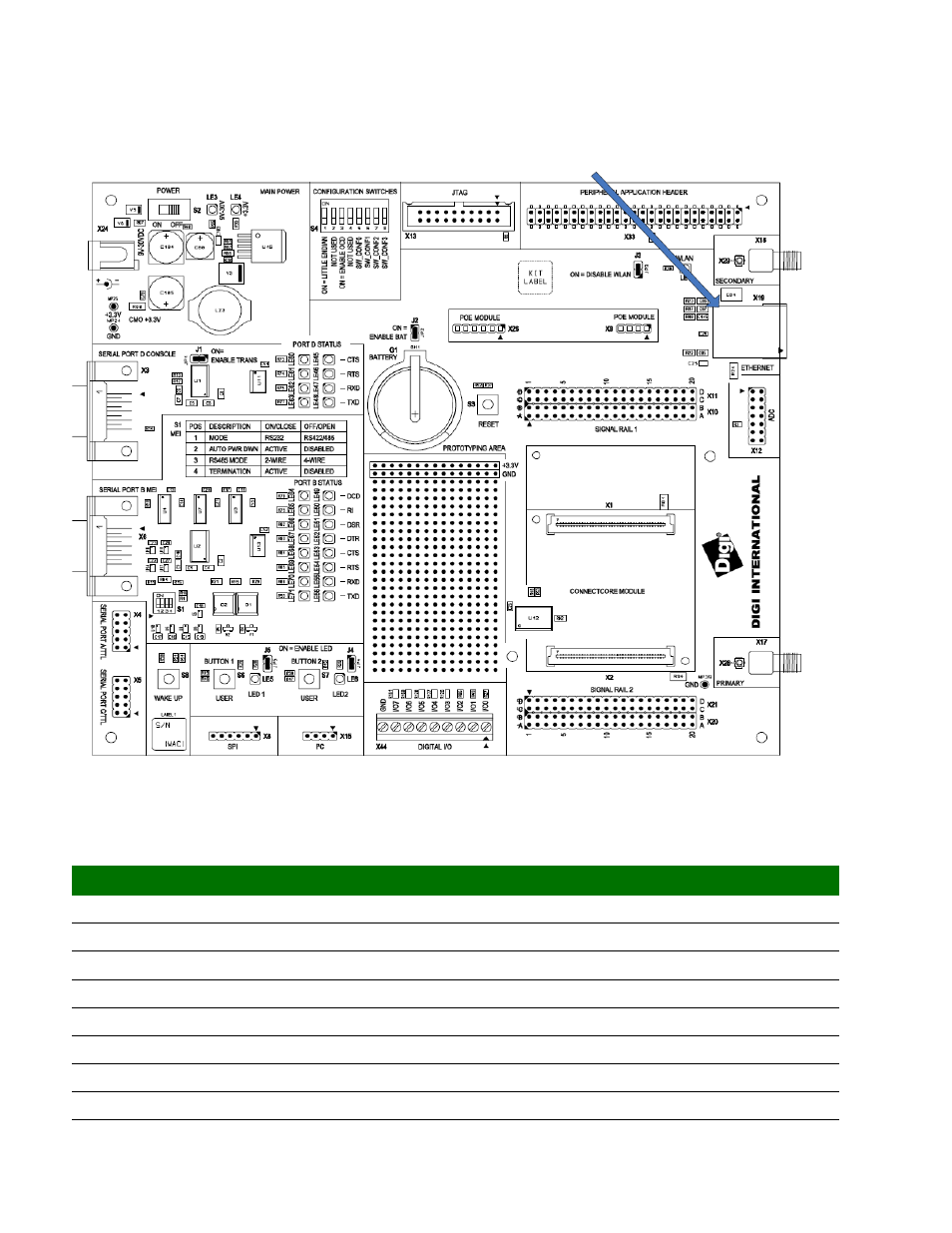

RJ-45 pin
allocation, X19
RJ-45 connector pins are configured as shown:
Ethernet RJ-45, X19
Pin
Signal
802.3af End-Span (mode A)
802.3af Mid-Span (Mode B)
Description
1
TXD+
Negative V
Port
Transmit data +
2
TXD-
Negative
V
Port
Transmit data -
3
RXD+
Positive V
Port
Receive data +
4
EPWR+ Positive
V
Port
Power from switch +
5
EPWR+
Positive V
Port
Power from switch +
6
RXD- Positive
V
Port
Receive data -
7
EPWR+
Negative V
Port
Power from switch -
8
EPWR+
Negative V
Port
Power from switch -
