Page 13
Fast Ethernet Switching System User’s Guide
Introduction
5
Rear Panel
The three pronged power plug, ventilation fan and the on/off switch are located at the rear
of the DES-5024 displayed in Figure 2. The DES-5024 will work with AC in the range
100-240 VAC, 50-60 Hz. The power requirements are indicated on the rear panel of the
DES-5024. When installing the DES-5024, leave enough room to allow you to plug in the
power cable.
There are heat vents located on the sides. The fans and the vents help to cool the DES-
5024. Always leave two inches of space around the DES-5024 so that air can circulate
and cool the DES-5024.

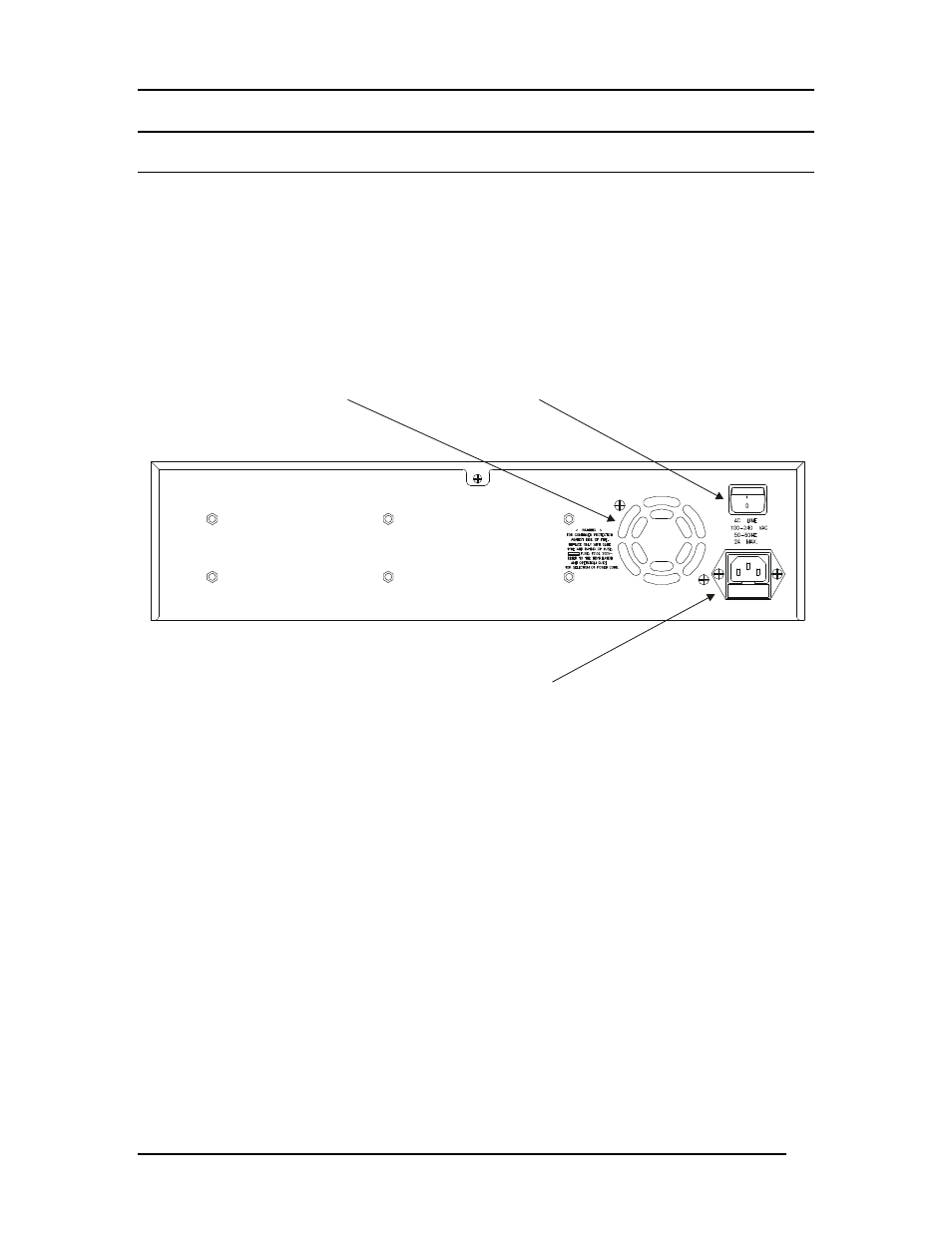

Figure 2: DES-5024 Rear Panel
Fan
Power On/Off switch
Three pronged power plug
