KP-10 External Keypad

Revision 1

Operation

MN/KP10.IOM

19

3.2 S

INGLE

RFT C

OMMUNICATIONS

3.2.1 K

EYPAD

V

ARIATIONS FOR AN

RFT

When the KP-10 is being used with a single-system RFT, the valid function keys are:

FS

MS

AS

Scroll

OS

RESET

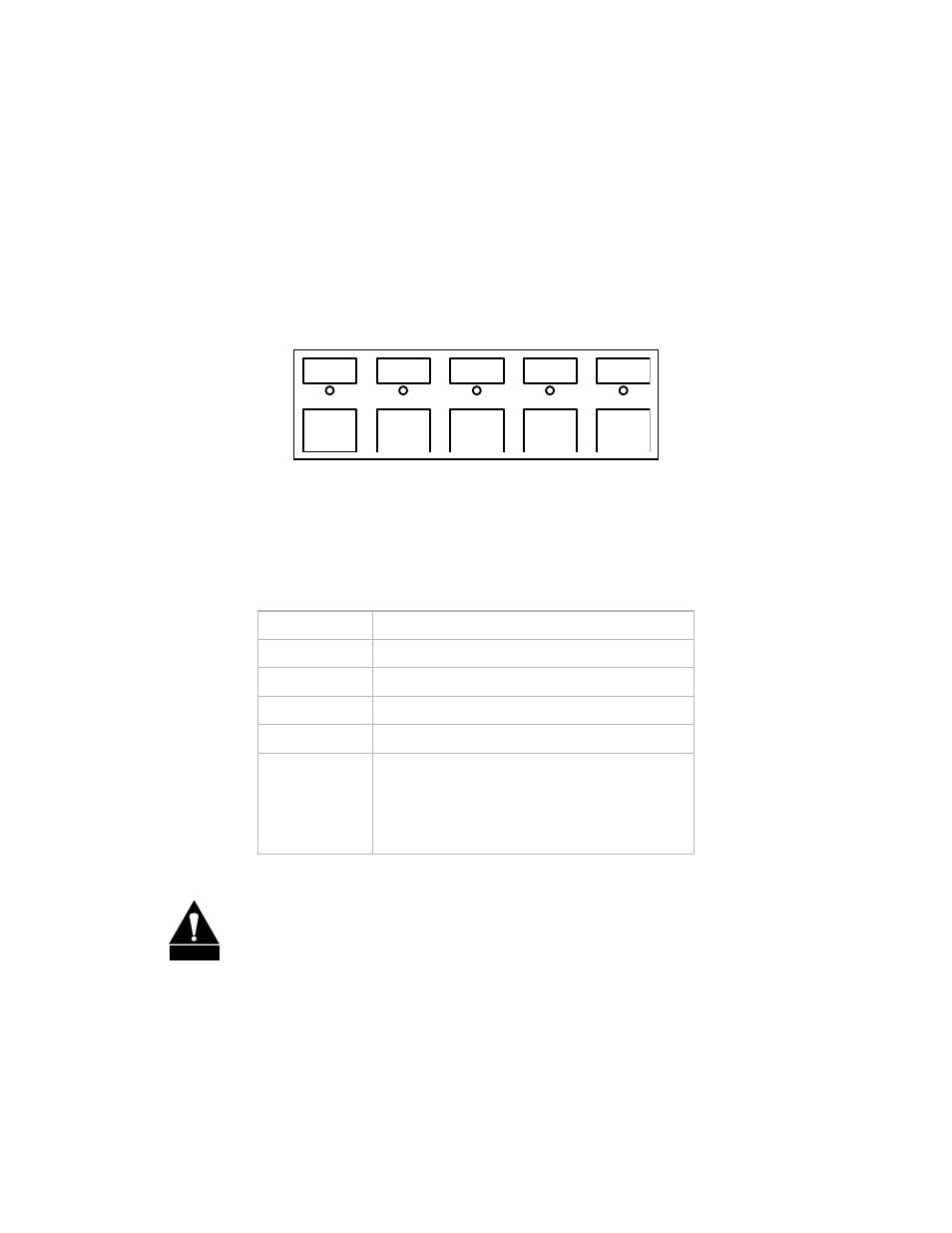

Figure 6. Function Keys for use with an RFT

Table 9. Descriptions of Function Keys used with an RFT

Function Key

Description

[RESET]

Reset External Keypad

[OS]

Switch Operation Status

[FS]

Switch Fault Status

[MS]

Switch Maintenance Status

[AS]

Switch Address (see Note)

Note: The key labeled [KP ON] performs the
[AS] function.

CAUTION

Make sure the [SHIFT] indicator LED is OFF before using these keys.
