Figure 4. rsu-503 external connections – Comtech EF Data KP-10 User Manual
Page 20
KP-10 External Keypad
Revision 1
Operation
MN/KP10.IOM
10
REMOTE
RECEPTACLE

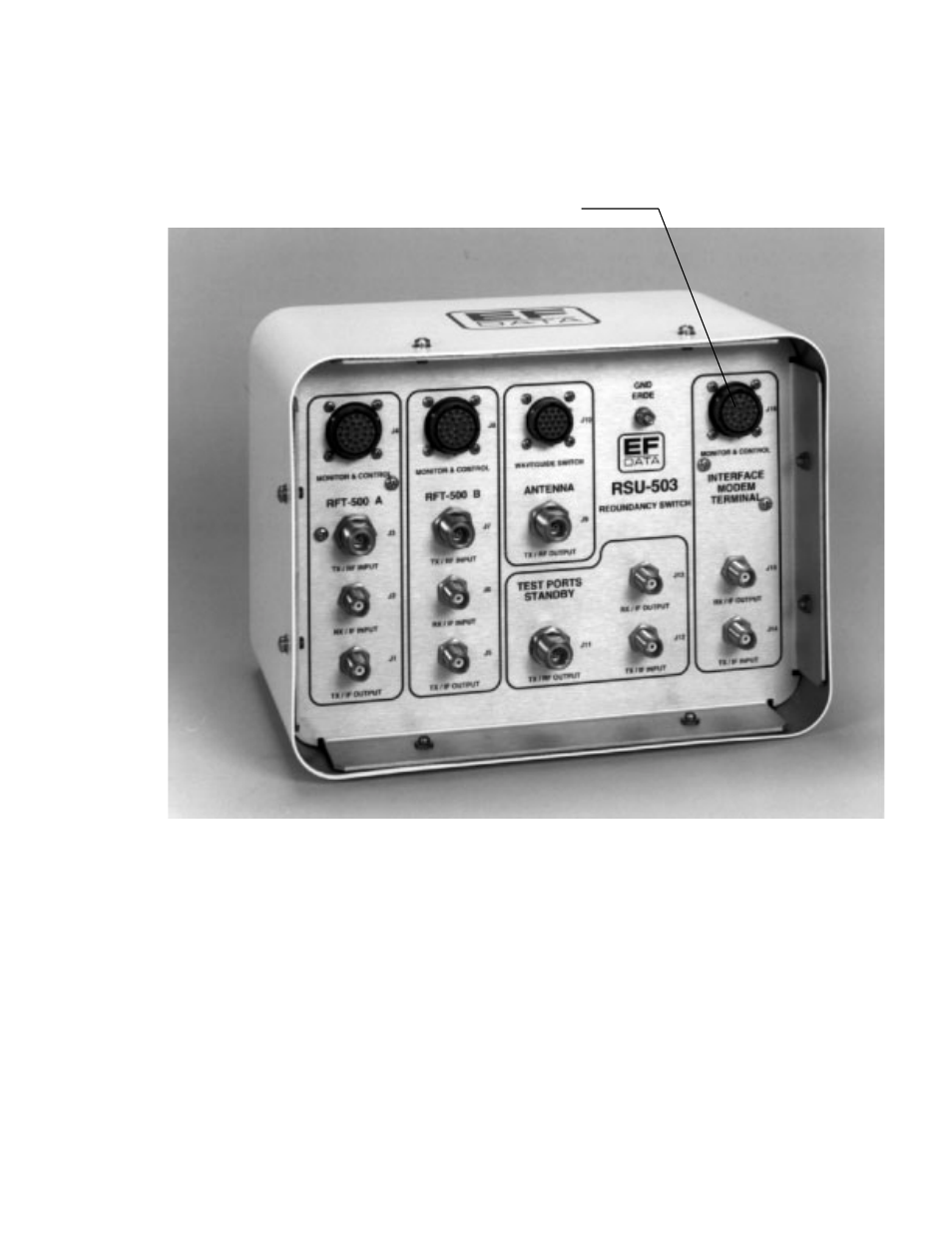

Figure 4. RSU-503 External Connections
During initial setup of a redundant system, connect the KP-10 to each component
directly. After initial setup, it is possible to connect the KP-10 to the RSU, and access
each component by selecting the individual component address.
Note: Connections for other RFTs and RSUs are similar. In case of a communication failure
with the KP-10, disconnect the cable and then reconnect it, to perform a reset.
