CMR-5930 Digicast Media Router PID Filter ASI Revision A
Software Upgrade MN/PIDFILDC.IOM
A.3 Telnet or Terminal Interface
Access the Administration Menu (Figure A-2):
a) Select (D) for Download Image .
b) At the “Image type” prompt, enter 1 for Application or 2 for FPGA.
c) Enter the TFTP IP server address. Once the TFTP IP server address is
entered, the software update will begin to download.
Do
NOT power the unit down during the upgrade process.
IMPORTANT
d) When the update is complete, the message “ Press any key to continue ”
will be displayed (Figure A-3).
e) When the unit has been upgraded, reset the unit by selecting (R) for Reset
and ‘ Y’ to confirm the reset.

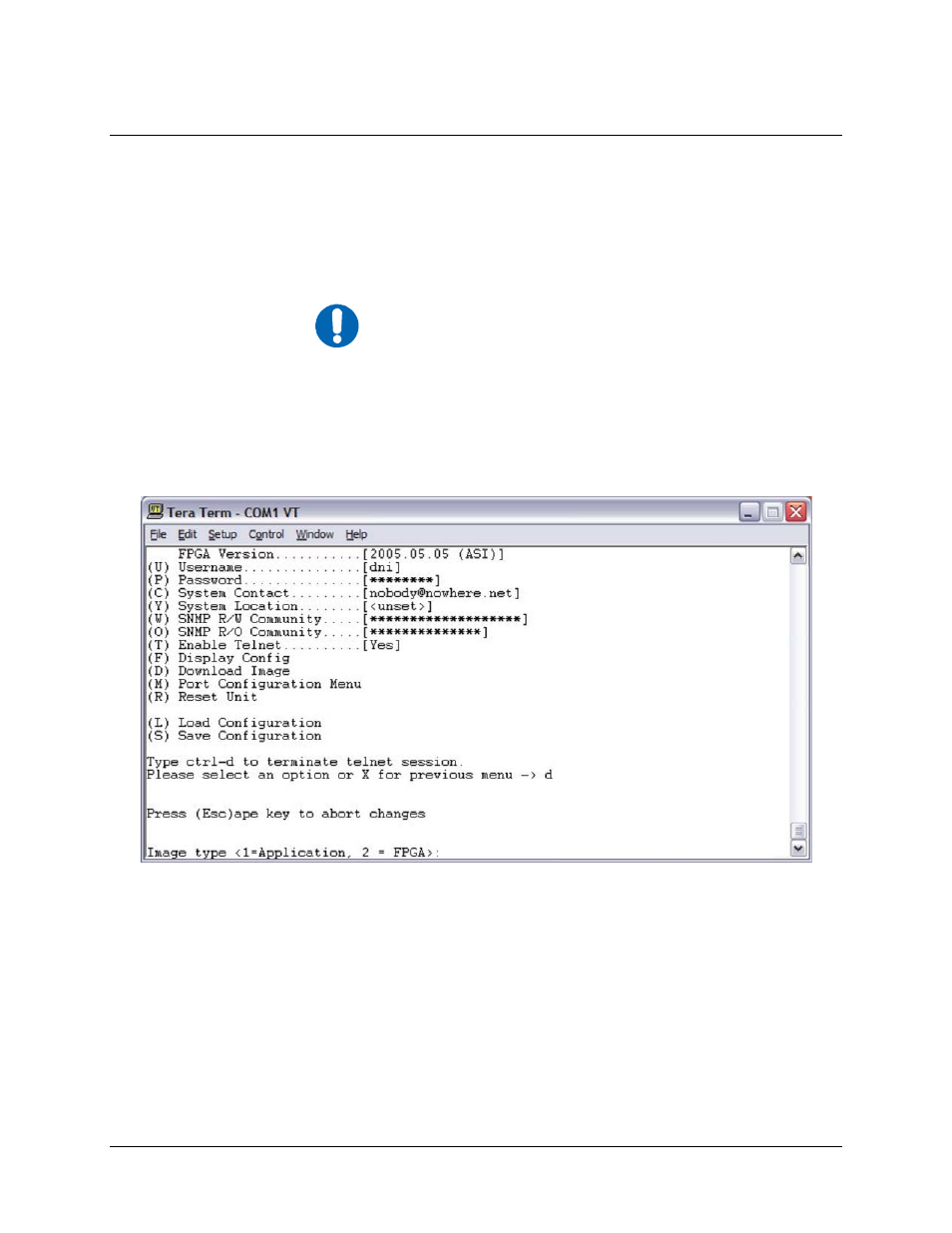

Figure A-2. Sample TFTP (Telnet shown)
A–3
