CMR-5930 Digicast Media Router PID Filter ASI Revision A
Device Management via User Interfaces MN/PIDFILDC.IOM
4.2.3 Network Configuration

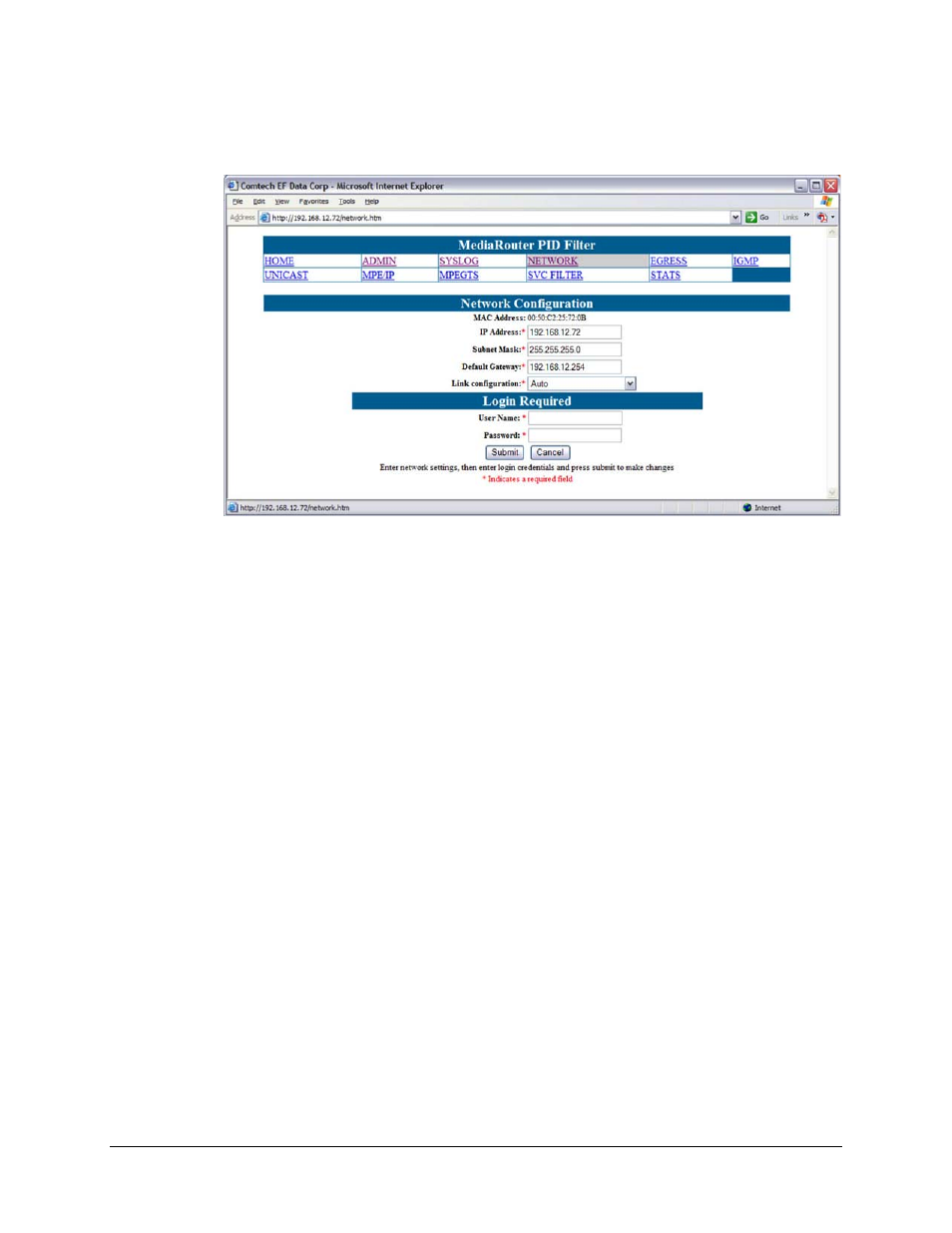

Figure 4-5. Network Configuration page
The Network Configuration page has the following configurable parameters:
IP Address
The IP Address assigned to the CMR-5930’s LAN interface. The IP Address is
entered in dotted decimal format.
Subnet Mask
The Subnet Mask assigned to the CMR-5930’s LAN interface. The Subnet Mask
is entered in dotted decimal format and is typically 255.0.0.0 for an A-Class
mask, 255.255.0.0 for a B-Class mask, or 255.255.255.0 for a C-Class mask.
Default Gateway
The Default Gateway assigned to the CMR-5930’s LAN interface. The Default
Gateway is entered in dotted decimal format and must be within the subnet of the
IP Address assigned to the LAN interface. The Default Gateway is the address of
a local router to which all non-local subnet traffic will be directed.
Login Required
A user name and password are required to make any changes to the CMR-5930
configuration.
4-5
