CMR-5930 Digicast Media Router PID Filter ASI Revision A
Device Management via User Interfaces MN/PIDFILDC.IOM
4.2.8 ASI MPEG Transport Stream Route Configuration

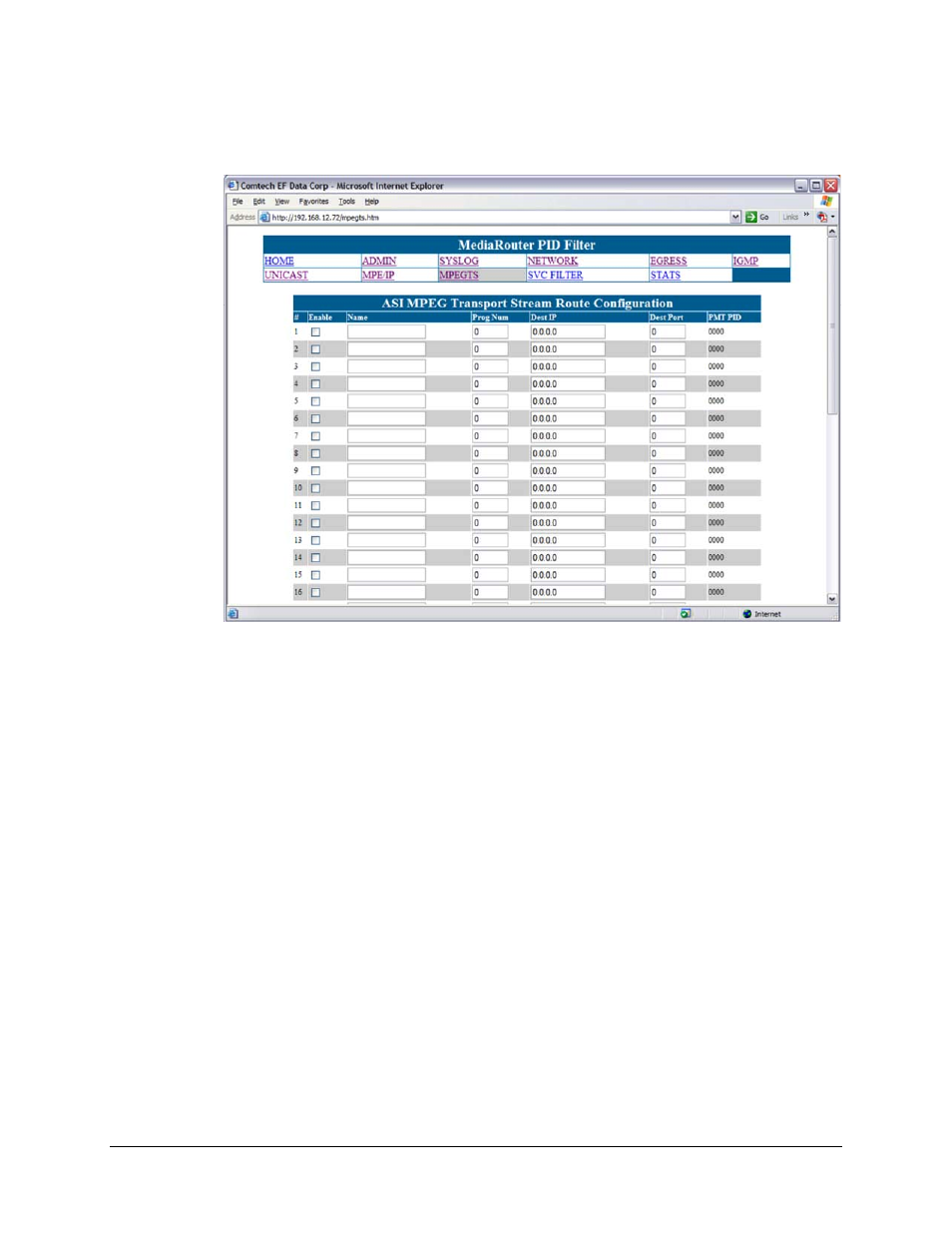

Figure 4-10. ASI MPEG Transport Stream Route Configuration page
The user must select, via the pulldown, under which input interface the PIDs will be
configured.
Enable
Enables or disables the route.
Name
The name of the incoming program that is extracted from the Program Service
Information.
Program Number
The program number to be routed to the Ethernet as Transport Stream over IP.
PMT PID Number
The PMT PID to be routed to the Ethernet as Transport Stream over IP.
Destination IP
The IP address to be used when routing the Transport Stream over Ethernet IP.
Port Number
The Port Number to be used when routing the Transport Stream over Ethernet IP.
4-10
