CMR-5930 Digicast Media Router PID Filter ASI Revision A
Interface Pinouts MN/PIDFILDC.IOM

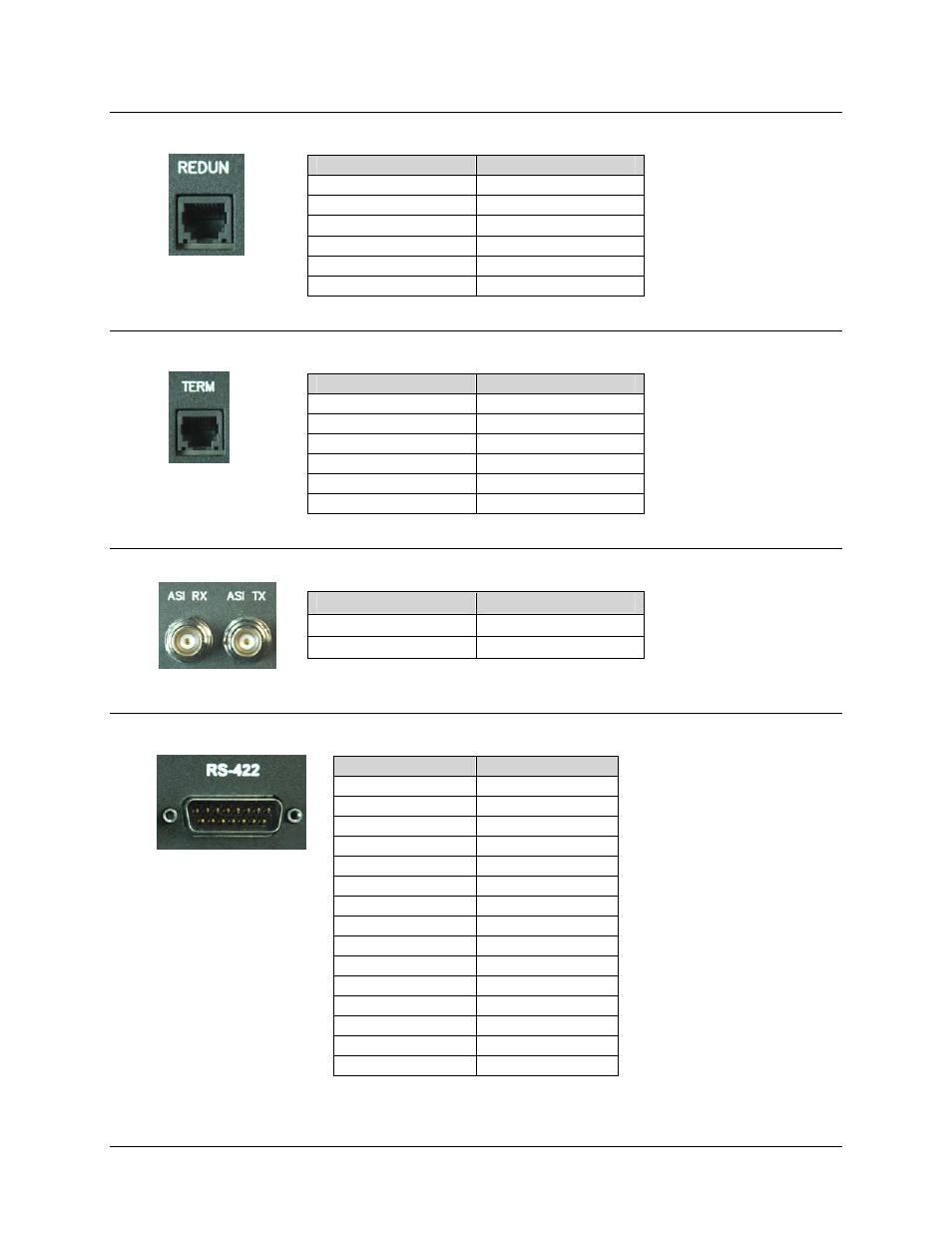

3.4 RJ-12 Redundancy (FUTURE)
Pin Definition
1 GND
2 TXD
3 RXD
4 GND
5 N/C
6 N/C
3.5 RJ-12 Terminal
Pin Definition
1 GND
2 TXD
3 RXD
4 GND
5 N/C
6 N/C
3.6 BNC ASI (Typical RX and TX)
Pin Definition
Center 8B/10B 270 Mbps
Outer Ring GND
3.7 RS-422
Pin Definition
1 GND
2 N/C
3 N/C
4 ETxCB(-)
5 TxCB(-)
6 TxDA(-)
7 RxCB(-)
8 RxDB(-)
9 Signal Ground
10 N/C
11 ETxCA(+)
12 TxCA(+)
13 TxDA(+)
14 RxCA(+)
15 RxDA(+)
3-2
