Comtech EF Data M&C Software for Windows - Manual (Page 30)

Monitor and Control Software for Windows Revision 4
Operation MN/M-CWIN.IOM
2–14
The ACQUIRE COMMUNICATIONS button loads the Acquire Communications dialog
box (Figure 2-13) and proceeds to run through all combinations of address, baud, and
parity to find a response from a lost-but-connected RF terminal.

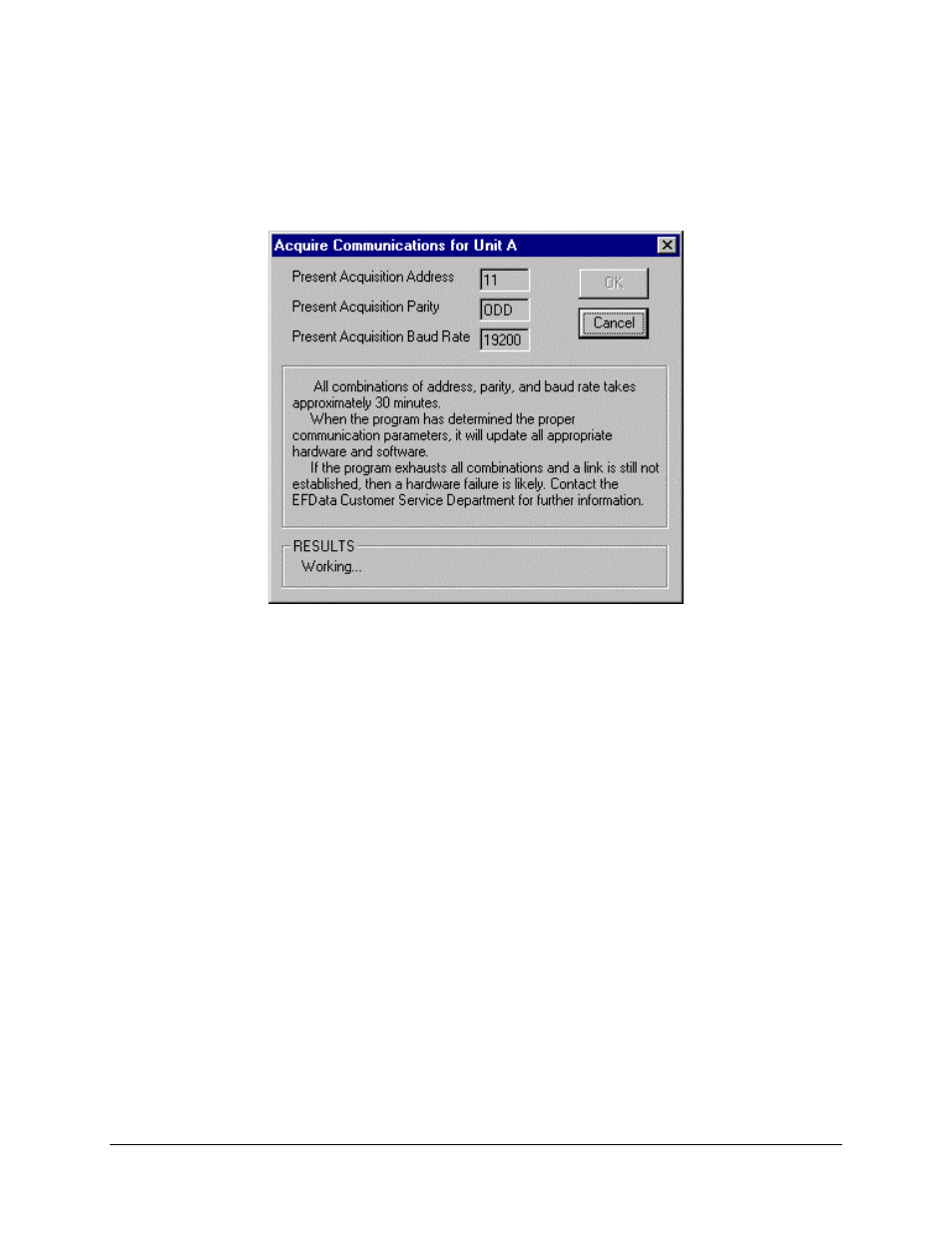

Figure 2-13. Acquire Communications Dialog Box
The utility functions frame listed at the bottom half of each panel are different for each
RF terminal. These values are allowed to be modified using the MODIFY, CANCEL, and
SEND buttons described earlier in Section 2.3.1.
