Monitor and Control Software for Windows Revision 4
Operation MN/M-CWIN.IOM
2–3
2.1.1.1 Communications Dialog Box
The communications dialog box allows settings of baud rate, parity, and address selection
for each individual RF terminal or RSU-503 device.
The dialog box may appear differently, depending upon the configuration chosen on the
configuration dialog box.
Example:
Single thread systems will only allow access to the center frame.

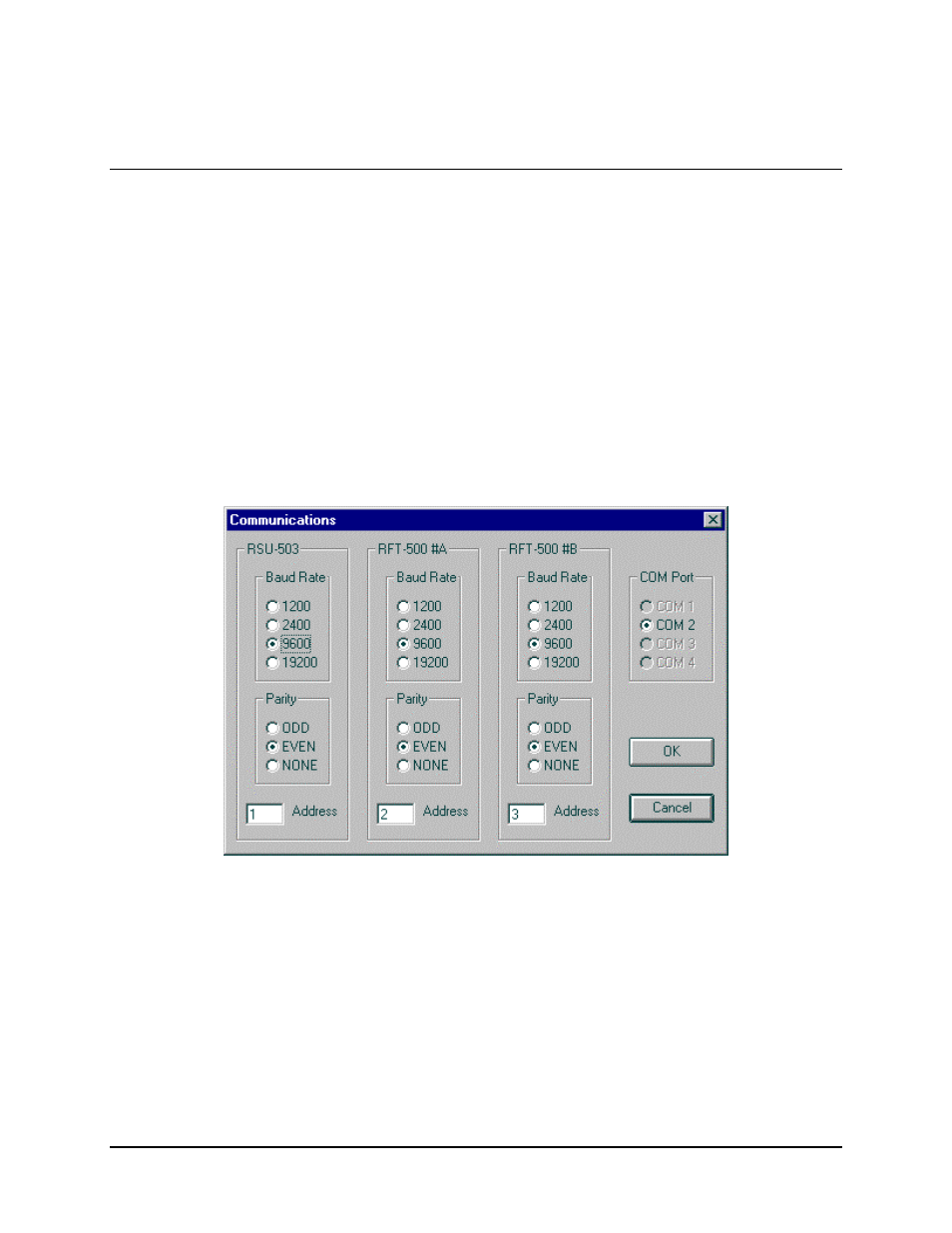

Figure 2-2 shows the dialog box as it appears for a redundant RFT-500 system using
COM port 2 for communication.
Figure 2-2. Communications Dialog Box
