Satellite Terminal System Revision 2
Equipment Mounting MN/KST2000L.IOM

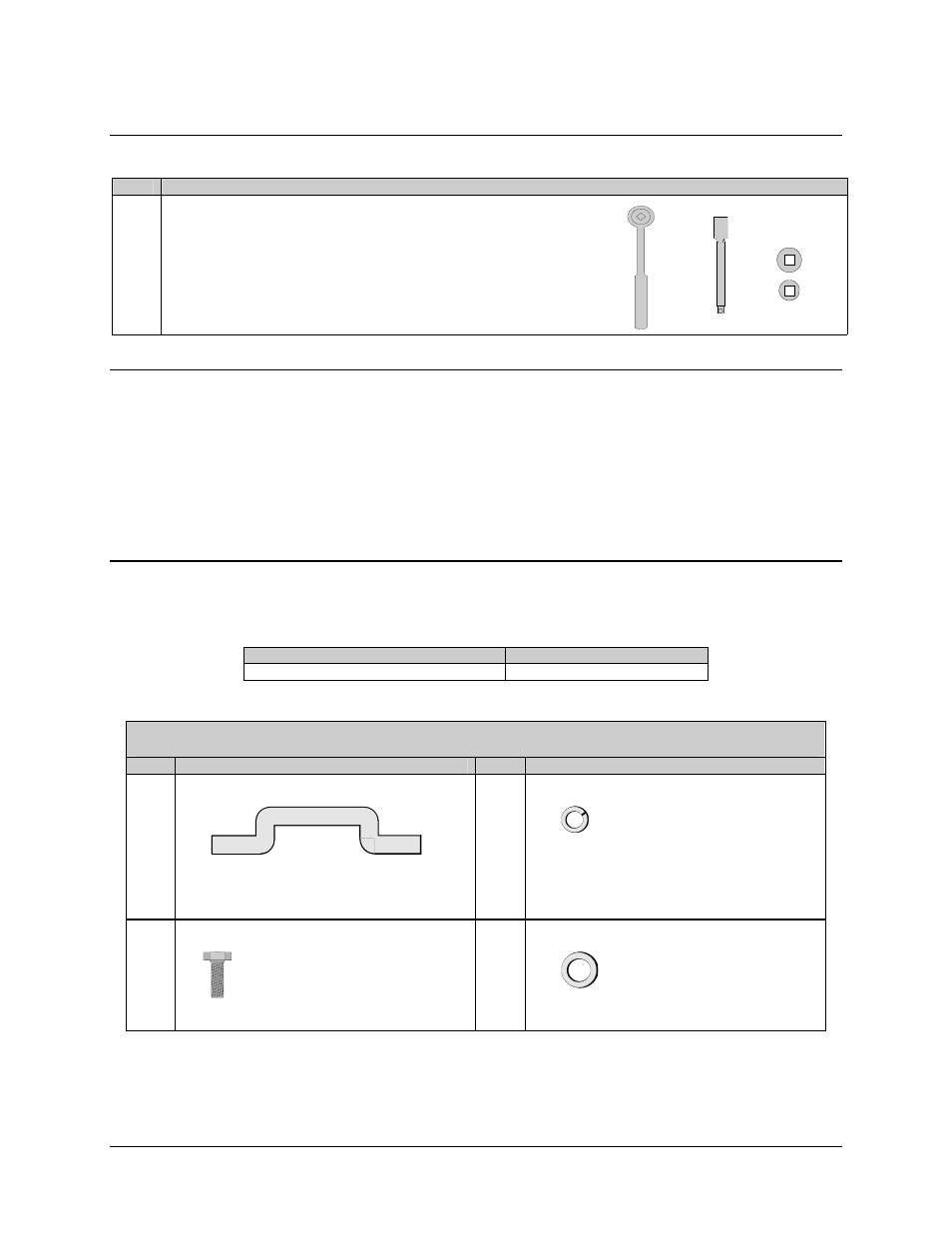

6.1 Tools Required
Qty. Description
1
1
1
1
1
1
3/8” drive ratchet.
Adjustable wrench.
7/16” x 3/8” drive socket, or 7/16" drive wrench.
(Metric equivalent: 12mm, 6 pt.)
1/2” x 3/8” drive socket, or 1/2" box wrench.
(Metric equivalent: 13mm, 6 pt.)
5/16" box wrench, or nut driver
7/64" Allen wrench
6.2 Converter Unit Installation
The following information describes the steps performed and optional hardware required
for installing the converter unit on an antenna spar arm or a pole.
6.2.1 Spar Arm Mount
6.2.1.1 Optional Spar Arm Installation Kits for Converter, SSPA, and
LNB
Antenna Type Mounting Kit Kit Part Number
KST-2000A/B Converter Only KT/8324-1
Kit KT/8324-1 include:
Qty. Description Qty. Description
2 Spar support bracket. (Spar Mount Only)
Comtech EF Data Part #s:FP/3175
4 1/4” split washer.
Comtech EF Data Part #:HW/1/4-SPLIT.
4 1/4-20 x 1” bolt.
Comtech EF Data Part #:HW/ 1/4-20x1-BLT
4 1/4” flat washer.
Comtech EF Data Part #:HW/1/4-FLT.
6–2
