HEARTH ACCESS AND ASSEMBLY
Removing Top Louver Trim Panel
1. Grasp the two hanger brackets at the bottom and pull up until
the hanger brackets release from the door pins. (see Figure 54).
2. Swing out the bracket ends until the upper panel tabs can be
angled out of the slot openings in the upper face frame.
3. Pull the entire louver trim panel out of the face frame.
Removing Lower Louver Access Panel
1. Grasp the lower louver panel and pull up until the hanger
brackets release from the door pins (see Figure 53).
2. Swing the louver panel out until it clears the fireplace opening.
3. Pull the entire panel out until the bottom tabs are free of the slot
openings in the lower face frame.
HEARTH ACCESS AND ASSEMBLY
Removing Lower Louver Access Panel
Removing Top Louver Trim Panel
Removing/Replacing Glass Door
Door
Pin
3. Pull
Out Panel
Lower Louver
Access Panel
2. Swing
Out Panel
1. Lift
Up Panel
Hanger
Bracket
Door
Pin
3. Pull Out
Panel Tabs
2. Swing
Out Brackets
1. Lift
Up Panel
Hanger
Bracket
Top Louver
Trim Panel
Panel Tabs

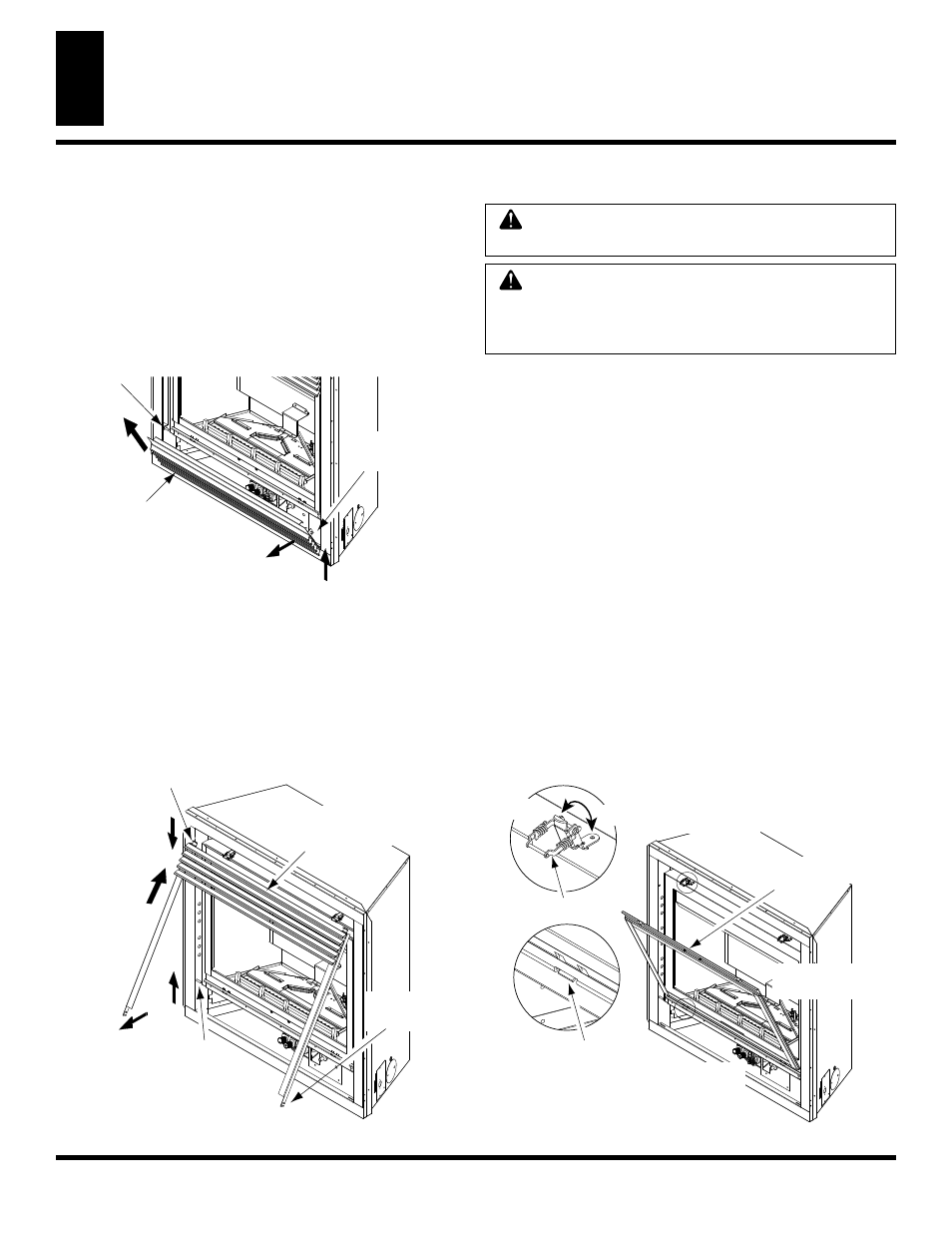

Figure 53 - Removing Lower Louver Access Panel
Figure 54 - Removing Top Louver Trim Panel
WARNING: If fireplace has been running, turn off
and let cool before accessing or servicing the unit.
WARNING: Handle glass door panel with care. Do
not strike, slam, or otherwise abuse glass. Do not
operate fireplace with glass door removed, cracked,
or broken.
Removing/Replacing Glass Door
If replacement of glass is necessary, the entire assembly, glass and
frame, must be replaced. Ifglass is broken, wear gloves and tape the
remaining fragments onto the frame.
1. Remove the lower louver panel (see Removing Lower Louver
Access Panel, Figure 53).
2. Remove the top louver trim panel (see Removing Top Louver
Trim Panel, Figure 54).
3. Hold the glass frame with one hand and with the other hand
unlock the two door latches found on top of the firebox to
release tension on the door frame (see detail Figure 55).
4. Unhook the locking clasp from the tabs on the door frame and
with both hands swing the door panel out while pivoting the
lower frame on the lower retaining bracket.
5. Lift the lower frame tabs out from the positioning slots found
on the lower frame retaining bracket (see detail Figure 55).
6. Remount the new frame in reverse order by placing the posi-
tioning tabs on the glass frame into the slots in the retaining
bracket then swinging the door into the sealed position and
locking the two latches in place.
7. Replace the top louver panel and then the lower louver panel.
Door Panel
Lock
Unlock
Door
Frame Tab
Latch
2. Swing
Out Panel
3. Lift Out
Door Tabs
1. Unlock
Door Latches
Figure 55 - Removing/Replacing Glass Door
