VENTING INSTALLATION INSTRUCTIONS
Installation for Vertical Terminations Cont.)
Parts Lists for Venting Kits Components
VENTING INSTALLATION
INSTRUCTIONS
Continued
Vertical Venting
V = 40' max.
Note: Install
restrictor ring
into inner pipe
section prior to
attaching vent
termination cap.

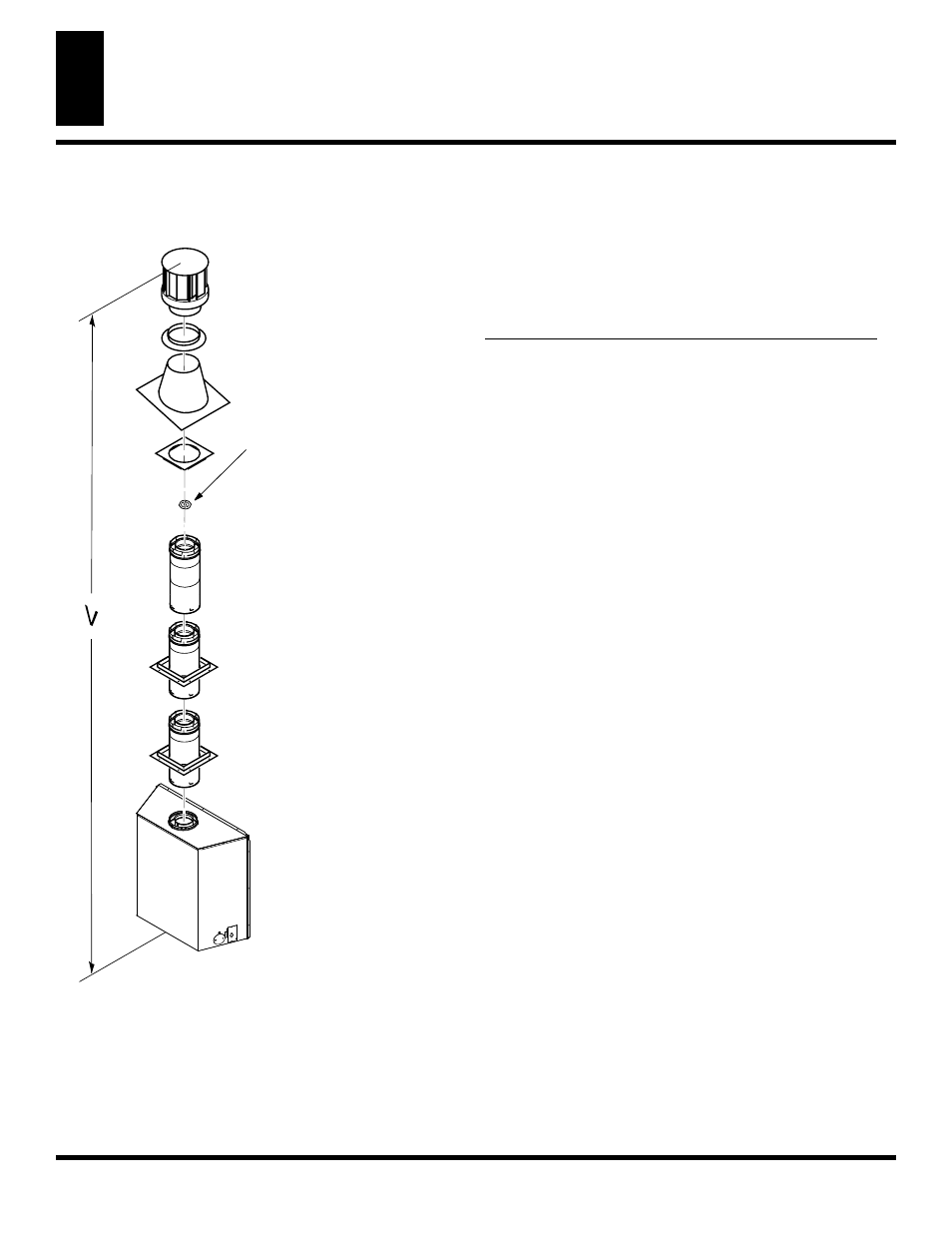

Figure 31 - Vertical Venting Configuration with No Horizontal Run
(Model (V)CD36T with Vertical Round High Wind Termination)
PARTS LISTS FOR VENTING KITS AND
COMPONENTS
DESA (5/8”) Pipe & Vent Kits
Number Description
P58-6 6” Section Double Wall Pipe Galvanized
P58-12 12” Section Double Wall Pipe, Galvanized
P58-24 24” Section Double Wall Pipe, Galvanized
P58-36 36” Section Double Wall Pipe, Galvanized
P58-48 48” Section Double Wall Pipe, Galvanized
PA58-712 Adjustable 7”-12” Section Double Wall Pipe, Galva-
nized
FPA58-6 6” Duravent Collar to FMI Pipe Adaptor (6” Collar/
Pipe Section)
DPA58-6 6” FMI Collar to Pipe Duravent Adaptor (6” Collar/
Pipe Section)
E58-45 45° Elbow, Galvanized
E58-90 90° Elbow Galvanized
FSE58-45 45° Starter Elbow, Galvanized (Duravent Collar to
FMI Pipe)
DSE58-45 45° Starter Elbow, Galvanized (FMI Collar to Dura-
vent Pipe)
VKG-58 Ground Floor Vent Kit
VKB-58 Basement Vent Kit
VKC-58 Corner Vent Kit
VKS-58 Snorkeo Vent Kit
VKC-58 Corner Vent Kit
HTK Horizontal Round Termination Kit
HT-58 Horizontal Round Termination, Galvanized
HTKS-58 Horizontal Square Termination, Galvanized
VT-58
Vertical Round Termination, Galvanized
ST-58-14 14” Snorkel Termination, Galvanized
ST-58-36 36” Snorkel Termination, Galvanized
SC-58
Storm Collar, Galvanized
WF-58 Wall Firestop, Galvanized
RF-58-6 Roof Flashing - 0 to 6/12 Pitch, Galvanized
RF-58-12 Roof Flashing - 6/12 to 12/12 Pitch, Galvanized
VR-58
Vertical Restrictor, Galvanized
WS-58 Wall Strap
CS-58 Cathedral Ceiling Support
FP-58 Firestop Plate
SF-58 Stucco Flashing - For use with HTS-5
