20

www.desatech.com

116035-01B

INSTALLING OPTIONAL CONTROLS

Installing Optional Wall Mount Switch - GWMS2
Installing Optional Wireless Hand-Held Remote Control - GHRC and GHRCT Series

INSTALLING OPTIONAL WALL MOUNT
SWITCH - GWMS2

INSTALLING OPTIONAL CONTROLS

1. Connect one terminal of 15 ft. wire from the wall switch to the

TPTH terminal on the valve. Connect remaing wire terminal

to the TH terminal on the valve. Make sure that the wire termi-

nals are in the positions on the unit as pictured in Figure 41. If

wires are not connected as shown the switch will not work.

2. Route the 15 ft. wire through hole openings with bushings

provided on either side of the fireplace cabinet.

3. Connect one bare wire end to each of the terminals of the

GWMS2 wall switch.
4. Install the wall switch and cover in the wall.
IMPORTANT:

Do not use any other wire than that provided with

the GWMS2 wall switch kit. Do not exceed 15 ft. of distance from the

valve connection. Using wire of higher gage or turns or exceeding

the minimum distance will increase resistance at the control valve

causing unreliable performance of the fireplace controls.

To Optional
Remote Receiver
or a Wall Switch
Accessory

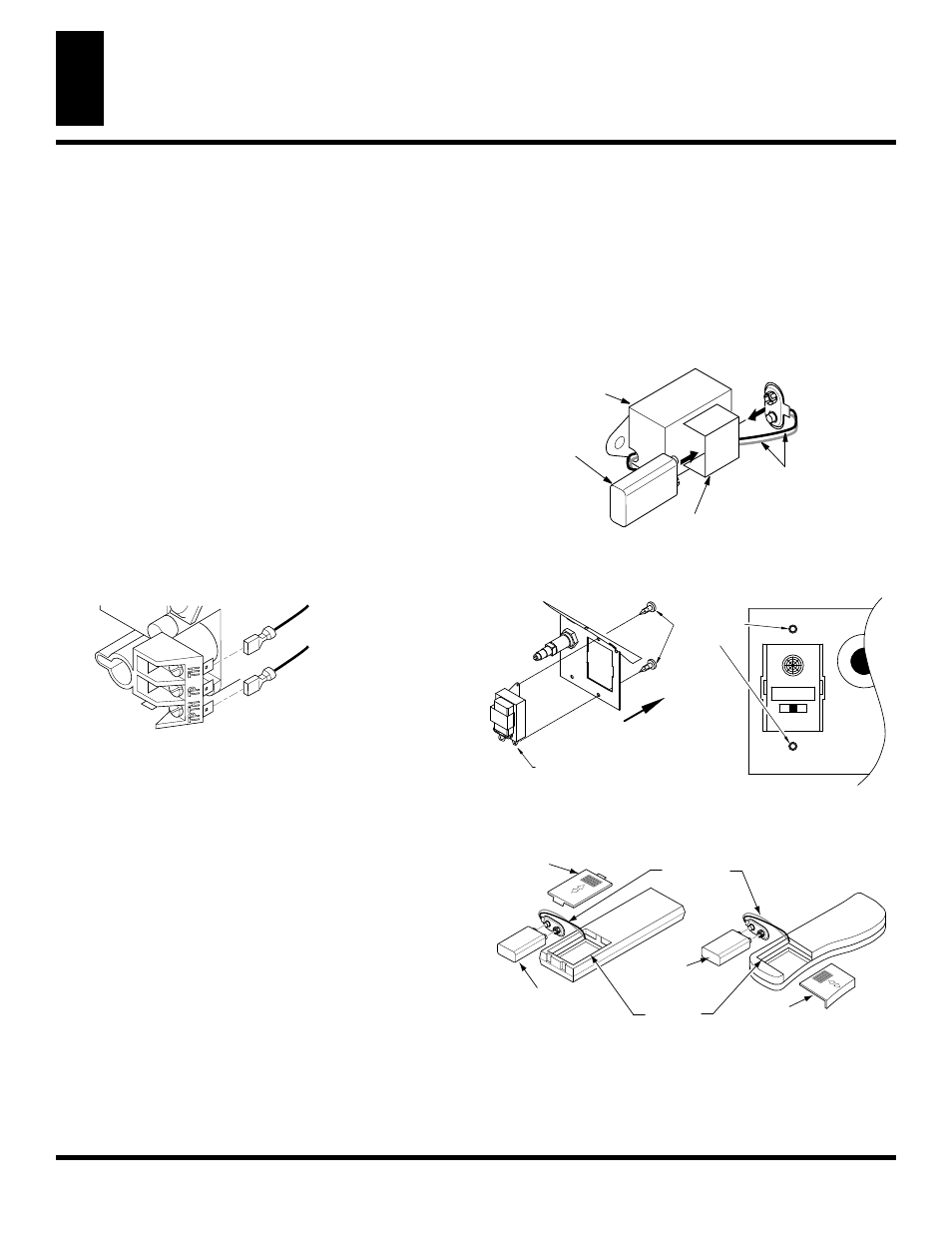

Figure 41 - Connecting Remote Receiver or Wall Switch to

the Gas Control Valve

INSTALLING OPTIONAL WIRELESS HAND-HELD
REMOTE CONTROL - GHRC AND GHRCT SERIES

Installing Remote Receiver
1. Open bottom louver and locate the switch bracket on the right
2. Locate the battery clip mounted on the back of the receiver.

Slide a 9-volt alkaline battery (not included) through the clip
3. Attach the terminal wires to the battery. (see Figure 42).
4. Connect wires from receiver to TH and TPTH to control valve

(see Figure 41).

5. Locate the two plastic mounting clips provided with the kit.
6. Use the clips to mount the receiver on remote mounting bracket.

as shown in Figure 43.

RECEIVER

REMOTE

TOWARDS FRONT

PLASTIC

CLIPS

MOUNTING

REMOTE ON OFF

Battery

Housing

9-Volt Alkaline

Battery

Terminal

Wires

Battery

Cover

GHRCB Remote Control

Battery

Cover

GHRCTB Remote Control

9-Volt

Alkaline

Battery

Figure 43 - Mounting Remote Receiver to Bracket

Figure 44 - Installing Battery in Hand-Held Control Unit

(GHRCTB Series)

Installing 9-Volt Alkaline Battery in Hand-Held Remote

Control Unit
1. Remove battery cover on back of remote control unit.
2. Attach terminal wires to a 9-volt alkaline battery (not included).

Place battery into the battery housing. (see Figure 44).
3. Replace battery cover onto remote control unit..

9-Volt Alkaline

Battery

Receiver

Terminal Wires

Battery Clip

Figure 42 - Attaching Alkaline Battery to Receiver
