Commissioning/Configuration

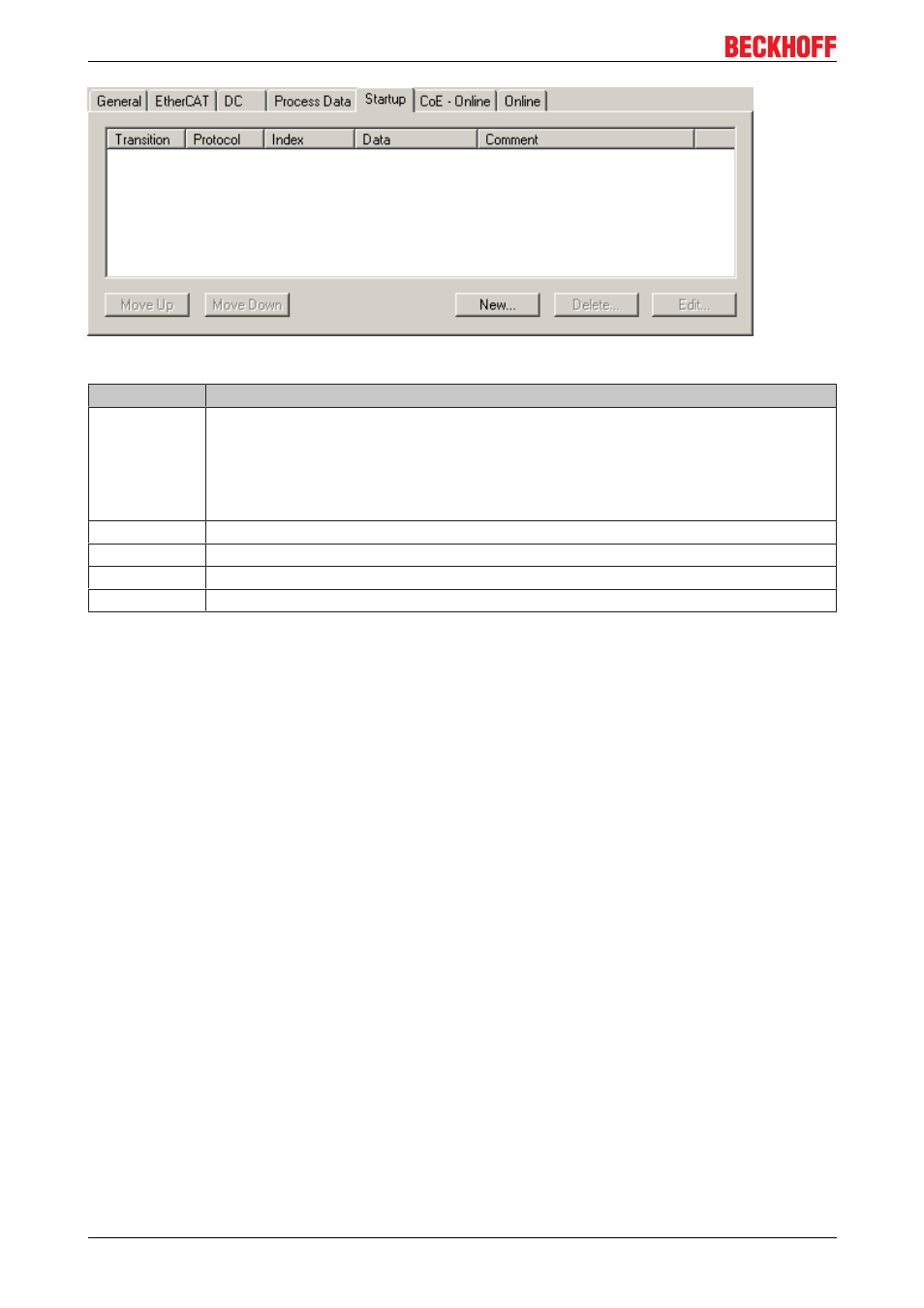

Fig. 63: Startup tab
Column Description
Transition Transition to which the request is sent. This can either be
• the transition from pre­operational to safe­operational (PS), or
• the transition from safe­operational to operational (SO).
If the transition is enclosed in "<>" (e.g. ), the mailbox request is fixed and cannot be
modified or deleted by the user.
Protocol Type of mailbox protocol
Index Index of the object
Data Date on which this object is to be downloaded.
Comment Description of the request to be sent to the mailbox
Move Up This button moves the selected request up by one position in the list.
Move Down This button moves the selected request down by one position in the list.
New This button adds a new mailbox download request to be sent during startup.
Delete This button deletes the selected entry.
Edit This button edits an existing request.
CoE ­ Online tab
The additional CoE ­ Online tab is displayed if the EtherCAT slave supports the CANopen over EtherCAT
(CoE) protocol. This dialog lists the content of the object list of the slave (SDO upload) and enables the user
to modify the content of an object from this list. Details for the objects of the individual EtherCAT devices can
be found in the device­specific object descriptions.
