Page 14
Product overview
2.4
EP10980001
2.4.1
EP1098 Introduction

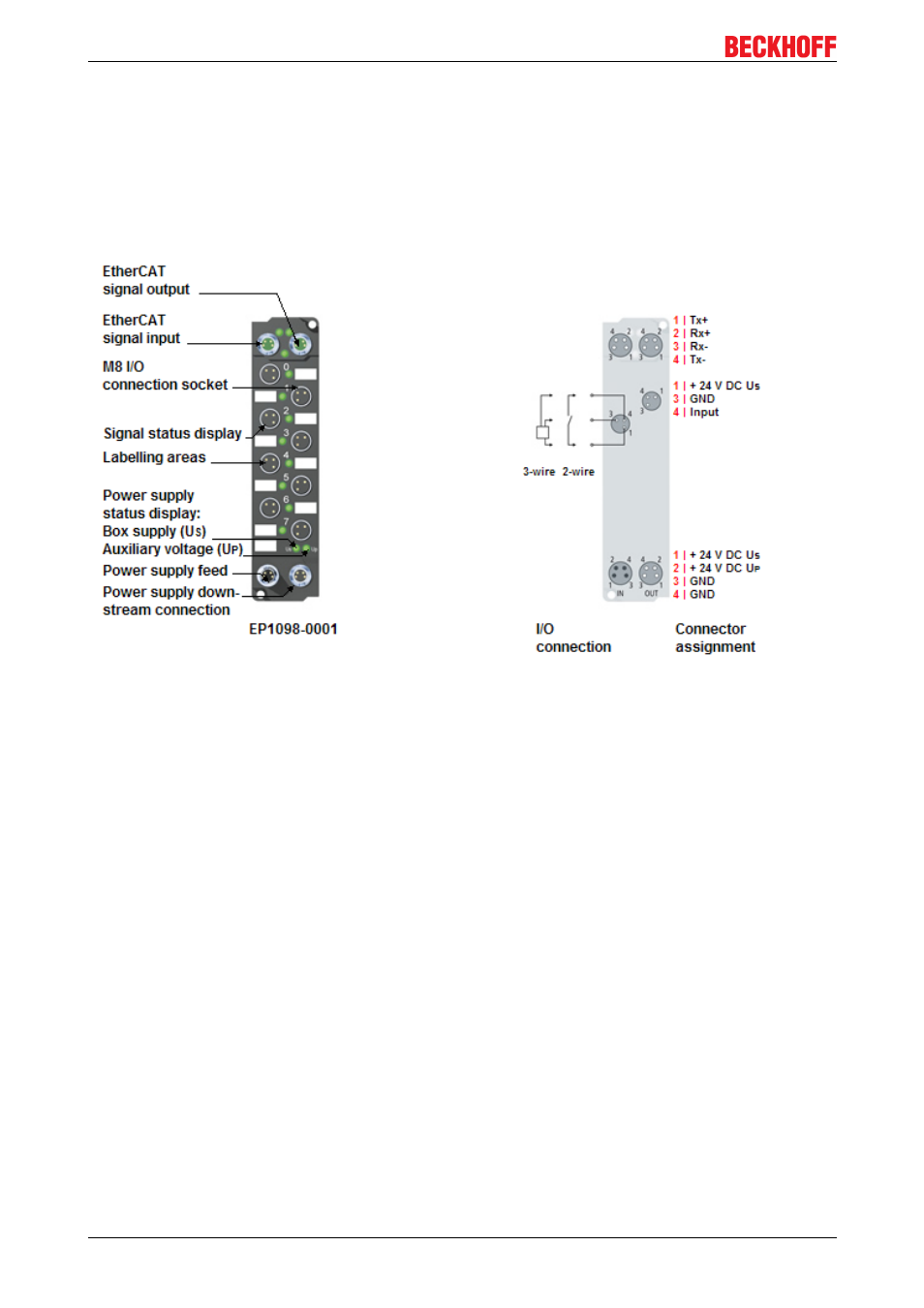

Fig. 6: EP10980001
8 digital inputs, 24 V
DC
, negative switching
The EP1098 EtherCAT Box modules with digital inputs acquire binary control signals from the process level,
and transfer them, electrically isolated, to the controller.
The status of the signal is displayed by light emitting diodes. The signal connection is made through M8
connectors (EP1098 0001) or M12 connectors (EP1098 0002).
The sensors are supplied from the control voltage Us. The load voltage Up is not used in the input module,
but may be connected in order to be relayed downstream.
Quick links
Installation
UL Requirements for UL approved modules
EP1xxx
14
Version 2.1.0
