Product overview
2.5
EP11110000
2.5.1
EP11110000 Introduction

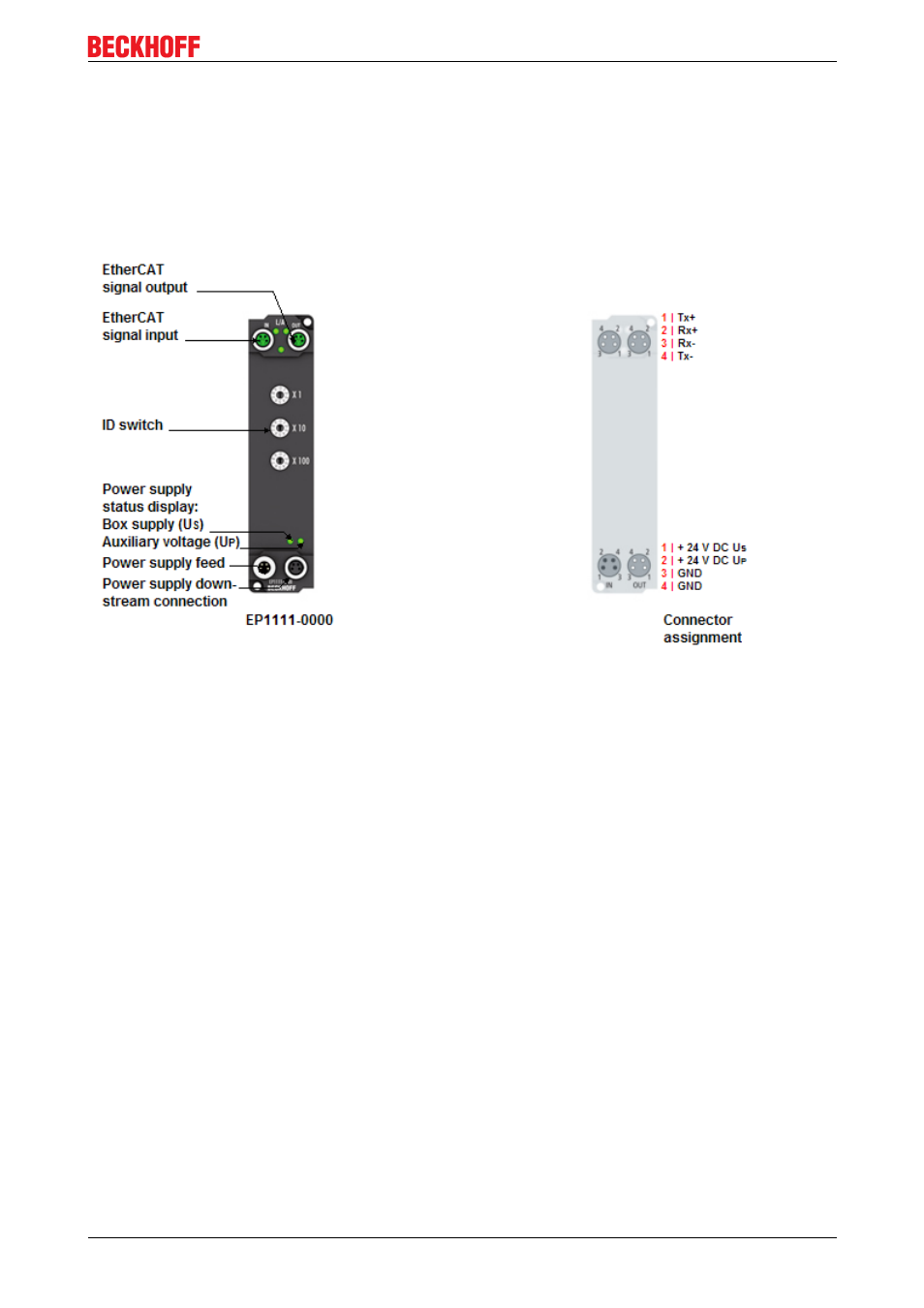

Fig. 8: EP11110000
EtherCAT Box with ID switch
The EP11110000 EtherCAT Box has three decimal ID switches, with which a group of EtherCAT
components can be assigned an ID. This group can be present in any position in the EtherCAT network, as a
result of which variable topologies can be realized in a simple manner.
The EtherCAT connection is established via shielded M8 connectors with direct display of link and activity
status. The Run LED indicates the status of the EP1111.
