Product overview
2.8
EP18160008
2.8.1
EP18160008 Introduction

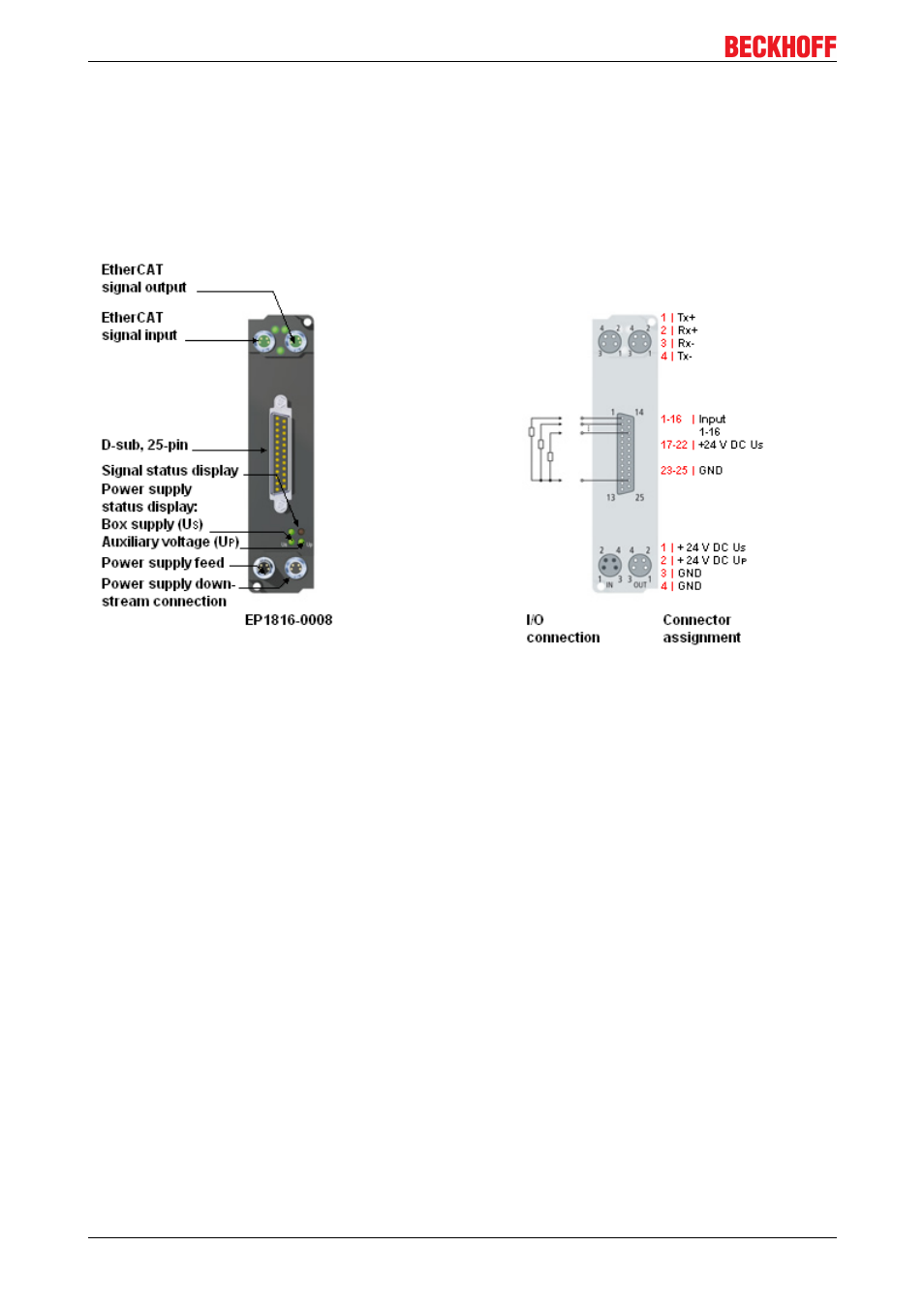

Fig. 15: EP18160008
16 digital inputs, 24 V
DC
The EP18160008 EtherCAT Box with digital inputs acquires binary control signals from the process level
and transfers them, with electrical isolation, to the controller. The signal status is indicated by light emitting
diodes; the signal connection is made through a 25pin SubD socket.
The sensors are supplied from the control voltage Us. The load voltage Up is not used in the input module,
but may be connected in order to be relayed downstream.
